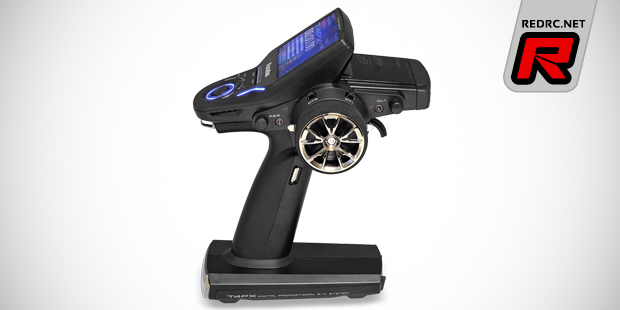

Futaba T4PX telemetry radio system

Futaba introduce the T4PX, the company’s latest top-of-the-foodchain radio system. Offering a completely new design compared to the 4PK series, the transmitter is around 15g lighter than the 4PKS-R with an aluminium frame being part of the body to make for a more rigid structure. The 2.4GHz radio makes use of Futaba’s T-FHSS, S-FHSS and FASST-C2 transmitting systems with the T-FHSS system response being 30 percent faster compared to the 4PKS-R’s. Incorporated into the case is a QVGA 3.5 TFT colour screen that allows to monitor all of the radio’s software features such as the the comprehensive mixing and telemetry functions. For sanctioned races all telemetry functions can be disabled. It is understood that the radio will become available by August.

Features:
– Completely new design
– Low steering position for a low centre of gravity
– 15g lighter than 4PKS-R
– All in one transmitter antenna
– 2.4GHz system – T-FHSS, S-FHSS & FASST-C2
– The Following receivers can be used with 4PX: R304SB, R304SB-E, R614FS, R614FF-E, R2104GF, R204GF-E & R203GF
– QVGA3.5 inch TFT colour LCD screen with perfect visibility under sunshine
– Sensor slot function (telemetry channel)
– Up to 31 sensors can be utilised
– Equipped with telemetry voice output
– Mixing function : 5 program mixing. 4WS mixing & Dual ESC mixing
– 40 model memory
– Left handed supported
– APA handle extension supported
– 25mm extension adapter
– Push type button power switch
– Auto-power off function
– Vibration motor
– Earphone jack
– New high-durability stick potentiometers
– Communication port (For setting ESC, servos, sensors)
– Micro SD card slot (SDHC)
– Updateable software
– High-point detectable throttle trigger
– Throttle trigger  movable by 7mm
– Throttle trigger shape is optimised as well as stiffness is increased
– Combination steering rubber
– Steering angle can be selected (32 degree and 43 degree)
– Telemetry “disabled” LED
– Two different types of throttle triggers are included (can be easily changed by a screw)

Source: Futaba [futaba-rc.com] via Minicars.se [minicars.se]
