April 29, 2016

Team Associated announce the B6 platform

AssoB6-7

Having been teasing a new 2wd buggy over the past week on social media, Team Associated have finally announced the new B6 and B6D 2wd buggies. Out of the box, the B6 offers racers a setup developed for high to very-high traction, whereas the B6D excels when traction is low to high. Racing at multiple tracks, or where traction changes throughout the day, has never been easier; setups and tuning parts are interchangeable between the two configurations, making the B6 platform extremely versatile. The most obvious differences between both cars is the transmission with the B6 featuring a laydown 3 gear transmission with lower CG and reduced polar moment while the Dirt version has a standup 3 gear transmission with the weight more to the rear for increased rear traction. The B6 also comes equipped with a gear diff as well as gull wing arms and a wide front tower for increased on power steering where as the B6D is equipped with ball diff, flat arms and a narrow front tower for more responsive steering and quicker release out of the corner.

AssoB6-5

More RC10B6 and B6D Features:
– Hard-anodized aluminum pocketed chassis included. Optional weights (not included) allow weight bias tuning.
– Reverse bell-crank steering rack design allows more room for electronics
– Centralized motor positioning for optimum side-to-side balance
– Repositioned A plate provides maximum front end clearance
– One-piece steering blocks with bolt on Ackermann plate
– Lightweight and durable aluminum C plate and aluminum ball stud mount
– Updated ball cups and turnbuckles for precise adjustments and durability
– Adjustable battery hold-down strap allows weight bias tuning
– Aluminum front axle and rear hexes for less rotating mass and long-lasting durability
– V2 12mm “Big Bore” threaded aluminum shocks with 3mm TiN coated shafts and low friction x-rings for improved smoothness
– Factory Team Aluminum Shock Bushings provide stable shock mounts
– Heavy-duty rear axle for added strength
– Factory Team upgraded ball bearings
– Team Associated clear body and screw-mounted wing by JConcepts
– RC10B6 only: Ability to mount shocks on front or rear of rear arms
– RC10B6D only: 4-gear standup transmission available as option

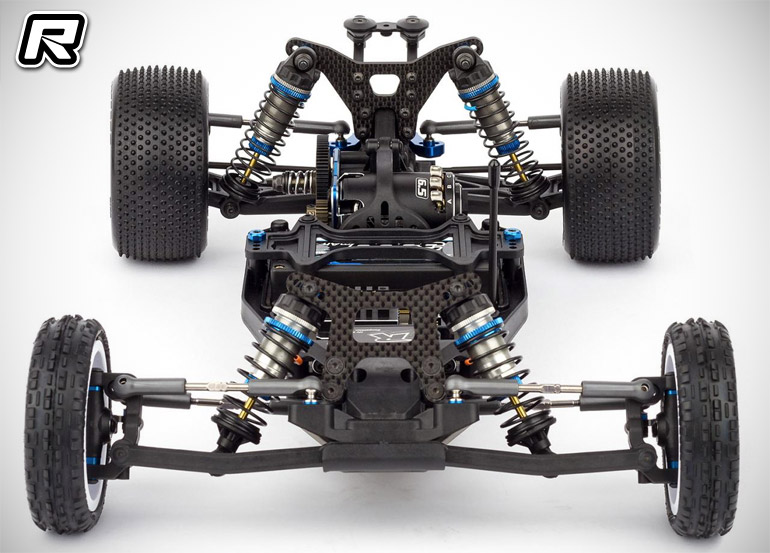

AssoB6-4

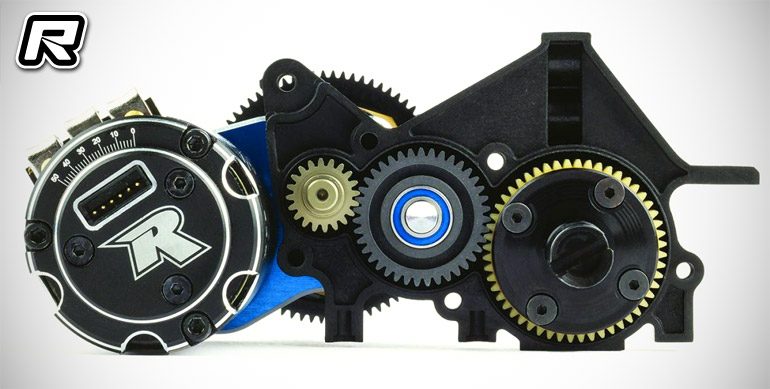

AssoB6-3

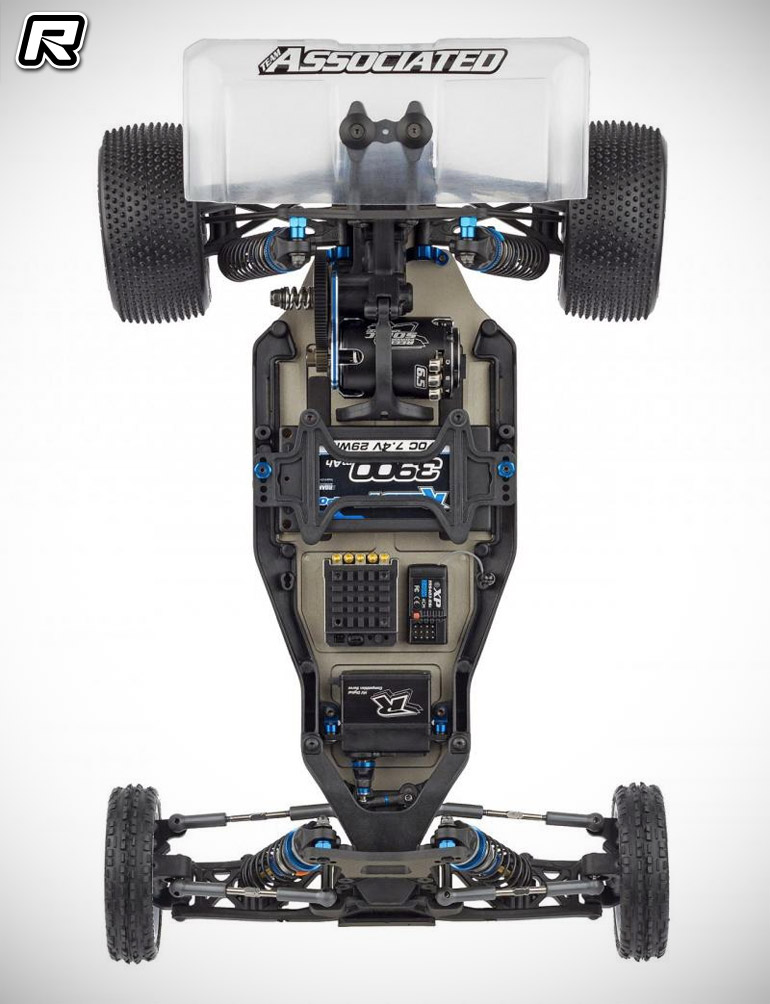

AssoB6D-6

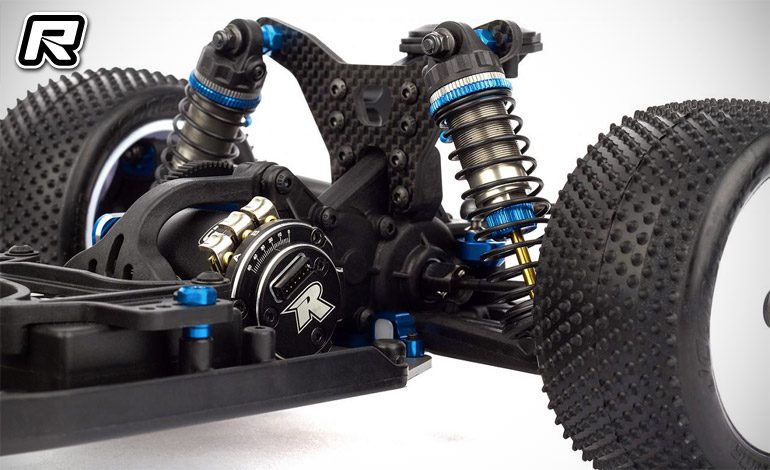

AssoB6-2

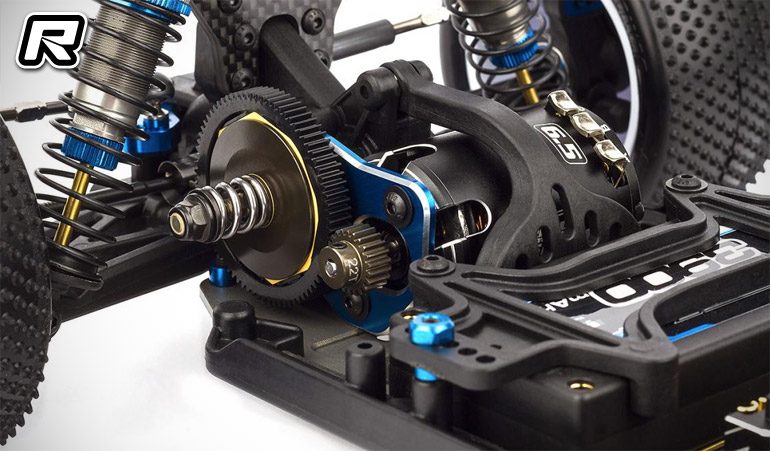

AssoB6-1

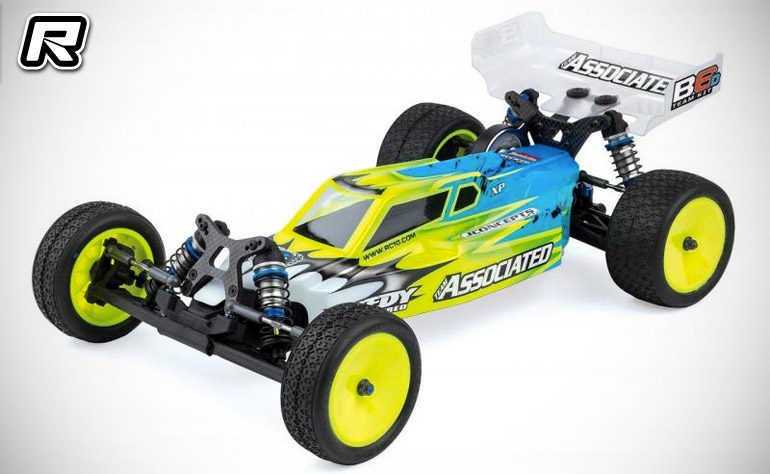

AssoB6D-7

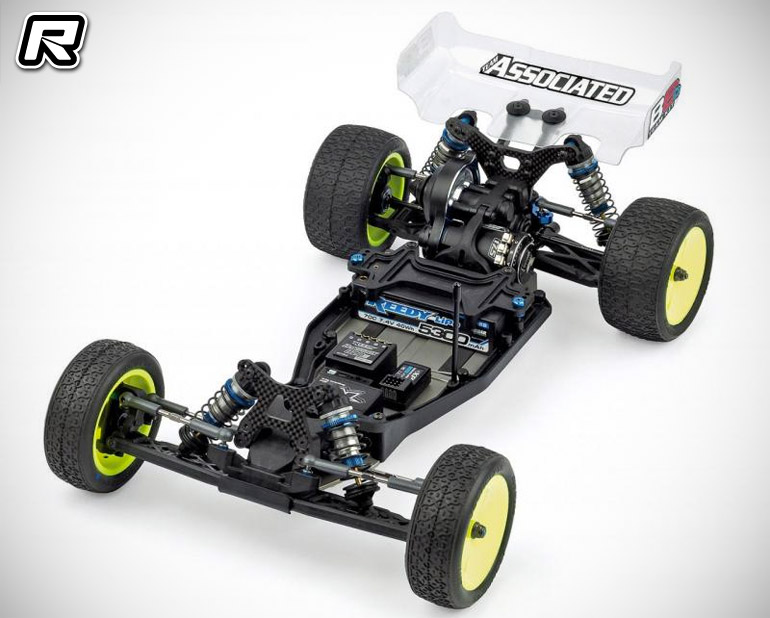

AssoB6D-5

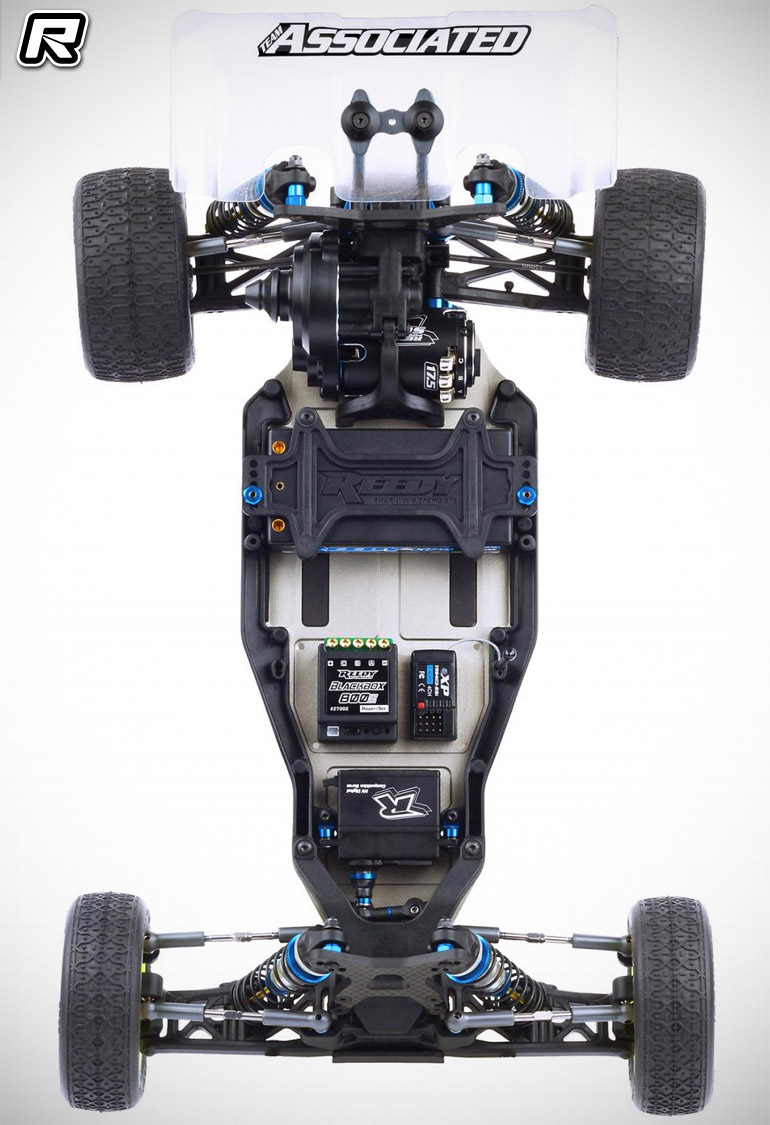

AssoB6D-8

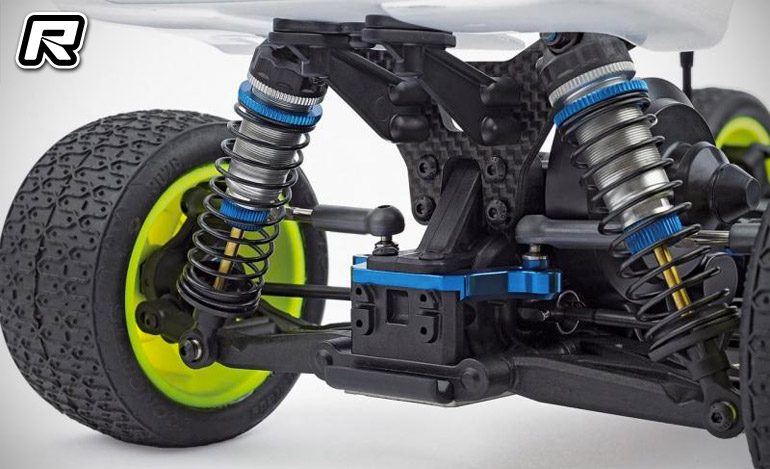

AssoB6D-4

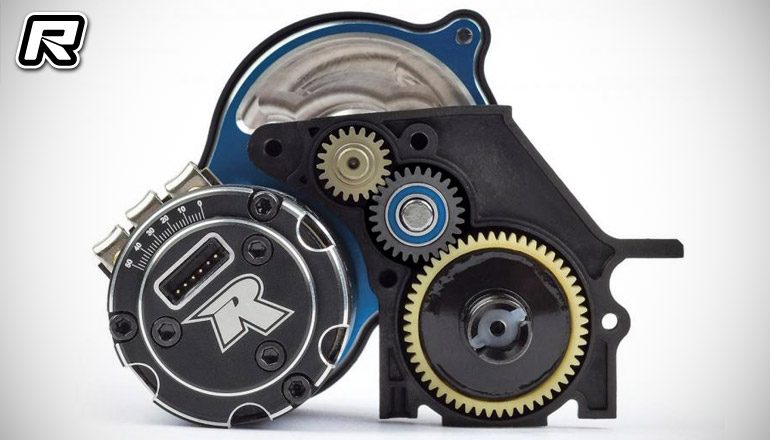

AssoB6D-3

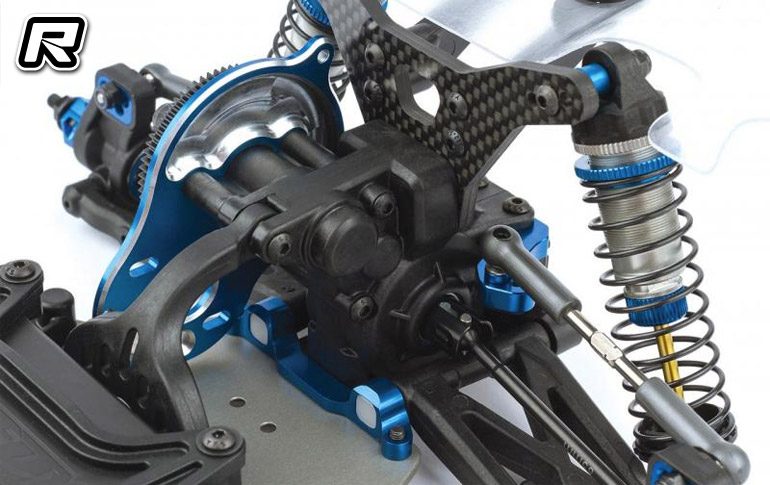

AssoB6D-2

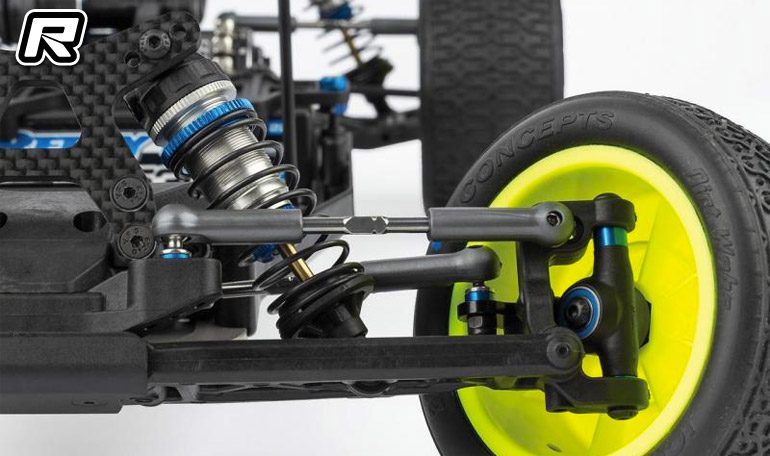

AssoB6D-1

Source: Associated [teamassociated.com]
