February 1, 2017

Xpress Xpresso M1 M-type RWD chassis kit

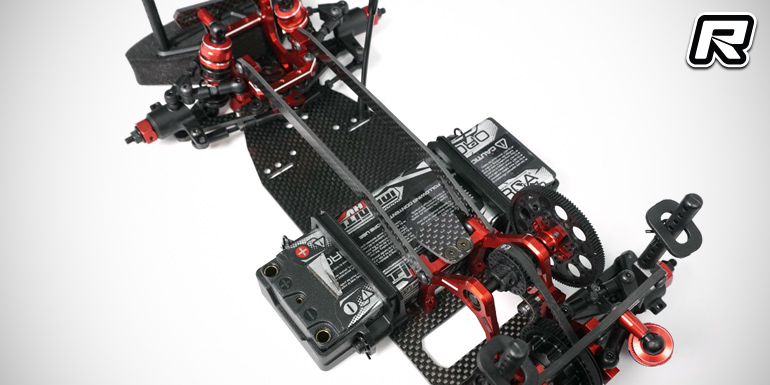

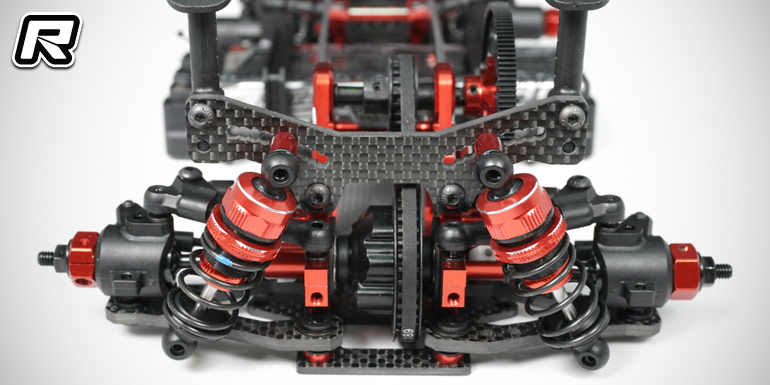

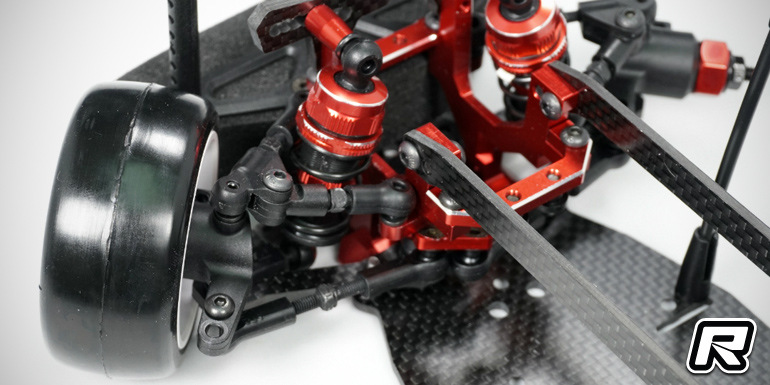

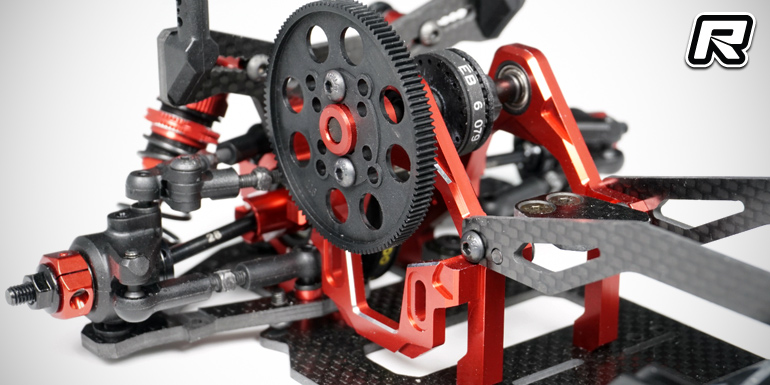

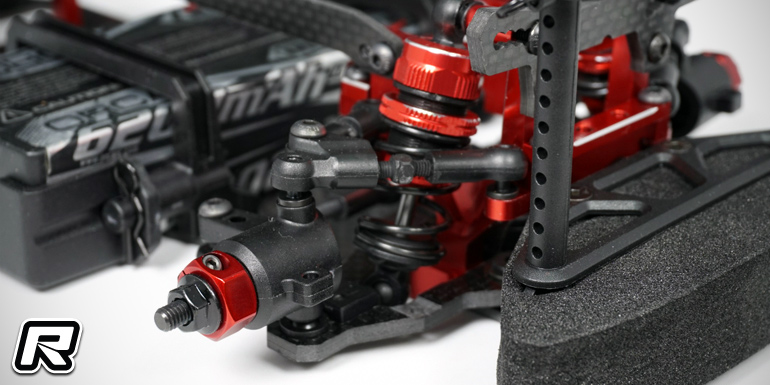

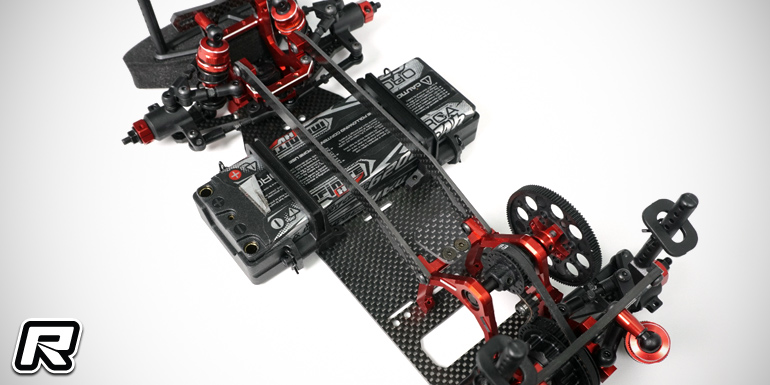

Coming from Xpress is the Xpresso M1 M-type 2WD rear wheel drive kit. Sporting “M-Chassis” dimensions the race-oriented kit features a full carbon fibre double deck construction, carbon fibre A-arms, adjustable upper links, a touring car sized rear gear differential and a belt-driven transmission. A centred and front-mounted steering servo makes for massive steering throw and a reactive toe rear suspension system ensures a nimble handling and exceptional traction and side-bite. The car is usable with shorty or standard-size LiPo battery packs that can be mounted in a front or rearward position. The car is compatible with all 210mm M-Chassis bodyshells.


Features:
– Fully adjustable upper suspension arms, adjustable camber and caster without changing parts
– Servo mount integrated into the front bulkhead
– C-Hub less design means less parts to keep and able to achieve a large enough steering angle for RWD drifting
– 1/10 touring car sized differential
– Carbon fibre lower arms
– Parallel topdeck for high on-power grip towards the rear wheels
– One piece motor mount and rear bulkhead
– Adjustable battery mount for both regular and shorty packs
– Features two battery positions
– Carbon fibre gyro mount near the rear for controlled RWD drifting
– 116T 64 pitch spur included
– Compatible Bodies: 210mm M-Chassis Bodies

Source: Xpress [rc-xpress.com]
