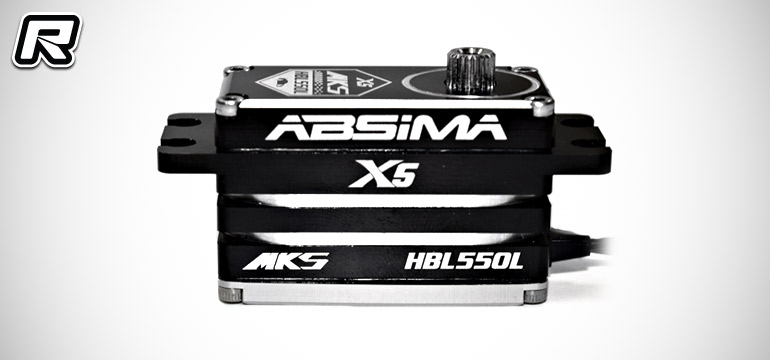

Absima MKS X5 HBL550 & HBL550L servos

Absima have introduced their new Absima MKS X5 HBL550 standard and HBL550L low-profile servos. Designed for no compromise competition applications the HBL550 (0.085s/38kg-cm) and HBL550L (0.06s/15kg-cm) both utilise machined all-aluminium cases with heatsink middle sections, powerful yet efficient brushless motors, sturdy metal alloy geartrains for durability and dual ball bearings for precision. The HBL550 standard size servo, best used in 1/8th and 1/10th nitro applications, is usable with 6V to 8.2V input while the HBL550L low-profile servo, ideal for 1/10th buggies and touring cars, has a 4.8V to 7.4V voltage range. Both servos sport black receiver wires for pro looks and they are available from now on.

HBL550 specifications:
– Operating speed (no load): 0.117s/6.0V; 0.094s/7.4V; 0.085s/8.2V
– Stall torque: 29kg-cm/6.0V; 36kg-cm/7.4V; 38kg-cm/8.2V
– Idle current (locked): 310mA max/6.0V; 380mA max/7.4V; 420mA max/8.2V
– Stall current (locked): 9.0A/6.0V; 11.0A/7.4V; 12.0A/8.2V
– Dimensions: 40x20x38.8mm
– Weight: 79.5g
– Motor Type: Brushless motor
– Bearing type: Dual ball bearings
– Gear: Metal alloy gear
– Case: 6061 aluminium
– Wire: 29cm/22AWG

HBL550L specifications:
– Operating speed (no load): 0.09s/4.8V; 0.07s/6.0V; 0.06s/7.4V
– Stall torque: 9.0kg-cm/4.8V; 12.0kg-cm/6.0V; 15kg-cm/7.4V
– Idle current (locked): 270mA max/4.8V; 340mA max/6.0V; 420mA max/7.4V
– Stall current (locked): 4.1A/4.8V; 5.1A/6.0V; 6.3A/7.4V
– Dimensions: 40.5×20.5×25.4mm
– Weight: 58.5g
– Motor Type: Brushless motor
– Bearing type: Dual ball bearings
– Gear: Metal alloy gear
– Case: 6061 aluminium
– Wire: 20cm/22AWG

Source: Absima [absima.com]
