October 22, 2009

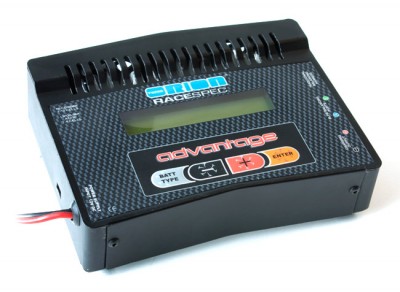

Team Orion Advantage Race Spec charger

Team Orion Advantage Race Spec charger

The Team Orion Advantage Race Spec charger is the latest development of electric specialist Oscar Jansen. It features an optimized charging technology for LiPo batteries (1-4 cells), a technology that will show you the real potential of your batteries delivering maximum capacity, voltage and lifespan. The Pro Spec charger also charges and discharges LiFe (1-4 cells), NiMH (1-10 cells) and NiCd (1-10 cells) batteries with up to 10 Amps.

Team Orion Advantage Race Spec charger

Key Features
– Microprocessor controlled advanced digital circuit
– Charging Mode: fast charge, CC/CV and special storage mode
– Charging Capability: NiMH/NiCd 1-10 cells, LiPo/LiFe 1-4 cells
– Charge current: adjustable 0.2-10A (variable with number of cells)
– Balancing: adjustable on/off
– Delta peak: adjustable 0-20mV
– Discharge Current: adjustable 0.1-10A (variable with number of cells, 75W max)
– Discharge Cut-off Voltage: adjustable
– User Profile Memory: 10
– Display: Laser Blue LCD
– Multi-Protection System: Input and output reverse polarity protection
– Input Voltage: 10-15 VDC
– Dimensions: 155x120x50mm
– Weight: 702gr

Team Orion Advantage Race Spec charger

Source: Team Orion [teamorion.com]
