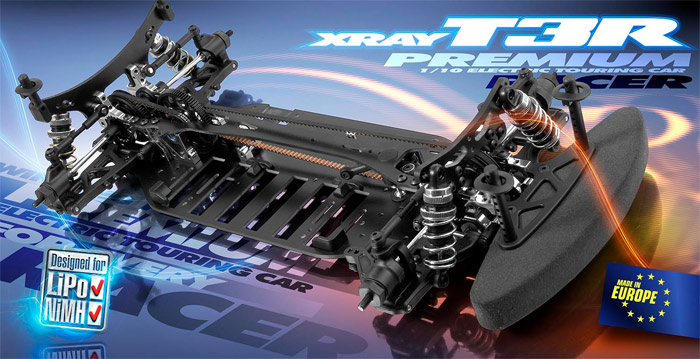

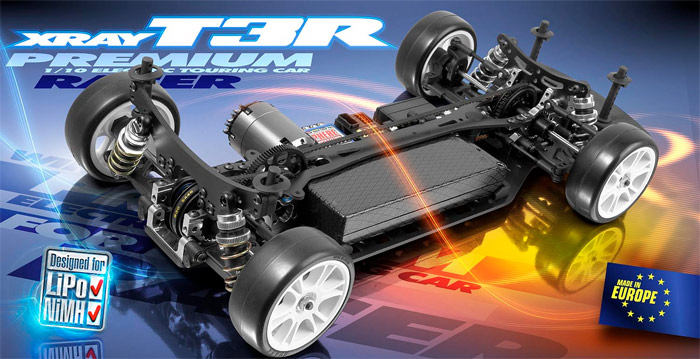

Xray T3R electric touring car

Xray have introduced the all-new T3R, the latest release from their design studios. The T3R represents the latest evolution of the successful Raycer concept, luxury at an affordable price. Based on their top end T3 platform, it utilizes a LiPo & NiMh multi purpose-designed platform, with the unique ray alternative drive-line configuration for perfect weight balance with either type of battery and electronics layout.

T3R Features
– Based on the ultra-successful T3 platform
– LiPo & NiMh multi purpose-designed platform
– Unique XRAY Alternative Driveline Configuration™ for perfect weight balance with either LiPo or NiMH batteries and electronics layout
– Front & rear diffs and transmission belts can be quickly & easily oriented to either the left or right side to balance the car for either LiPo or NiMH use.

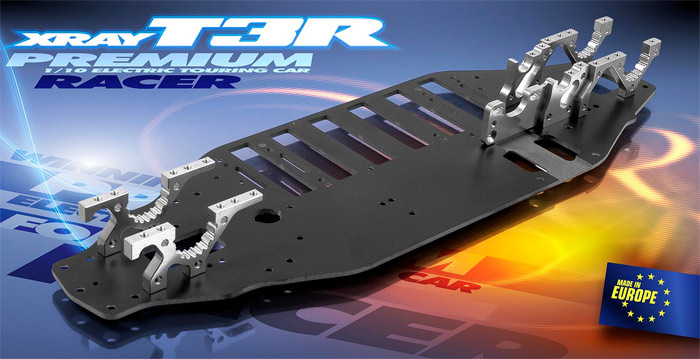

– All-new suspension holder system allows suspension arms to be mounted independently from the diff bulkheads
– All-new direct independent suspension alu holders mounted directly to the chassis allow for prolonged chassis flex thus generating more traction.
– Independent suspension holders allow for more precise and fine set-up adjustments with the use of different-thickness shims
– New motor mount has been purpose-designed for brushless motors, placing the motor 3mm more towards the centerline
– New aluminium rear suspension holders positioned towards the centerline results in narrower rear track-width and more rear traction
– Rear aluminium rear suspension holders feature integrated toe-in
– All-new 1-piece top deck features unique layshaft composite holders to allow the top deck to be mounted to the rear bulkheads independently from the central layshaft bulkheads
– New 1-piece top deck provides new and improved XRAY Multi-Flex™ adjustment possibilities to eliminate chassis flex adjustment; all flex adjustment is performed via the top deck Multi-Flex™ adjustments
– Optimized top deck Multi-Flex™ adjustment possibilities allow for super-fast and easy adjustment of car handling for all different racing conditions
– The design of the top deck moves the flex point from the front and rear of the top deck to the center, providing more steering and increasing responsiveness
– New 2.5mm chassis moves the battery position further back for more steering. The battery slots are 4mm-wider allowing the battery position/balance to be changed depending on the number and type of batteries used
– New motor holder connects the motor mount bulkhead to the center of the chassis, this transfers the flex effect of the motor mount into the absolute centerline of the chassis
– Layshaft bulkheads are independently mounted from the top deck for better flex adjustment
– Layshaft bearings are secured to the bulkheads with new plastic holders
– New higher bulkheads raise the top deck for perfect LiPo fitment
– New servo saver eccentric position for improved steering response
– New 38/20T (1.9) internal gearing for improved drivetrain efficiency and performance
– New more eccentric front and rear roll center holders with more inner camber link positions for better balance and handling
– New updated front steering blocks provide increased steering angle for more steering and higher cornering speeds
– New modified rear arms with extra roll bar positions for better roll balance on high-traction tracks and more precise anti-roll bar adjustment
– Two different battery plastic holders specially for LiPo and specially for NiMH batteries
– New thinner antenna holder with new placement position to allow for a more centrally-located receiver
– New front and rear shock towers with optimized roll center positions
– New lighter, black-anodized Swiss 7075 T6 aluminium turnbuckles
– Majority of spare parts & option parts compatible with T3 platform

T3 Main Features
– Super lightweight Swiss 7075 T6 aluminium front & rear drive shafts
– Drivetrain featuring 38T/20T (1.9) pulleys
– Reduced sensitivity to changing track conditions, giving super-consistent performance during runs
– Centered lay shaft and split bulkheads provide optimum balance thanks to perfect weight distribution of the motor towards centerline, giving quicker left-right transitions
– Ultra-light bulkheads CNC-machined from premium Swiss 7075 T6 aluminium
– Motor mount bulkhead features the lowest possible motor position, compatible with stock, modified, and brushless motors
– Super-light composite front Solid Axle with XRAY’s own smart quick-change outdrive system for easy outdrive exchange; no servicing or replacement of drive shaft blades needed, translates into reduced servicing costs
– Servo saver positioned in absolute centerline of the chassis
– Aluminium center top deck mount specially designed to decrease front suspension traction and eliminates front tire overheating to ensure consistent handling throughout runs
– Independent front and rear diff height adjustment
– Long front & rear suspension arms for improved traction and easier handling feature optimized shock mounting positions
– Suspension arms feature integrated anti-roll bar mounts; rear arms feature three different anti-roll bar mounts for super-fine adjustment of the rear anti-roll bar
– C-hubs with large openings for quick and easy assembly/disassembly of the CVDs; prevents collision of CVD with C-hub in serious crashes (compatible for the ECS drive shafts)
– C-hubs available in standard caster angles (2°, 4° and 6°); available in two hardness’s
– Rear uprights with integrated 0° toe-in to prevent suspension geometry change in serious crashes
– Both front & rear shock towers machined from extra-thick fiberglass featuring Quick Roll Center™ positions and optimized shock absorber positions

Source: Xray [teamxray.com]
