August 11, 2011

Team Losi Racing 22T stadium truck

TLR22T

Following closely on the heels of the 22 Buggy Kit, the 22T Truck Kit will posses the same unique design of the 22 allowing it to be the first truck in the industry to include both a rear and mid motor completion option in the same kit. Having both of these options opens up the potential for the 22T because different parts of the country benefit from different chassis configurations, varying tracks styles and layouts as well as indoor vs. outdoor tracks. The 22 and 22T share a majority of the same parts with about only 15% of the total parts listing being new. The hard anodised aluminium chassis, stadium truck-length 12mm big bore shocks, adjustable front kick, oversized rear outer bearing, bolt-on camber blocks are just a few of the features that make the 22T different from the 22 buggy as well as a force to be reckoned with in 1/10-scale 2WD truck racing. Like the 22 buggy the 22T is packed full of innovation and expert TLR engineering.

Features
– Hard 2.5mm anodised aircraft Aluminium truck chassis
– Removable plastic dirt guards
– Fully milled for weight reduction
– Maximized chassis length and wheelbase
– Supports multiple battery configurations
– Weight balanced
– Improved component durability through materials and design
– Rear- or Mid-Motor Completion
– All required completion parts included for either configuration
– 3-gear rear-chassis transmission (Low to medium traction surface)
– 4-gear mid-chassis transmission (High traction surface)
– Fully adjustable caster via the spindle carriers
– Allows for fine tune adjustment for on/off-power steering
– Hard anodised 12mm shocks with bladder compensation
– Provides increased handling over bumps and improves handling
– TiNi shock shafts for durability and smooth operation
– Molded shock tool included
– Best in class front nose clearance
– Improved handling entering ad exiting steep jumps
– 3.5mm turnbuckles for increased strength
– Adjustable Caster (0, 3, 5, 10°)
– Adjustable Spindle Carrier Position (Front or Trailing)
– Stock at 30º, Adjustable front kick to 20 or 25 degrees
– All metric hardware, only one set of tools required
– Unsurpassed tuning and adjustability
– New 1/10-scale truck wheels included (2 sets, tyres not included)
– 2 ROAR legal truck bodies included

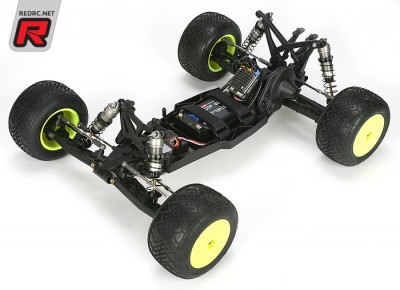

TLR22T-midmotor

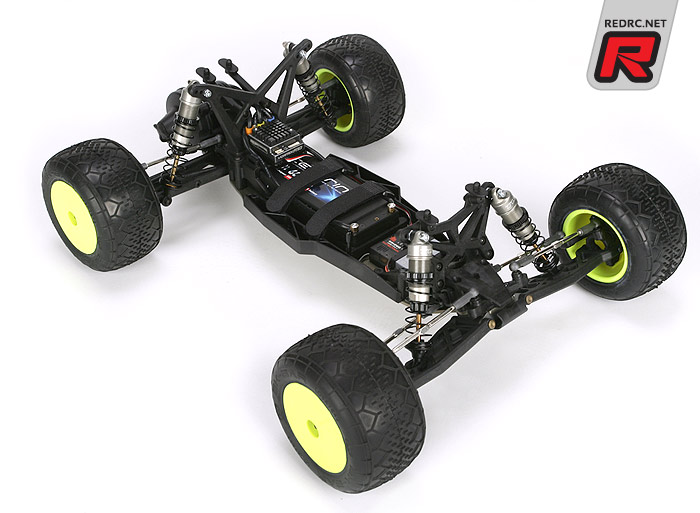

TLR22T-rearmotor

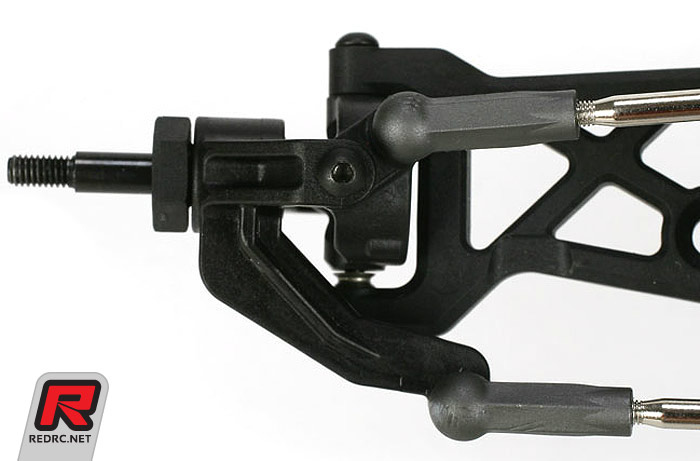

TLR22T-FrontCarrier

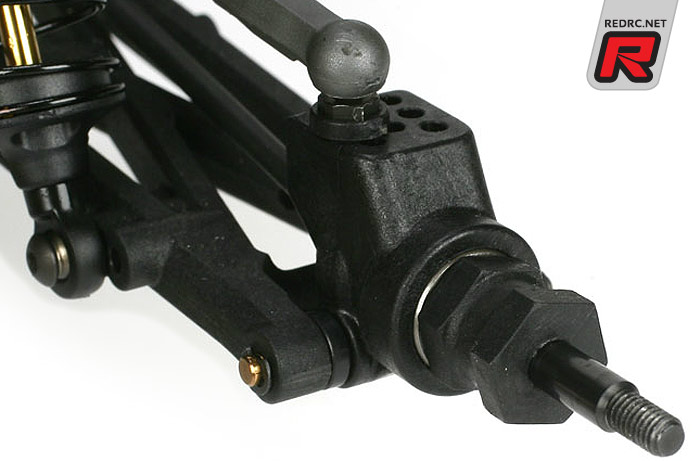

TLR22T-RearCarrier

Source: TLR [tlracing.com]
