Associated RC10R5.1 Factory Team kit

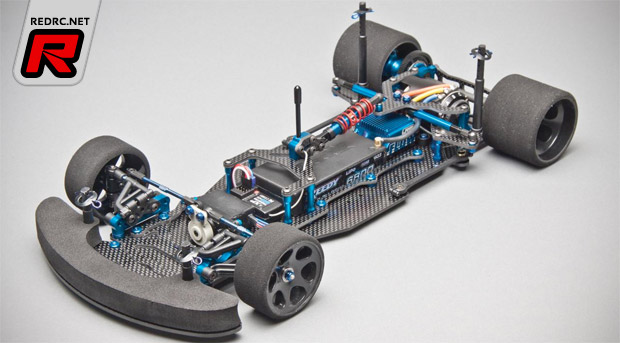

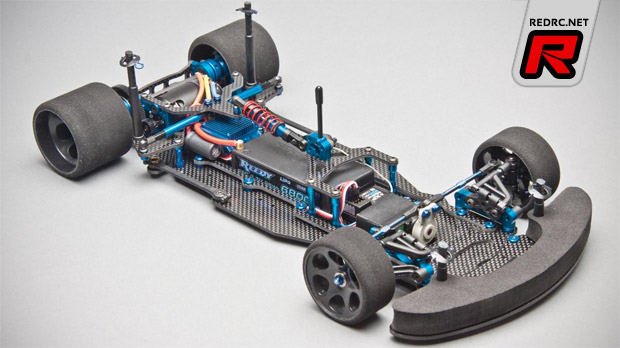

The RC10R5.1 Factory Team kit takes the next evolutionary step into the growing 1:10 scale World GT on-road racing class. Taking the design cues and revisions from the highly successful RC12R5.2 platform, the 10R5.1 has incorporated these improvements, pushing chassis performance to the next level. Sharing what is arguably the best pan car front end design to date, the IFMAR World Championship-winning Dynamic Strut front end features symmetrical components with adjustable caster and track width, and updated lower control arms with more accurate mounting for a more precise build every time.

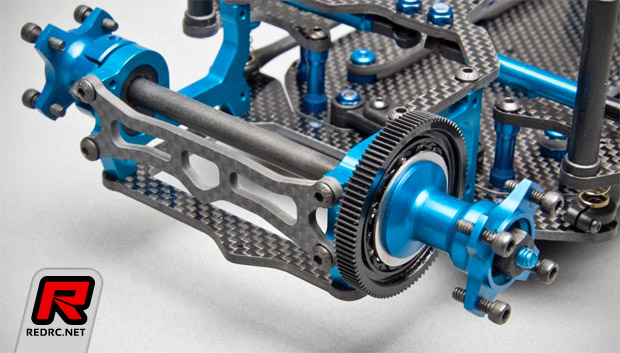

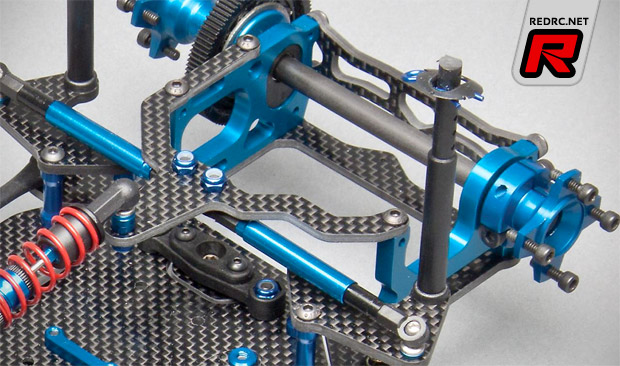

The 10R5.1 now employs the wide three-point rear pod that has been optimized for brushless motors. The rear blue aluminum bulkheads are tied together with a carbon-fiber motor mount cross brace to gain further rear end rigidity and durability.

The backbone of the 10R5.1 consists of an ultra-rigid 2.5mm thick carbon-fiber chassis with integrated chassis-stiffening rails. The chassis-stiffening rails provide a centralized LiPo battery mounting position that fits R.O.A.R.-approved 3.7V and 7.4V LiPo battery packs and easily facilitates front-to-rear weight bias adjustments.

The 10R5.1 also shares the rear suspension that has been proven on the 12R5.2. The center shock uses the through-shaft design, giving equalized damping throughout the full stroke of the shock in both directions without any unwanted rebound. Roll is controlled with the new side damper tubes that offer smoother rear pod movement and easier maintenance. The 10R5.1 puts this all together for a rear end that hooks up and stays hooked up throughout the imperfections of the track surface, all making for faster lap times.

Source: Associated [teamassociated.com]
