Racers Edge Cube200 quad output charger

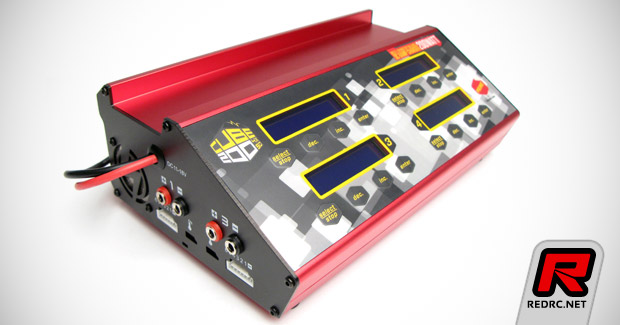

The Racers Edge Cube200 is a quad output 50-watt per channel DC only multi-chemistry balance charger. Featuring a compact footprint that allows you to stack the batteries you are charging in a secure c-channel battery rack, a bright LED backlit LCD screen that is at an inclined angle for easy charge monitoring, independent USB charge port and a sleek aluminium carrying case that adds extra protection from the elements. A full aluminium case with heat sink and built in cooling fans keep temperatures in check while the amps are flowing. Built in balance software, a complete lineup of adapters, along with their unique Pro Bullet Harness, takes care of everything in your stable. The Cube200 is capable at charging at 6amps at 50watts per channel. Discharge current is 4 x 5watts up to 1amps. 1-6cell LiPo and 1-15cell NiCd/NiMH.
Specifications
– DC Input: 11 – 18v
– Circuit Power: Max. Charge Power 4 x 50watts / Max. Discharge Power 4 x 5watts
– Charge Current Range: 0.1 – 6.0amps
– Discharge Current Range: 0.1 – 1.0amps
– Current Drain For Balancing: LiPo: 300mA/cell
– NiCd/NiMH Battery Cell Count: 1 – 15cells
– LiPo/LiFe/LiIon Cell Count: 1 – 6cells
– Pb Battery Voltage: 2-20 volts
– USB Port: 5 volts – 1amp
– Display: Blue Backlit LCD
– Net Weight: 1492g (3.29lbs)
– Dimensions: [width|height|depth] 258mm x 89mm x 164mm
– Warranty: 5 year Manufacture Defect
Includes:
2 Pro-Connect Bullets, Alligator Clips, Tamiya connector, Deans® Ultra Plug®, Traxxas HC, Futaba RX, JST and open charger leads. Also included are 2 XH 2-6S balance board and an aluminum carrying case.
Source: Racers Edge [racers-edge.com]
