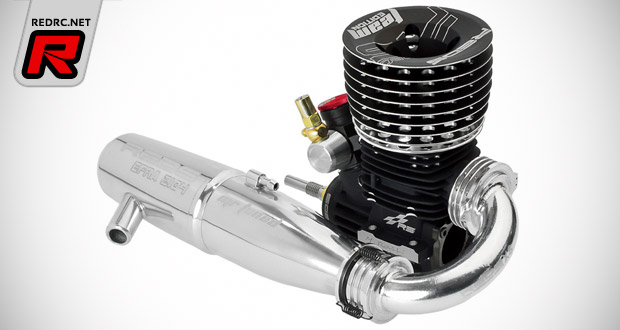

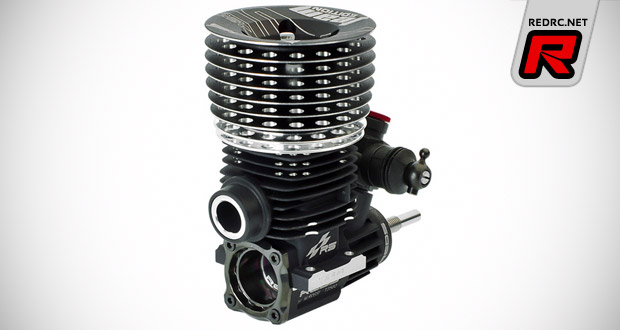

Reds R5T Team Edition 2 engine

Reds Racing is always developing high performance and low fuel consumption products and the latest development is the Team Edition 2. It is derived from the well-known R5T and used by most of Reds Team drivers such as King, Vega, Magi, Candel, Tanaka and others. The new Team Edition 2 is the most advanced Reds off road engine and is the 3rd step of development of R5T booster version. It has been designed for reducing fuel consumption and increasing performance and features a highly efficient cooling system, improvements to the sleeve and crankshaft timing and some adjustments to the tuning. The new cooling system guarantees more efficiency in extreme working conditions thanks to a wider cooling head and combustion chamber. Furthermore the cooling system has a lower gravity center in order to improve vehicle dynamics.

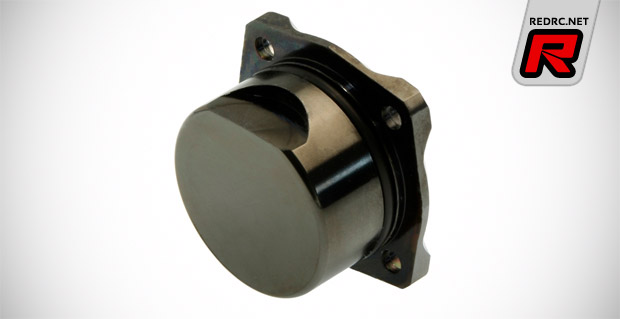

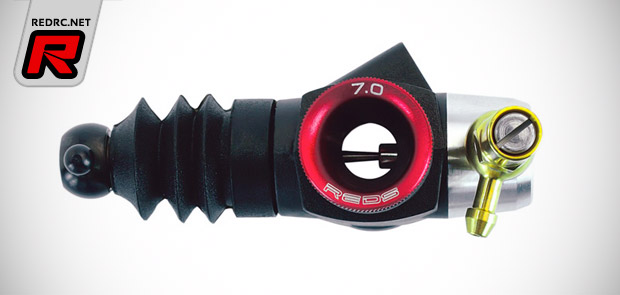

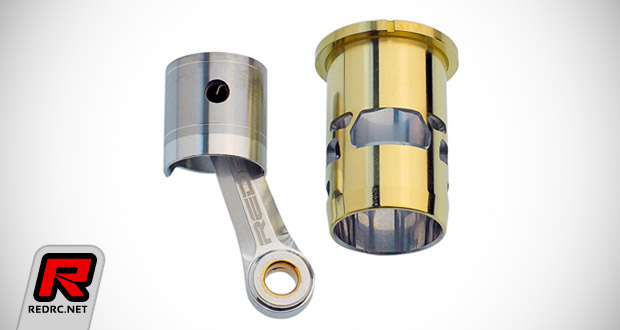

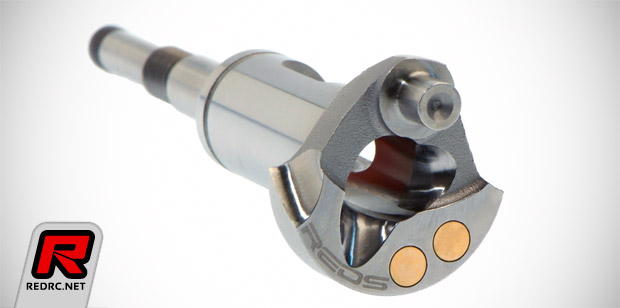

The main features of Team Edition are the back-plate with low fiction hard coating RDC, rear ceramic ball bearing, special Team Tuning, a sleeve with 5 inlet ports and exhaust with boosters, a balanced crankshaft and it is extremely light, weighing only 348grams. The engine is equipped with a T5C plug, pre adjusted carburetor, 6 and 7 mm venturi and quality control certificate by M. Rossi. The engine is matched with Reds 2099 or 2104, manifolds S, XS or DB and Reds ‘one touch’ effortless clutch.

Specifications
Category: 1/8 off road
Displacement [cm^3]: 3,5
Bore [mm]: 16,2
Stroke [mm]: 16,9
Inlet ports: 5
Outlet ports: 1 + 2 boosters
Front ball bearing DixDexS [mm]: 7x19x6
Front ball bearing features: Swiss Made
Rear ball bearing DixDexS [mm]: 14×25,4×6
Rear ball bearing features: Swiss Made Ceramic
Carburetor diameter [mm]: 6,7
Carburetor setting: Long needle
Glow plug: turbo 4,5,6
Weight: 348grams
Cylinder system: ABC
Exhaust type: rear
Recommended pipe: EFRA 2069 / 2099 / 2104
Recommended fuel: 20-30% nitro, 11-12% oil
Break-in fuel: 12% oil

Source: Reds Racing [redsracing.it]
