July 26, 2013

VBC Wildfire D06 touring car kit

VBC Wildfire D06 touring car kit

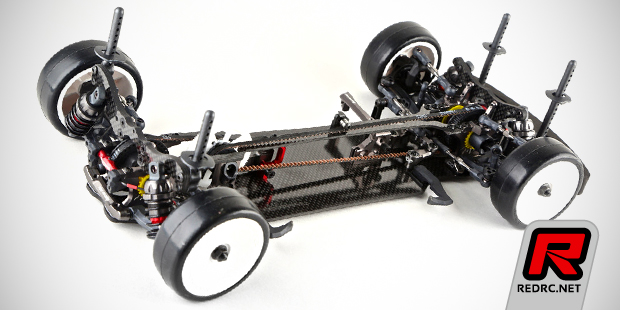

Not long ago VBC Racing released teaser shots of the Wildfire D06 touring car prototype and now the company officially introduce the new kit. The car is based on the current Wildfire chassis that received a huge overhaul and comes with an all-new motor mount design moving the motor to the centre line and in a more forward position for increased corner speed and agility. Also new is the chassis assembly that allows for a more linear flex characteristic with improved weight balance. And not only the chassis and drivetrain received a make-over, the wishbones are of a new stronger design and the kit comes with low-profile shock towers and “true big bore” shock absorbers that are shorter but larger in diameter retaining the large volume of the original shocks with the benefits of a lower centre of gravity. Included in the kit that is meant to hit stores at the end of August are also a new design “floating” servo mount and a genuine Panaracer spur gear.


VBC Wildfire D06 touring car kit

Features

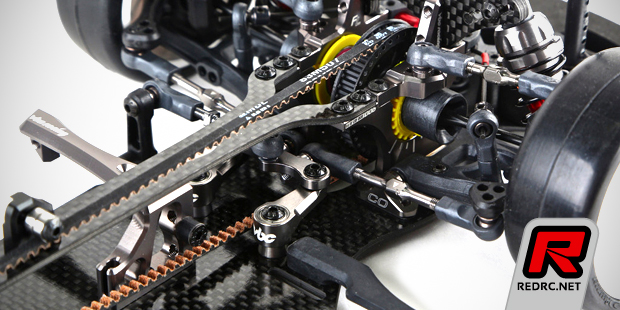

– New motor mount design, moving the motor more centreline and forward increasing corner speed and overall agility of the car
– New motor mount can incorporate a wider range of gear ratios from 21.5 up to modified classes
– New chassis and upper deck providing more linear flex response and better weight balance
– New front and rear A-arms
– New roll bar mount for smoother response and easier adjustments
– New 4mm thick lowered graphite shock towers improving CG

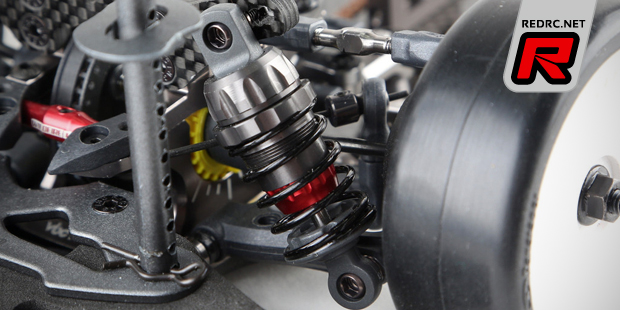

– New ‘True Big Bore’ shocks (TBB)
– New TBB springs with 4 different rates

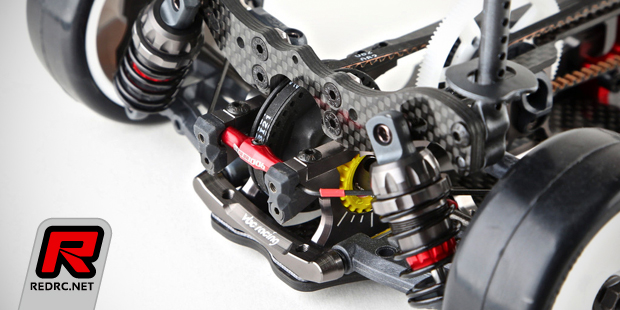

– New redesigned lower bulkheads which are lighter weight and stronger
– New upper camber link position for more linear cornering response
– New 7075 aluminium ball connectors
– Front 2-piece joint drive axles included

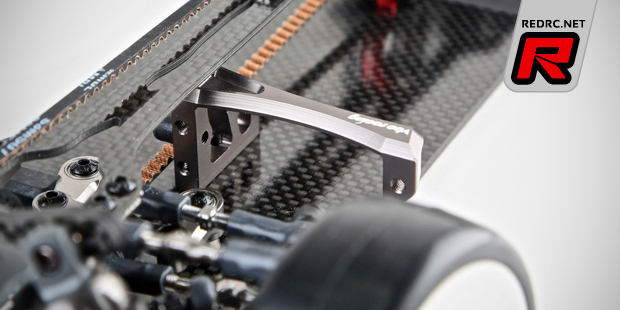

– New lightweight 7075 aluminium centreline servo mount included
– High quality Panaracer 116T spur gear included

VBC Wildfire D06 touring car kit

VBC Wildfire D06 touring car kit

VBC Wildfire D06 touring car kit

VBC Wildfire D06 touring car kit

VBC Wildfire D06 touring car kit

VBC Wildfire D06 touring car kit

VBC Wildfire D06 touring car kit

Source: VBC Racing [vbcracing.com]
