August 1, 2013

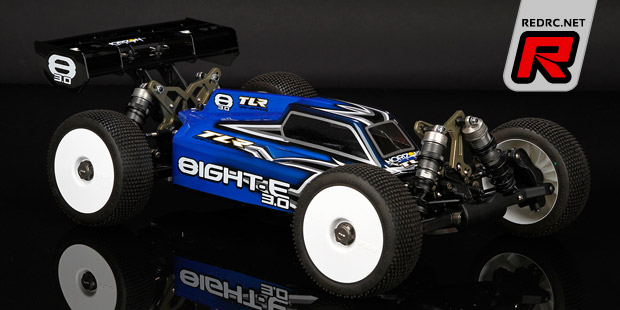

TLR 8ight-E 3.0 8th electric buggy

TLR 8ight-E 3.0 8th electric buggy

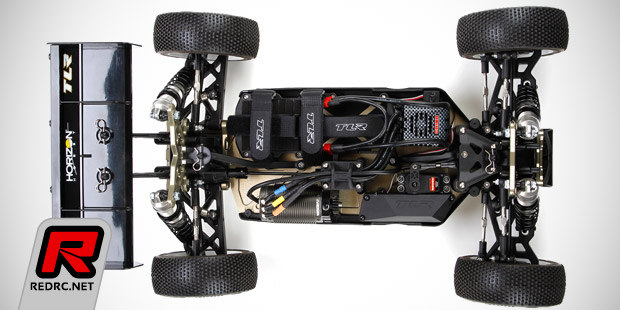

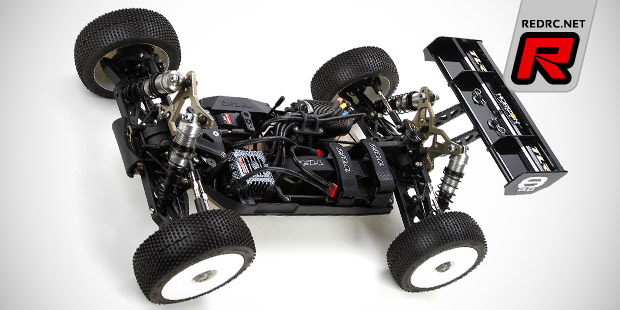

Following on from the success of the TLR 8ight 3.0 buggy, the new TLR 8ight-E 3.0 has been developed to meet the specific requirements of the electric 1/8 buggy racer and features many specific design cues that further optimise the 8ight platform and hone it for the specific rigours of electric racing. The 4mm 7075-T6 hard anodised chassis has been optimised for equal lateral flex characteristics and facilitates the lowest possible mounting of the motor and cells thus lowering the overall centre of gravity to improve handling and direction change. Motor and cell placement now resembles the layout used on the SCTE 2.0 SC truck. Other features included in the new kit are 16mm shock absorbers, aluminium suspension pivots and redesigned shock towers with optimised camber link and shock mounting positions. The kit is topped off by a new aero package that makes use of the experience gained with the 8ight 3.0 nitro buggy and includes a wing with wickerbill option and a new aggressively styled body shell with large shark fin.


TLR 8ight-E 3.0 8th electric buggy

Features
– Improved suspension geometry
– Large-bore 16mm shocks with tapered springs
– Aluminium chassis optimised for electric power
– Optional parts included
– Adjustable aluminium front and rear pivots with inserts
– Front and rear centre dogbones
– New and improved body and wing
– An additional wickerbill option is available to be installed on the wing improving rear traction and stability
– HD lightweight outdrives
– 8 new TLR branded wheels are included with no tyres and inserts
– 5mm turnbuckles
– Improved Ti-CN shock shaft and hinge pin coating
– Metal servo inserts
– Improved droop screw system
– Updated mud guards and servo mount
– Ball bearing steering Ackerman plate

TLR 8ight-E 3.0 8th electric buggy

TLR 8ight-E 3.0 8th electric buggy
Source: Horizon Hobby [horizonhobby.co.uk]
