Absima Revenge 1/8 brushless motor & controller

German company Absima introduce their Revenge brushless motor and controller series for 1/8th vehicles in the form of the Revenge 1:8 CTM motor and CTS 8 controller. Starting with the motors, they feature CNC-machined aluminium heatsink-design cases with aluminium front and back plates as well as pre-shaped heavy-duty solder tabs. Oversized ball bearings and a large diameter rotor shaft make for added durability while the motors are usable with sensored and non-sensored controller. The can measures 42x69mm and the motors are available as 1750, 1900, 2100, 2300 and 2500kv variant.

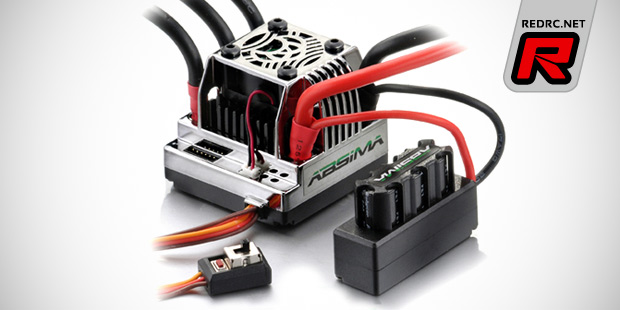

Swinging over to the CTS 8 controller, the device has a 180A rating and is useable with 2S to 6S LiPo battery packs. The ESC is usable with sensored and non-sensored 2 and 4-pole motors, comes including a high-speed fan and pre-soldered wires and it is highly programmable using Absima’s optional programming box.

Specifications:
– Motor types: 2/4-pole, sensored & sensorless
– Peak current: 180A
– Constant current: 950A
– Battery types: 2S-6S LiPo, 6 to 18 cell NiMH
– Motor limit 4S: 3000kv
– Motor limit 6S: 2400kv
– BEC: 6V/4A

Source: Absima [absima.com]
