June 27, 2014

Hitec X1 Pro charger & ePowerBox 17A power supply

Hitec X1 Pro charger & ePowerBox 17A power supply

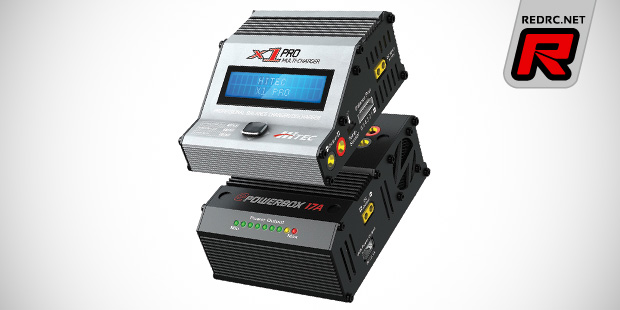

Hitec introduce the X1 Pro DC/DC battery charger and ePowerBox 17A power supply. Starting with the charger, the multi-chemistry device delivers a powerful 180 watts with an adjustable charge current rate of 0.1 to 16A and a single output. The X1 Pro design includes docking capability with the ePowerBox 17A power supply upping its ante in convenience and portability. The efficient power supply converts 100 to 240VAC volts into 17A of continuous 13.8VDC power, making it compatible with a wide variety of DC chargers. Available as separate versatile units or as a cohesive combination.

X1 Pro specifications:
– Input voltage range charge: 11~18 Volts DC
– Circuit power: 180 Watts
– Discharge circuit power: 30 Watts
– Charge current range: 0.1~16.0 Amps
– Discharge current range: 0.1~8.0 Amps
– LiPo, LiFe & LiIon balancing current drain: 200mA per cell
– LiPo, LiFe & LiIon cell count: 1~6 Cells
– Maximum NiCd/NiMh cell count:  1~15 Cells
– Lead Acid (Pb) cells/voltage: 2~20 Volts

Hitec X1 Pro charger & ePowerBox 17A power supply

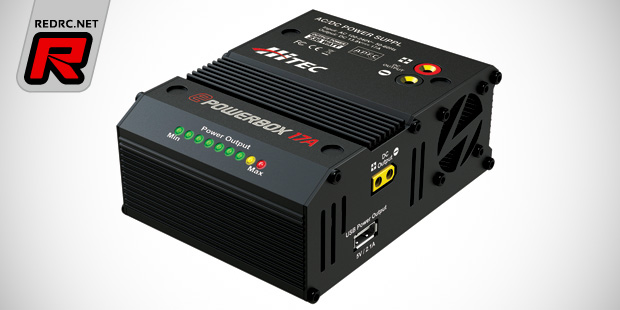

ePowerBox 17A specifications:
– Input voltage: 100~240 Volts
– Output voltage: 13.8 Volts DC ± 0.2V
– Current overload protection: 17.5A 500ms
– Input current protection: 5A Fuse
– USB output voltage/current: 5V/2.1A
– Cooling method: Temperature controlled fan

Hitec X1 Pro charger & ePowerBox 17A power supply

Source: Hitec [hitecrcd.com]
