Schumacher SupaStox GT 1/12th kit

Schumacher SupaStox GT 1/12th kit

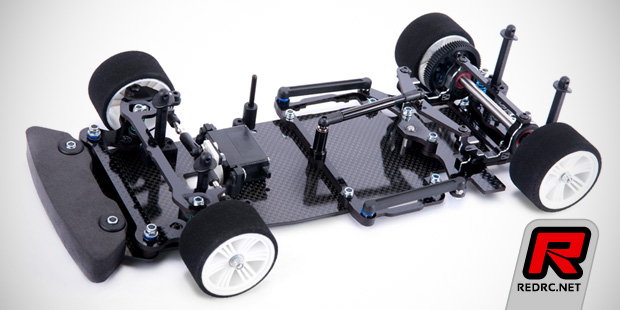

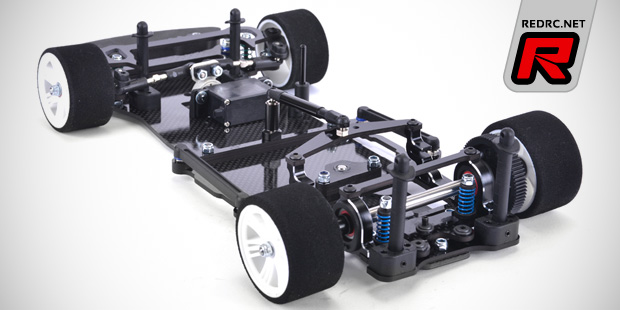

Schumacher introduce the latest incarnation of their championship winning SupaStox 1/12th scale GT12 kit, the SupaStox GT. Coming in two versions, with a S1 fibreglass chassis and rear differential or based on a carbon fibre chassis with fixed axle, the car is meant to be lighter, stronger and faster than ever. Included in all versions is a new low centre of gravity alloy motor mount and a pivot ball rear end with front to back tube damper for improved bump handling while new front and rear ride height adjustment options allow for improved fine-tuning. The car accepts a wide range of industry-standard bodyshells and electronics and it comes with pre-glued contact foam tyres front and rear.

Features:
– Available in two Versions – S1 chassis with diff or C/F chassis with fixed axle

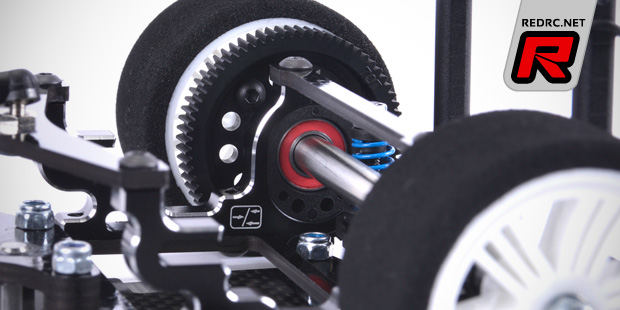

– Lightweight LCG CNC alloy motor mounts

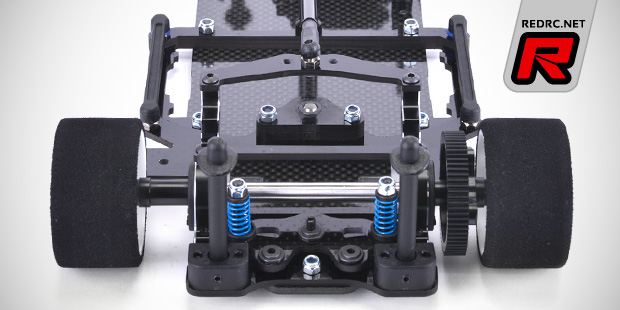

– Pivot ball rear end with front to back tube damper
– Adjustable rear ride height via rear axle adjusters
– Adjustable front ride height on king pin
– Rear tweak and roll stiffness adjustment via springs and spring position
– Adjustable rear droop with droop screws
– Adjustable front droop screws
– Shorter, narrower and stiffer 2.5mm carbon fibre or 2.5mm S1 composite chassis
– Small Kimbrough servo saver for improved steering geometry
– Tweak free battery mounting with tape
– CNC brass weight position on rear pod for better balance.
– Chassis weight balance pivot holes

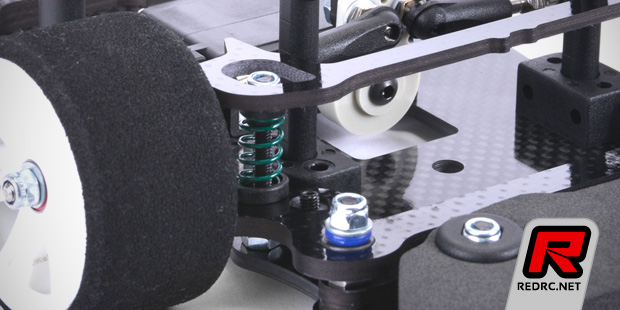

– Pivot front suspension With camber, castor, droop and toe-in/out adjustment
– Chassis accepts 1S or 2S shorty
– CNC high tensile, stainless steel rear axle

Schumacher SupaStox GT 1/12th kit

Schumacher SupaStox GT 1/12th kit

Schumacher SupaStox GT 1/12th kit

Schumacher SupaStox GT 1/12th kit

Schumacher SupaStox GT 1/12th kit

Schumacher SupaStox GT 1/12th kit

Source: Schumacher [racing-cars.com]
