Yeah Racing M05/06 long span suspension kit

Yeah Racing M05/06 long span suspension kit

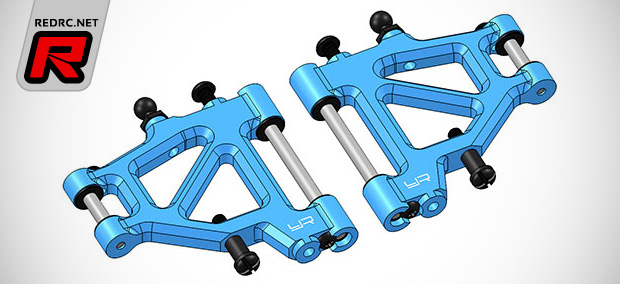

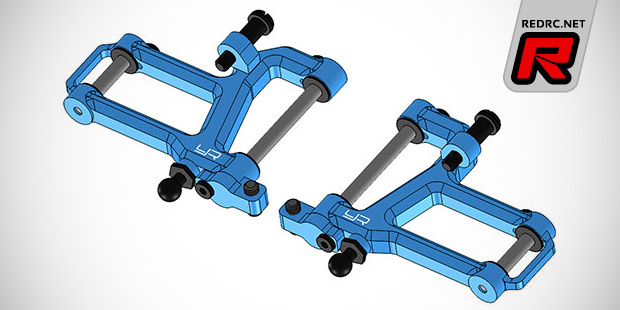

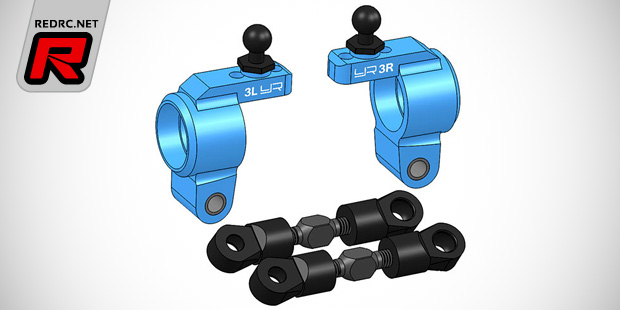

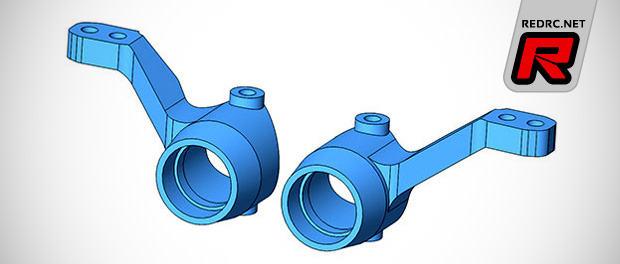

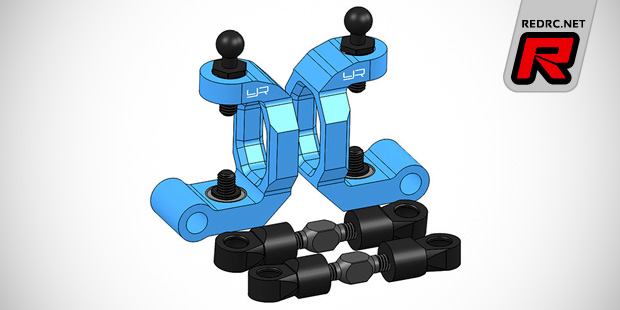

Coming from Yeah Racing and made for Tamiya’s M05 and M06 M-chassis kits is an aluminium long-span suspension arm and knuckle upgrade set. Made to replace the standard short arm suspension the front and rear A-arms included in the the set are 36 percent longer but retain the stock track width due to an updated front C-hub and rear hub design. Included in the set, that is constructed from ice blue anodised aluminium, are also new steering knuckles to complement the ball-raced C-hubs as well as adjustable camber links for the front and the rear of the car. The upgraded suspension improves the overall performance of the car which is further helped by a built-in 3 degree rear toe-in of the rear arms. All parts of the combo kit are also available separately although they they are not compatible with the standard parts and need to be used as a whole.


Yeah Racing M05/06 long span suspension kit

Yeah Racing M05/06 long span suspension kit

Yeah Racing M05/06 long span suspension kit

Yeah Racing M05/06 long span suspension kit

Source: Yeah Racing [yeahracing.com]
