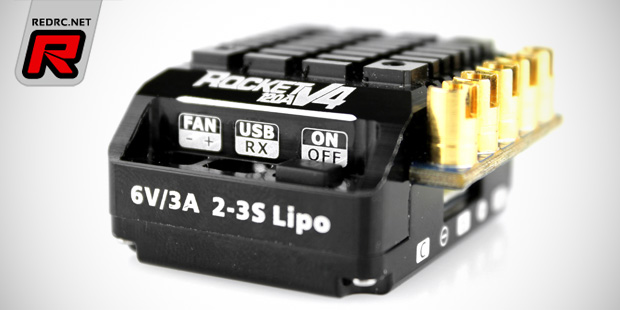

CS Electronic CS-Rocket V4 speed controller

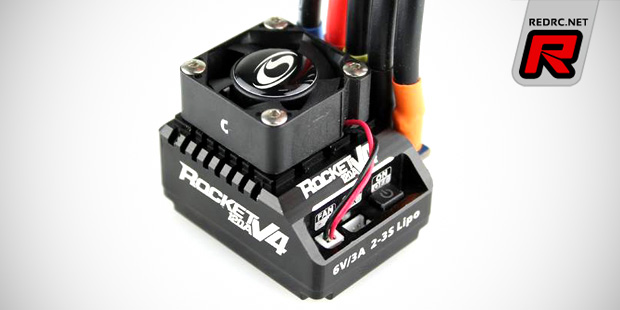

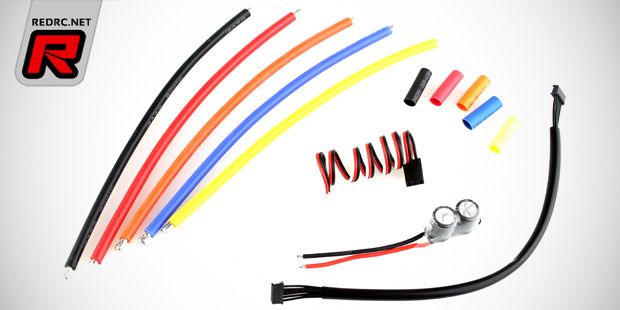

German company CS-Electronic introduce their latest 1/10th brushless speed controller, the CS-Rocket V4. The follow-up model of the controller that won the 2009 IFMAR 1/10th Buggy Worlds features a black anodised aluminium case, a 120A rating for a 3.0T motor limit, it is usable with 2S to 3S LiPo packs and comes with a 6V/3A BEC system. As for the software features the controller incorporates 10 Modified, Boosted and Blinky class profiles, and it is highly adjustable using an optional programming box or the included USB interface. The speedo is available in a standard or pre-wired version both of which include an add-on fan unit, power capacitor board, sensor wire, USB interface and PC software.

Specifications:
– Input: 2S to 3S LiXX or 5 to 10 cell NiXX
– Continuous current: 120A
– Peak current: 760A
– Motor limit: 760A
– BEC system: 6V/3A
– Sensor and sensorless operation
– Over temperature cut-off
– Adjustable low-voltage cut-off
– Dimensions: 42x37x21mm (31mm height with fan)
– Weight: 58g (w/o wires)

Source: CS-Electronic [cs-shop.de]
