VBC Lightning10-235 1/10th 235mm pan car kit

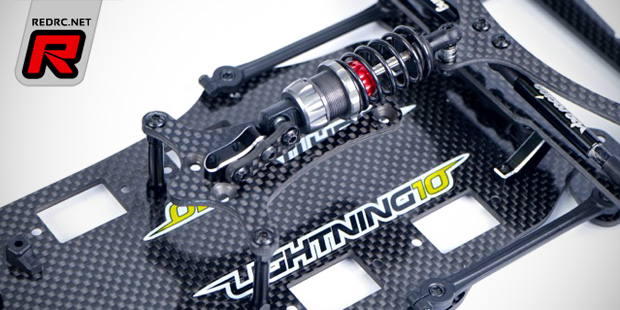

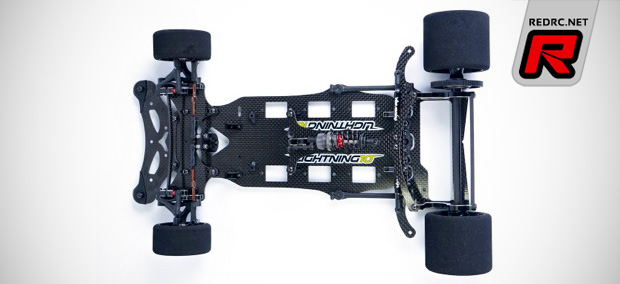

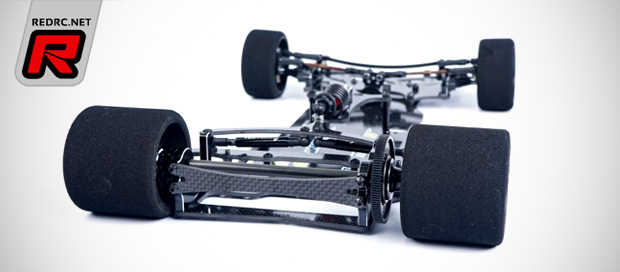

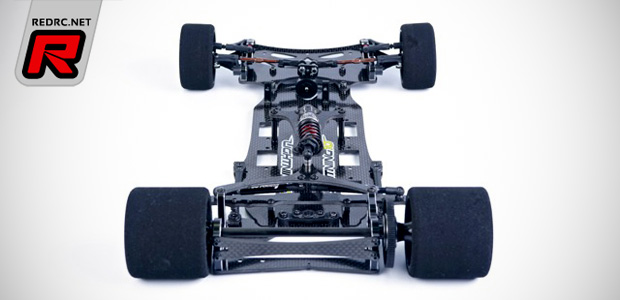

VBC Racing introduce the 235mm version of the Lightning10 1/10th scale pan car chassis. The Lightning10-235 marks the revival of the 1990’s Pro10 class and the kit is constructed using high grade carbon fibre materials, lightweight 7075 aluminium alloy, and high strength composite materials. The kit features ultra short 7075 aluminium drive hubs, a big bore centre shocks, multi location side springs, optional brass balance weight with multiple mounting locations, an optional fan mount, and a highly adjustable adjustable front suspension that allows to fine-tune track width, caster, active caster, camber and ride height. The oversized rear motor pod is designed to keep the wheel hubs as narrow as possible while allowing the use of brass balance weights for weight distribution fine-tuning. The kit will become available early January 2015.

Features:
– 2.5mm light weight carbon fibre chassis with slot for optional brass weights
– Low profile adjustable carbon fibre bumper with composite insert for crash protection

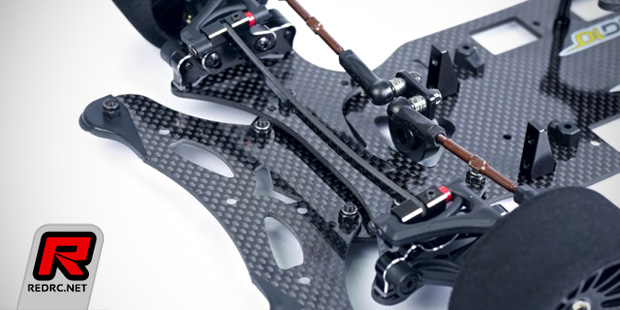

– Fully adjustable front end width, caster, active caster, camber, ride height
– High strength 2.5mm carbon fibre front suspension plate with adjustable wheelbase
– CNC 7075 aluminium alloy bulkhead, caster block and steering knuckle
– Optional inline front axle
– Includes two types of servo mounts for mini or standard size servo
– Carbon fibre adjustable rear shock mount
– Ultra smooth TBB big bore shock
– Adjustable composite lightweight battery mount for shorty or 1 cell batteries in forward or backward mounting position
– Twin side damper for more consistence operation
– Slop free composite material side links and centre pivot mount
– Optional front spring and side spring for setup suit different track condition
– Two mounting position for side spring for different racing condition
– High strength CNC 7075 motor mount, rear axle mount and chassis brace mount
– Wide range rear height adjuster to suit wider rear tire diameter range
– Extra strong 3.5mm carbon fibre motor mount brace
– Light weight short drive hub for wobble free high speed application
– Ultra strong light weight carbon fibre main shaft
– Rear pod with integrated fan mount
– Over size rear pod for mounting brass weight for better weight distribution and tuning options (available separately)

Source: VBC Racing [vbcracing.com]
