Serpent F110 SF2 formula kit

Serpent introduce the all-new F110 SF2 1/10th scale formula car kit. Designed by Michael Salven and David Ehrbar the car is based on a 2.5mm carbon fibre chassis and it features a new front end design compared to its predecessor with 2.5mm lower carbon fibre and upper composite A-arms, adjustable ride height for both rubber and foam tyres as well as quick adjustable castor using moulded inserts. To fine-tune the steering characteristics the king pin angle is adjustable using inserts and the included independent front suspension set with tube dampers helps to smooth-out the suspension action.

The chassis battery compartment of the chassis is designed for the use with 2S shorty battery packs and both the receiver and speed controller are located on adjustable carbon fibre platforms left and right of the battery. A centre RCC-type shock absorber with aluminium body and hardened shock rod takes care of the damping duties and it mounts to the carbon fibre battery retainer with quick access thumbnuts that allow for battery changes without the need for additional tools. Other features include a pancar-type rear end with rear links, and a captured pivot ball system that connects the chassis and rear pod in a way that prevents the assembly from binding for a more efficient suspension action while a single roll damper makes for a slim chassis layout. The rear ball differential is mounted to a lightweight aluminium rear axle and it is equipped with hardened steel diff plates and class-standard Tamiya-style wheel adapters. Included with the kit comes a newly-designed composite front wing with adjustable flaps and a large 2-level rear wing with adjustable upper segment to fine-tune downforce and drag. The wings are made from a tough yet lightweight composite for improved performance, rigidity and impact resistance.

Features:
– Strong, adjustable high downforce front nylon wing
– Front suspension with strong 2.5mm lower carbon wishbones and aero type composite upper suspension arms
– Durable steering blocks with upper pivotball and kingpin spring system
– Adjustable kingpin inclination with inserts
– Adjustable ride height to suit both rubber and foam tyres
– Caster adjustment with easy access inserts in the top carbon bracket
– Aluminium servo holder and new type steering saver system with adjustable Ackermann
– Lightweight central shock RCC absorber
– Spring-loaded link-type rear suspension
– New-style bind-free central pivotball system
– Pancar style rear end with low CG aluminium/carbon powerpod
– Strong and light aluminium rear axle
– Durable and light ball-differential

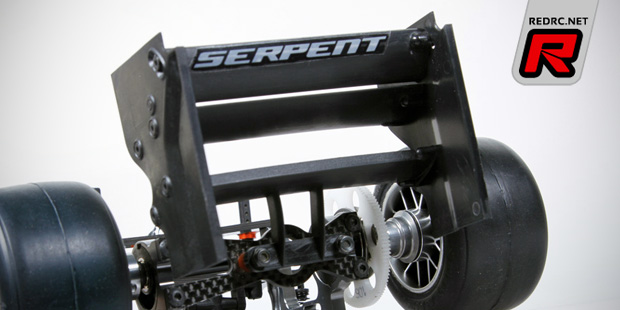

– Large durable adjustable 2 level composite white rear wing
– High quality ball-bearings and fasteners
– Strong nylon body mounts with nuts
– Independent front suspension set as an optional set-up included in the kit
– Optional wide front end available for the use with foam tyres

Source: Serpent [serpent.com]
