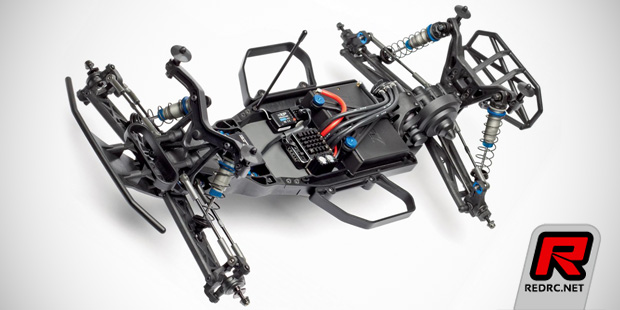

Team Associated SC5M Team Kit short course truck

Team Associated have introduced the all-new SC5M Team Kit 1/10th scale 2WD short course truck. Based on Team Associated’s B5M platform, the truck shares closes ties with the of the B5M and T5M to design the ultimate short course truck chassis that utilises all the advantages that come with a mid-motor configuration. The kit features a high performance, no-compromise dedicated mid-motor designed chassis, configured specifically for short course and it shares nearly 90 percent of the parts as the B5M and T5M Team Kits, making it easier than ever to run multiple classes at the same time. From the aluminium hard anodised chassis, to the Factory Team V2 threaded shocks, to the Factory Team VTS slipper clutch, the SC5M Team Kit comes with all of these features and many more. The kit will become available in July.

Features:
– Advanced B5M mid-motor design developed and applied to a short-course truck platform
– Narrow, hard-anodized aluminium chassis with centralized mass and mid-motor position for improved handling on high-grip offroad tracks
– Chassis fits R.O.A.R.-approved 2S saddle packs and 2S short packs using optional foam insert
– V2 12mm Big Bore threaded aluminium shocks with 3mm shafts and low-friction O-rings
– Updated four-gear transmission with lighter aluminium top shaft, stronger gears, precision ball bearings, and a 14-carbide-ball differential
– Pro-Line SC5M clear body included
– Factory Team aluminium rear ball stud mount included
– New inline front suspension features heavy duty steering and caster blocks, while the insert system allows for easy caster and trailing axle adjustments
– Adjustable front suspension mount angle (kick-up) options of 25° and 30°
– One-piece front axle/hex adapter and large front wheel bearing for added durability
– Full bearing steering system with horizontal ball studs for finer Ackermann adjustments
– Heavy-duty ball cups and ball studs allow for maximum suspension travel while reducing binding and friction
– Rear hubs feature large rear wheel bearings, as well as the quick and easy insert system to adjust camber link position and rear toe-in

Source: Team Associated [teamassociated.com]
