SkyRC D200 dual output AC/DC charger

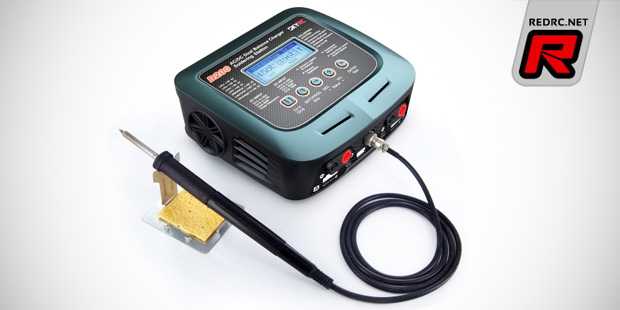

New from SkyRC comes the D200 dual output 200W AC/DC multi-chemistry charger with soldering iron output. Housed in a compact case the charger offers 5-button menu operation, a large back-lit display and it can handle up to 6S LiXX and up to 15 cell NiXX battery packs along 2 to 24V Pb batteries. The dual output design allows for up to 20A charge current on the main output and up to 10A on the secondary channel and as a novelty the device comes with a 60W soldering iron that can be plugged directly into the charger. The charger offers several features such as a built-in balancer, 20 charge/discharge profiles, a battery voltage meter, battery resistance meter, end voltage adjustment, a LiHV mode and the ability to perform software updates and remote controlling using SkyRC’s Charge Master software. Included with the device come the 60W/450°C soldering iron, one pencil and one chisel soldering tip.

Specifications:
– Dimensions: 197x182x71mm
– Weight: 1260g
– Input voltage: 100-240VAC/11-20VDC
– Charge circuit power: AC input 200W/DC input Ch A 200W, Ch B 100W
– Discharge circuit power: 2x 10W
– Charge current range: Ch A 0.1-20A/Ch B 0.1-10A
– Discharge current range: 0.1-5A
– Balancing current: max 300mA/cell
– Trickle charging current: 30-300mA & off
– LiXX output: 1-6S
– NiXX output: 1-15 cell
– Pb battery voltage: 2-20V

Source: SkyRC [skyrc.com]
