Exotek Exo22T mid motor chassis set

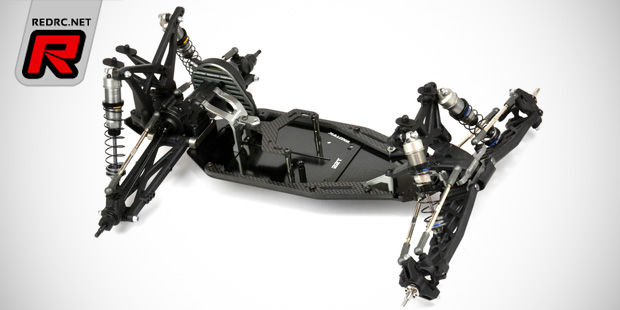

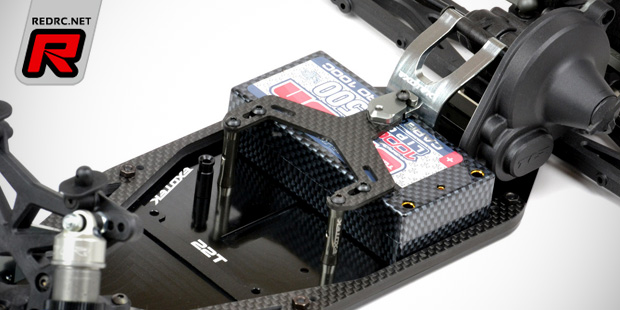

Exotek have introduced the Exo22T mid motor chassis conversion kit for the TLR 22T and mid motor converted 22T 2.0 stadium trucks. With its simple and efficient layout, the Exo22T offers improved rearward weight positioning of the battery and electronics to better suit a variety of track conditions. The chassis allows standard inline shorty battery positioning or the easy to drive side ways mounted shorty battery installation. Included in the set is a black anodised 2.5mm 7075 alloy chassis with 5mm carbon side rails for proper stiffness and strength. Pocket milling in the chassis lowers the battery and speed controller for a lower overall centre of gravity while the included carbon LiPo strap also acts as a top plate. The LiPo strap is fastened to the rear alloy brace and two alloys posts and part of the package is also a machined 7075 alloy nose plate that is used for durability while allowing for inexpensive chassis swaps.

Features:

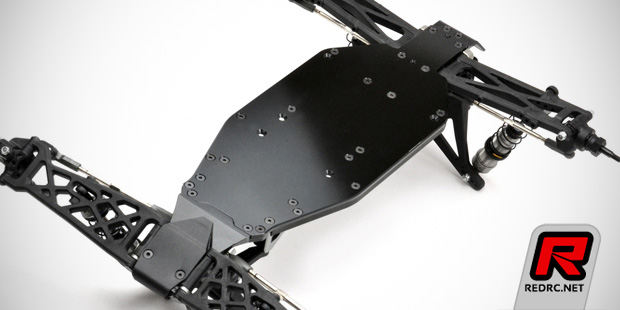

– 2.5mm 7075 machined alloy bottom plate
– 5mm thick carbon fibre side rails with matte finish for improved scratch hiding

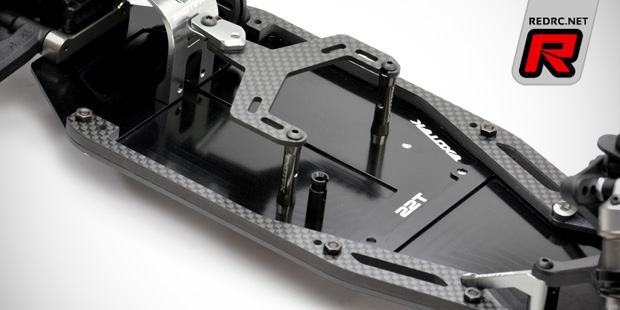

– Pocket milling in the chassis lowers the battery and ESC
– Easy LiPo access carbon top plate

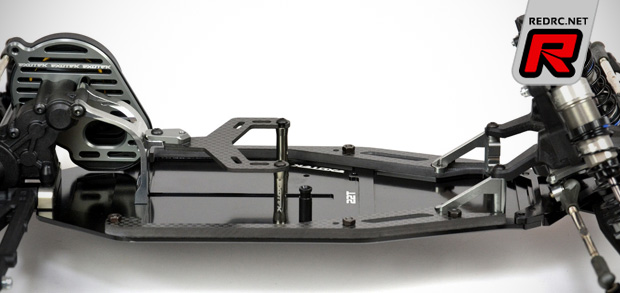

– Alloy gear box brace is repositioned further back to allow improved rearward battery positioning
– Chassis allows easy switching between lateral and inline battery mounting
– LiPo strap has adjustable holds to allow the battery to be shifted forward or back
– Machined 7075 alloy nose plate
– Includes machined delrin antenna mount
– Increased chassis ‘footprint’ allows more options for electronics placement
– Optional alloy fan mount available

Source: Exotek [exotekracing.com]
