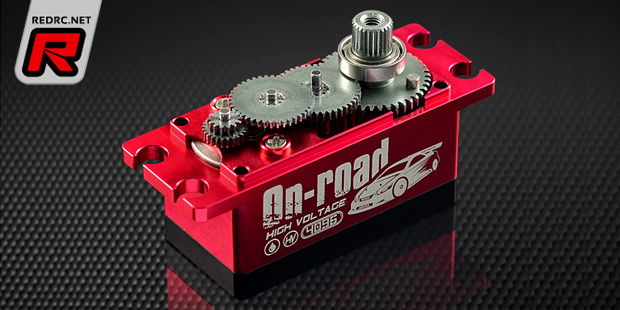

PowerHD L-12HV low-profile servo

PowerHD have introduced their latest low-profile high voltage servo, the L-12HV. It makes use of a CNC-machined all-alloy case for improved durability, optimised heat dissipation and cool looks while the titanium and aluminium gears as well as the coreless motor make for high rigidity and performance. At 7.4V input the servo pulls up to 12kg-cm of torque at a speed of down to 0.06s and it comes with a short, on-road specific 80mm connection wire.

Specifications:
– Torque (6.0V): 9.0kg-cm
– Torque (7.4V): 12.0kg-cm
– Speed: 0.07sec (6.0V), 0.06sec (7.4V)
– Weight: 52g
– Bearing: Dual ball bearings
– Motor type: Coreless motor
– Gear type: Titanium and aluminium
– Dimensions: 40.0×20.0x26.4mm

Source: PowerHD [chd.hk]
