Schumacher Cat K2 1/10th 4WD off-road buggy

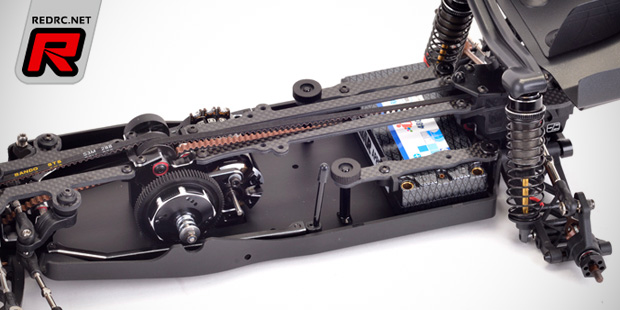

Moving forward from the 2015 EFRA Euros winning CAT K1 Aero, Schumacher have now introduced the Cat K2. With modern track trends the buggy is optimised for high and low grip conditions, making it faster, more consistent and more versatile with its longer and very narrow chassis. Based on the updated chassis the car allows to run multiple battery configurations from shorty to saddle pack, it features a reverse rotation mid-motor layout with centralised motor position and split top decks for greater flex characteristics and easier maintenance. Also new are a compact steering system with adjustable, dynamic Ackermann, the new quad-pad slipper clutch and the new front inner hinge-pin mounting system. Included are also a new, sleek bodyshell and the Claw high-downforce rear wing package.

New features:
– Alloy chassis side stiffeners

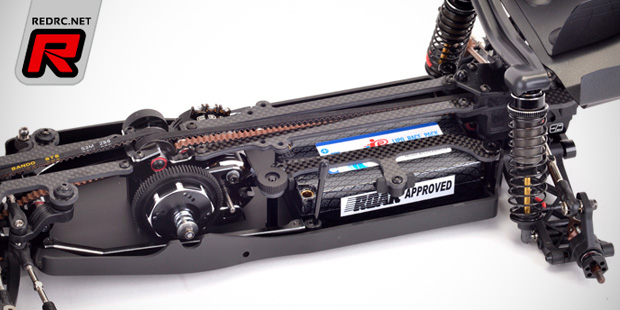

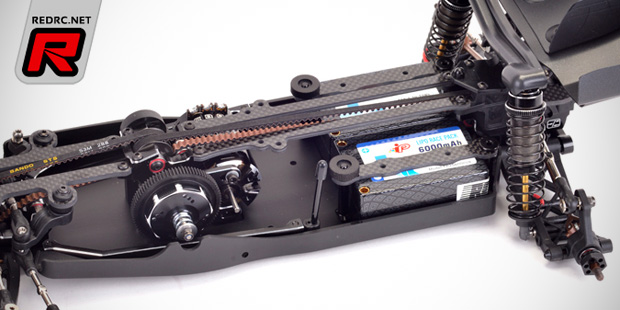

– Multiple battery fitting options. Saddle and shorty options
– Captive ball joints
– Reverse rotation, mid motor layout
– Split top decks for greater flex characteristics and easier maintenance

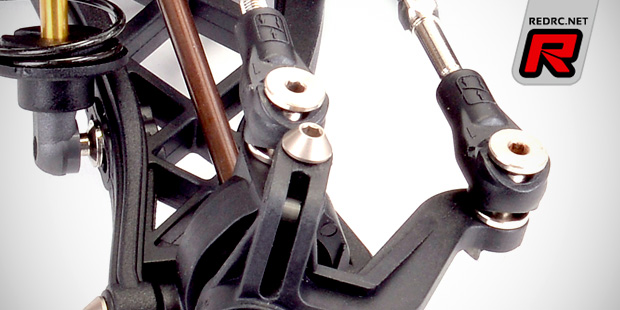

– Compact steering system for improved in-line weight placement with adjustable, dynamic Ackermann
– Super consistent, industry leading quad pad, vented slipper with easy access and new ultra fine adjustment spring
– Optimised narrow chassis shape to improve roll stability. Improved ground clearance on roll
– Aerial mount
– Ultra low motor mount
– Rear pivot straps
– Battery thumb screws
– Transmission housings
– Longer wheelbase
– Centre-line motor position for lower polar moment
– Front yokes with adjustable roll centre heights
– Stronger outer rear hinge pin
– 2.5mm aluminium chassis
– 3.0mm aerospace grade carbon fibre top decks
– Moulded side pods for superb dirt protection
– Stronger front, inner hinge pins with new mounting system
– Easy access centre belt pulley

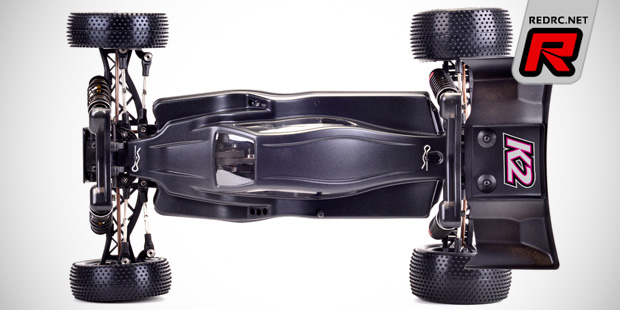

– Sleek, ultra narrow body shell
– Large “Claw” high down force rear wing package

Source: Schumacher [racing-cars.com]
