STRC SCX10 off-axle servo mount & panhard kit

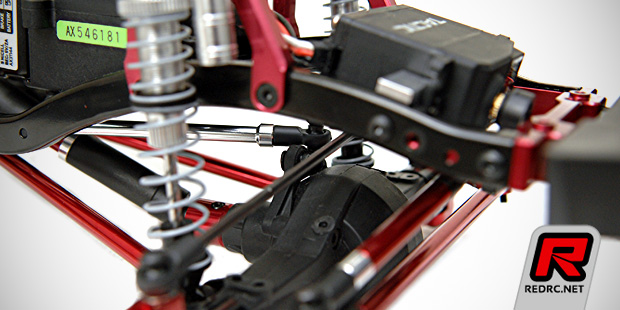

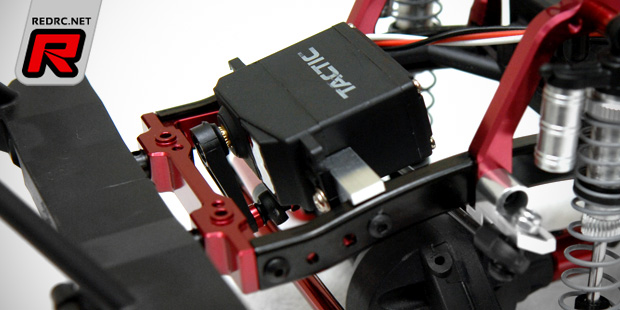

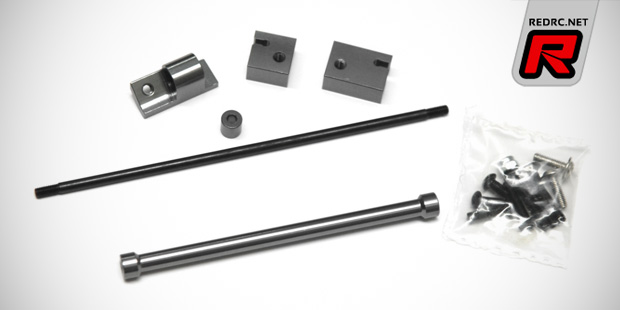

New from ST Racing Concepts comes the SCX10 off-axle servo mount and panhard combo kit for those of that are after the utmost scale realism. The kit will take the highly visible front steering servo off the axle and mounts it on to the chassis rail for a greatly improved look of the front end. The servo is mounted on the chassis rails using two solid CNC-machined aluminium servo mounts that are keyed into the chassis rails and secured using just one screw for each servo mount. The panhard rod is made with a heat treated black oxide steel that mounts from the steering knuckle kingpin screw and spans across to the other side of the chassis rails on a specially CNC-machined aluminium panhard mount. This setup allows the suspension to feel smooth and allow for the most shock compression due to the smaller diameter of the steel link versus aluminium tube links. To maximise the clearance of the upper link, a new suspension link is machined specifically for this kit with a 7mm diameter for the threaded area and taper down to a 5mm solid centre portion so as the suspension compressed, this extra bit of clearance from the smaller centre diameter again allows for the most shock compression before the upper link comes in contact with anything on the chassis rails. The kit is available with or without the required Axial aluminium steering kit and in the three colours of scale black, gun metal and natural silver.

Source: STRC [teamstrc.com]
