January 8, 2016

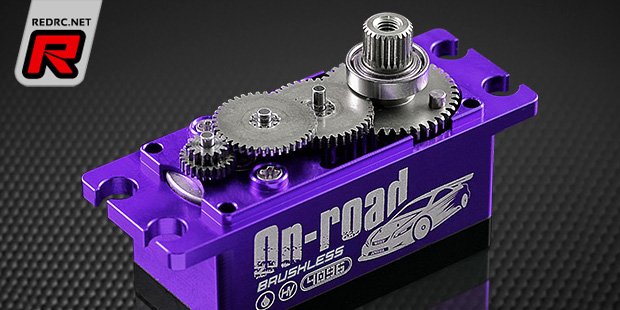

PowerHD Storm-7 low-profile servo

PowerHD Storm-7 low-profile servo

New from PowerHD comes the Storm-7 low-profile servo. The high-voltage compatible servo was developed with electric buggy and nitro touring car racing in mind, it features a sturdy all-aluminium case, durable yet lightweight titanium and alloy gears as well as a heat-resistant brushless motor. With the gears placed in a straight line PowerHD promises up to 30 percent higher drivetrain efficiency of the servo that pulls up to 13kg-cm of torque at a speed of down to 0.055 seconds.


PowerHD Storm-7 low-profile servo

Specifications:
– Size: 40.0×20.0x26.4mm
– Torque (6.0V): 10.0kg-cm
– Torque (7.4V): 13.0kg-cm
– Speed (6.0V): 0.065s
– Speed (7.4V): 0.055s
– Operating voltage: 6.0-8.4V
– Weight: 52g
– Bearing type: Ball bearing
– Motor Type: Brushless motor
– Gear Type: Titanium & alloy
– Working frequency: 1520μs/333hz

Source: PowerHD [chd.hk]
