Reedy HV digital aluminium competition servos

Team Associated have introduced two new Reedy competition servos. The RS1806A Hi-Speed (0.06s/18.4kg-cm) and RT2207A Hi-Torque (0.07s/21.2kg-cm) Digital Competition servo were designed with 1/8th buggy and truggy racing in mind as their all-aluminium case reduces operating temperatures while increasing rigidity and strength. Durable precision metal gear drivetrain and advanced microprocessor improve vehicle control and on-track performance while the high-voltage compatibility allows the use of 2S LiPo receiver batteries, resulting in high speeds and maximum torque. The servos are equipped with powerful coreless motors, they are water and dust resistant and come with aluminium mounting hardware and an aluminium clamping servo horn.

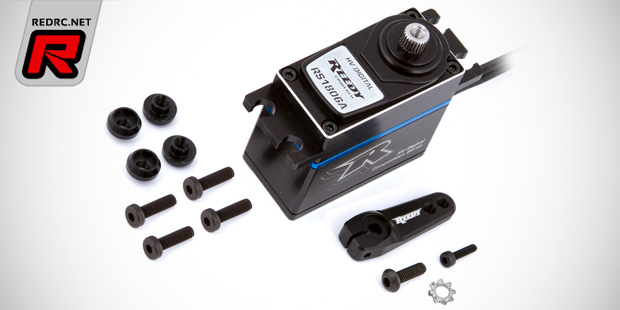

Specifications RS1806A:
– Input (V): 6.0 – 7.4
– Speed (sec/60deg.), 6.0V: 0.08
– Speed (sec/60deg.), 7.4V: 0.06
– Torque (kg-cm), 6.0V: 15.2
– Torque (kg-cm), 7.4V: 18.4
– Dimensions (mm): 39.5 x 20.0 x 38.7
– Weight (g): 72.6
– Spline: 25

Specifications RT2207A:
– Input (V): 6.0 – 7.4
– Speed (sec/60deg.), 6.0V: 0.09
– Speed (sec/60deg.), 7.4V: 0.07
– Torque (kg-cm/oz-in), 6.0V: 17.3
– Torque (kg-cm/oz-in), 7.4V: 21.2
– Dimensions (mm): 39.5 x 20.0 x 38.7
– Weight (g): 72.6
– Spline: 25

Source: Team Associated [teamassociated.com]
