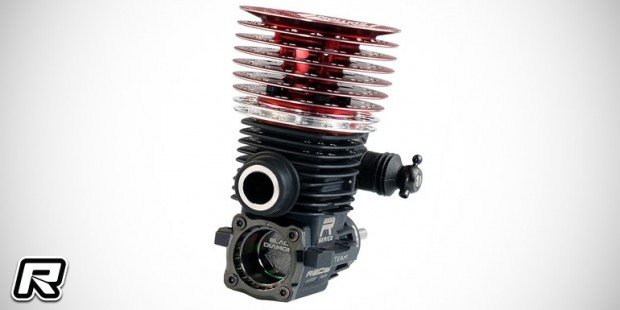

Reds Racing R5T Team Edition off-road engine

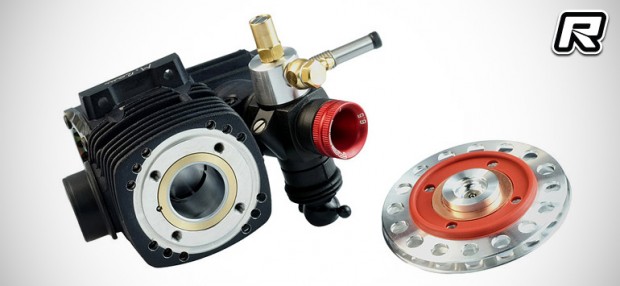

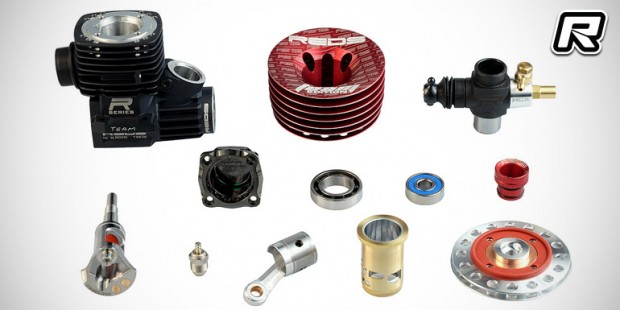

Hot on the heels of Reds Racing’s R7 Evoke V3.0 engine comes the release of the R5T Team Edition V4.0. Representing the company’s highest performance 3.5cc engine the R5T Team Edition excels especially in high-bite conditions and ion tracks that require that little extra bottom end power. New for 2016 comes a special sealing system for the combustion camber insert that keeps dust and dirt away from the redesigned internals. Also new is the Gen2 venturi for improved milage and tunability. Another feature is the low centre of gravity design thanks to redesigned parts such as the crankcase, cooling head and combustion camber insert. The engine also features Reds Racing’s renown Black Diamond backplate for reduced friction and it is hand-made, hand-tuned and hand-assembled for the highest possible quality and performance.

Specifications:
– Displacement: 3.5cc
– Bore: 16.2mm
– Stroke: 16.9mm
– Inlet ports: 5
– Outlet ports: 1 + 2 boosters
– Front ball bearing:  Rubber-sealed steel
– Rear ball bearing: Swiss made ceramic

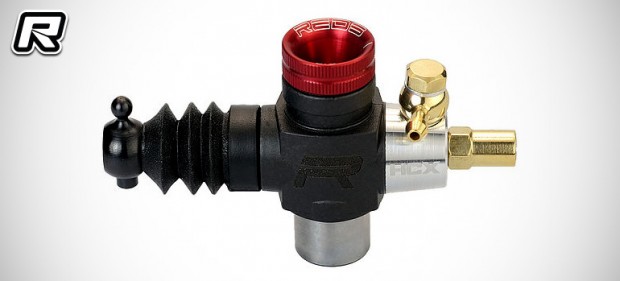

– Carburetor: HCX Long needle
– Weight: 348
– Cylinder system: ABC
– Exhaust type: rear
– Recommended glow plug: REDS T5C

Source: Reds Racing [reds-racing.com]
