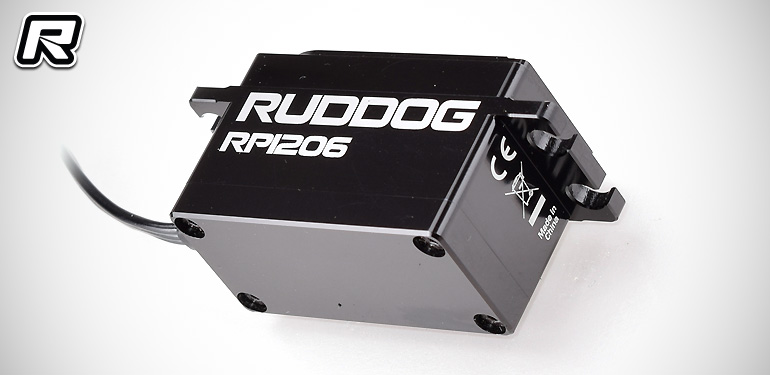

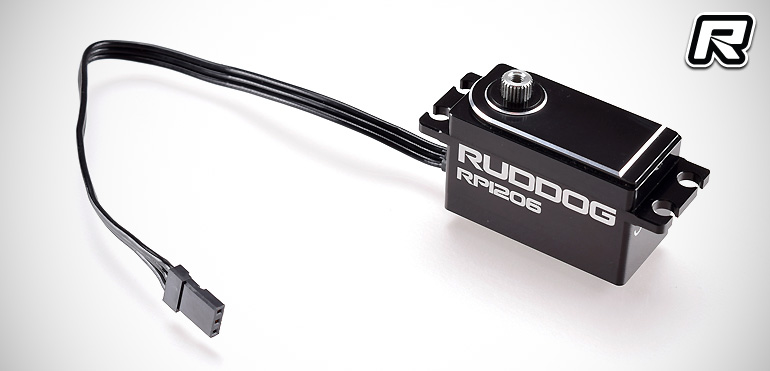

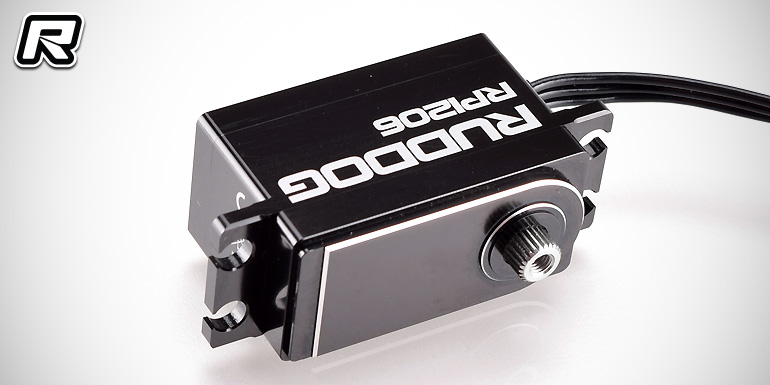

Ruddog RP1206 coreless low-profile servo

Ruddog Distribution have introduced their all-new RP1206 low-profile servo for 1/10th scale applications. Designed for demanding racing conditions the servo features a black anodised heavy-duty all-aluminium case, sturdy metal gears and a powerful coreless motor. Dual ball bearings and laser-etched logos round out the package. The high voltage compatible servo offers up to 12kg-cm of torque at a speed of down to 0.06s and it is available in two variants with a short 80mm or long 180mm all-black wire, allowing for neat wiring jobs in touring cars and off-road vehicles alike.

Specifications:
– Voltage input: 6.0-8.4V
– Torque (6.0V): 10.0kg-cm
– Speed (6.0V): 0.07s
– Torque (7.4V): 12.0kg-cm
– Speed (7.4V): 0.06s
– Weight: 52g
– Ball bearings: Dual ball bearings
– Spline: 25T
– Motor type: Coreless
– Frequency: 1520μs/333hz
– Dimensions: 41x20x26.4mm

Source: Ruddog Distribution [ruddog.eu]
