March 1, 2017

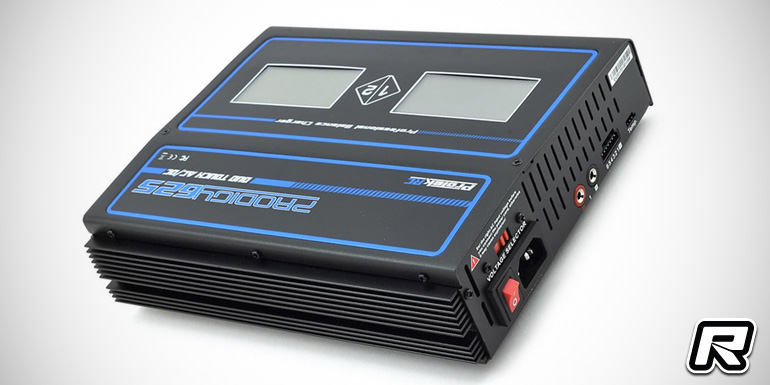

ProTek Prodigy 625 Duo Touch multi-chemistry charger

Coming from ProTek RC is the Prodigy 625 Duo Touch multi-chemistry AC/DC charger. The device features an intuitive and easy-to-use touch screen interface with no physical buttons to wear out. Two independently-controlled 200 Watt internal power supplies provide up to 25A of charge current per channel. The charger also provides important information during the charging process, including a data graph, internal resistance of the battery and individual cell voltage. Additional features include adjustable per-cell end voltage, worldwide voltage compatibility, automatic cell count recognition, and a Digital Power setting that allows to power additional DC powered equipment when you aren’t charging a battery. On top of this the charger offers a dedicated LiHV mode, allowing to charge the latest generation of LiPo packs to a voltage of 4.35V per cell.

Features:
– Dual channel touch screen digital AC/DC balance charger
– Maximum 25A charge current, up to 200W per channel
– Maximum 5A discharge current, up to 30W per channel
– 100V – 240V AC input
– 11.0V – 18.0V DC input voltage range
– Automatic Lithium cell count recognition
– LiPo, LiHV, Nickel & Lead Acid compatible
– Adjustable charge end voltage
– Simple & efficient user interface
– ±0.01 balance tolerance range
– Microprocessor controlled
– Multiple safety functions
– Individual cell balancing
– Heavy duty metal case
– Delta-Peak sensitivity
– Back-light screen
– Efficient heat sink

Source: AMain [amainhobbies.com]
