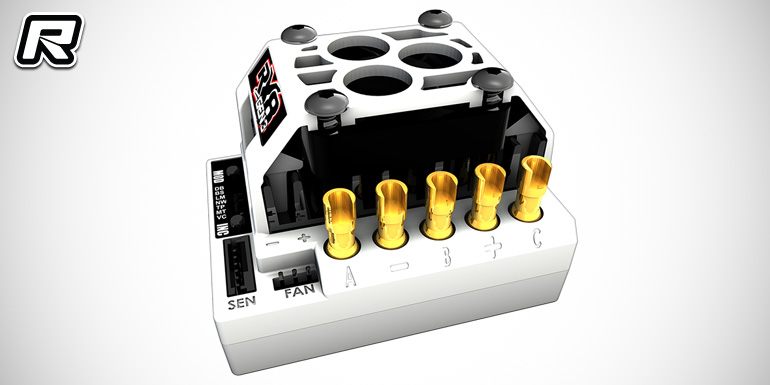

Tekin RX8 Gen3 1/8th brushless speed controller

Tekin’s proven RX8 1/8th brushless speed controller has received the Gen3 treatment, featuring a programmable high voltage BEC, data logging capabilities, timing profiles, voltage cutoffs for LiPos, HotWire 3.0 Bluetooth connectivity and more. Utilizing Tekin’s D2 Dual Drive Mode Technology, the RX8 runs both Sensored and Sensorless motor drives seamlessly while the small footprint makes install on any chassis easy with the option of mounting with included hardware for extra security. The controller is usable in a variety of classes including 1/8th off-road and on-road, 1/10th 4WD SCT and even rock crawling. New to the Gen3 are HD Gold-plates solder posts, adjustable torque control, adjustable throttle and brake frequencies, as well as the 6V/7.4V 8A heavy duty BEC system.

Specifications:
– Controls: Forward/Brake/Reverse
– Input Voltage: 2S-6S LiPo/4-16S NiMH-NiCD
– BEC: 6.0V/7.4V @ 8amps
– Motor Limit Brushless Mode: 2S/no limit, 3S/4000kV, 4S/3500kV, 5S/2200kV, 6S/2200kV
– Motor Limit Brushed Mode: No Limit
– Max Current: 300amps per phase
– Burst Current: 1000amps per phase
– Timing Profiles: 7 choices (on board)
– Brushed Modes: FWD Only / FWD-REV / FWD-REV Delay
– Brushless Modes: FWD Only / FWD-REV / FWD-REV Delay
– Dimensions: 38×55.8×35.5mm
– Weight: 76.5g

Source: Tekin [teamtekin.com]
