Serpent F110 SF3 1/10th formula car kit

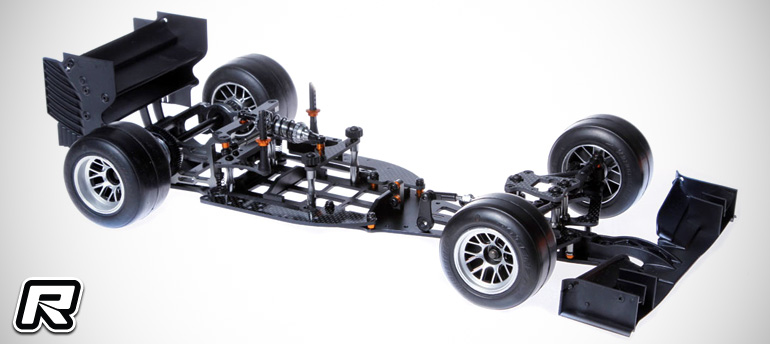

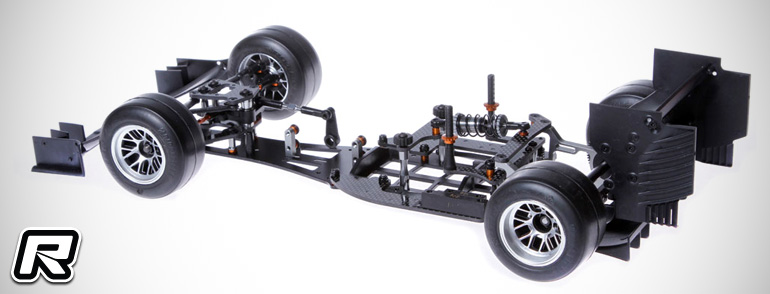

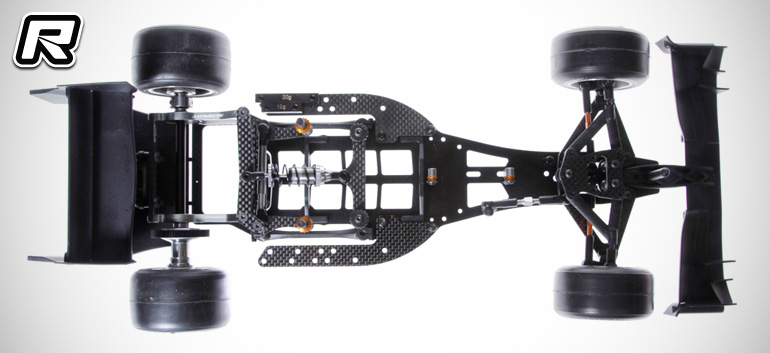

Serpent have introduced the latest incarnation of their successful F110 platform, the SF3. The car is based on a new, black anodised 2.5mm aluminium main chassis plate that sports carbon fibre extensions for the electronics such as receiver and speed controller. The battery is placed in a longitudinal position that, in combination with the slightly backwards mounted electronics, makes for an agile handling and a responsive car. Up front the previous 2-part lower wishbones have been replaced by a single carbon fibre plate. Included with the kit comes with realistic front and rear wings that have been updated by using a more flexible yet stronger composite material. The kit, that does not include body, tyres, gears and electronics, will hit stores very soon.

Features:

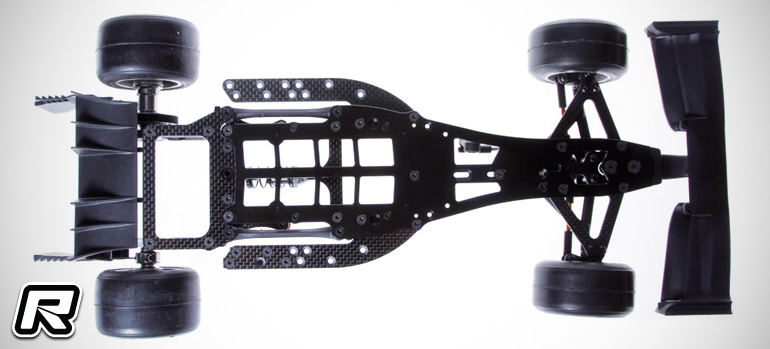

– New narrow lightweight 2.5mm aluminium 7075 T6 chassis plate with black finish
– New 2.5mm carbon fibre front lower suspension plate, running all the way across

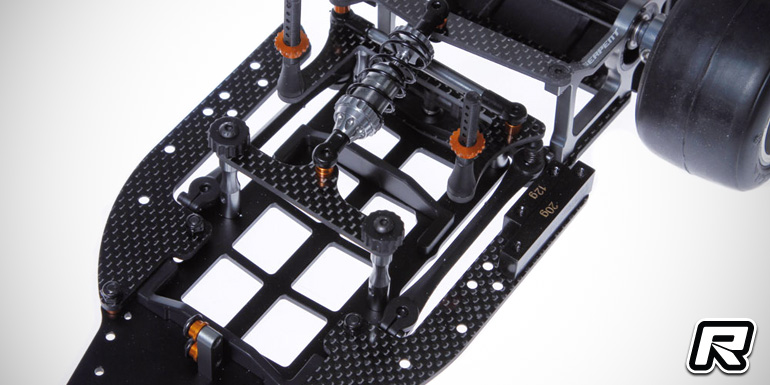

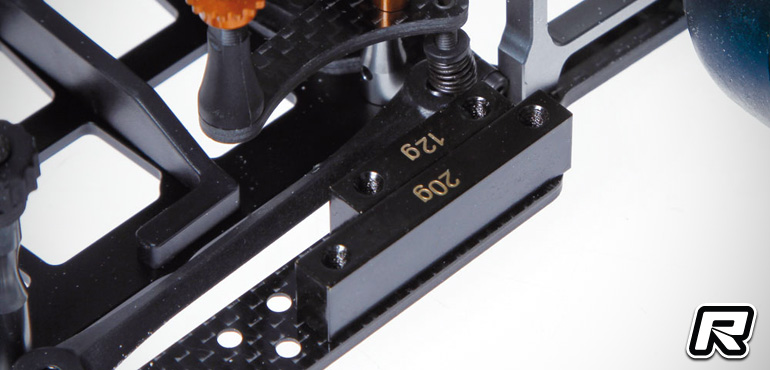

– New carbon fibre bolt-on side-pod plates to mount electronics and weights

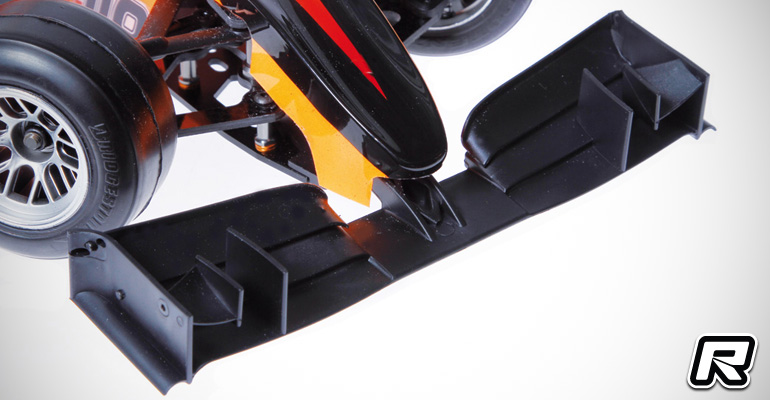

– Strong adjustable high downforce front nylon wing in a new more flexible composite material
– Carbon fibre rear top-deck, front top-deck, shock centre plate, rear pod plate, body mount plate and rear wing mount plate

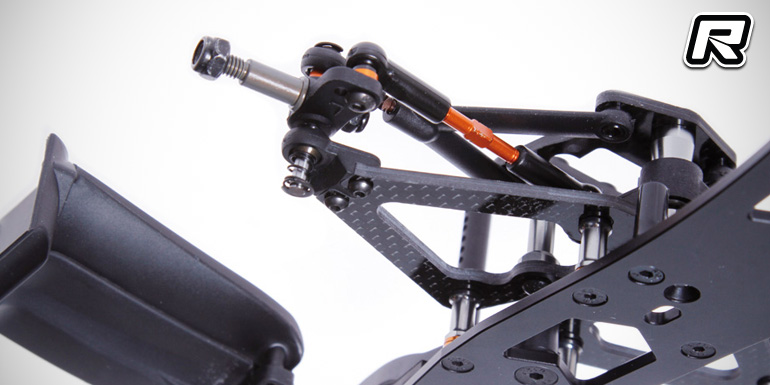

– Front suspension with strong 2.5mm lower carbon suspension plate and aero type composite upper suspension arms; fully adjustable
– Durable steering blocks with upper pivot ball and kingpin spring system
– Adjustable kingpin inclination with inserts
– Adjustable ride height to suit both rubber and foam tyres
– Caster adjustment with easy access inserts in the top carbon bracket
– Aluminium servo holder and new type steering saver system with adjustable Ackermann
– Lightweight RCC type central shock absorber with threaded housing for fine-tuning
– Spring-loaded link-type rear suspension with single tube
– Bind-free central pivot ball system

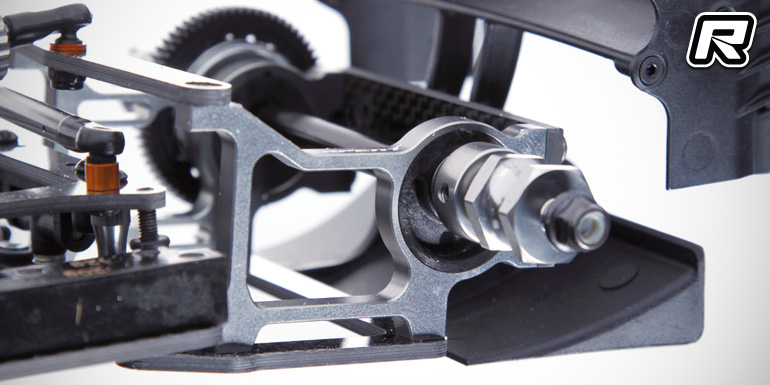

– Pan car style rear end with low CG aluminium/carbon power pod
– Strong and light aluminium rear axle

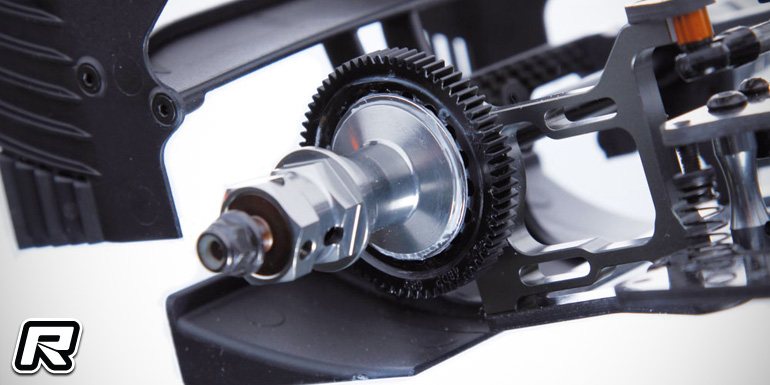

– Durable and light ball-differential, and light aluminium hex wheel-hubs with steel insert

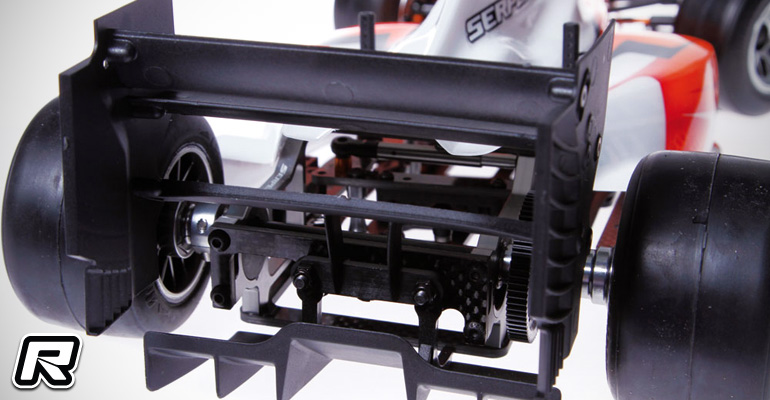

– Large durable adjustable 2 level composite rear wing
– High quality ball-bearings and fasteners
– Strong nylon body mounts with fine tuning nuts
– Optional wide front end available for use with foam tires
– Rear diffusor included
