June 14, 2017

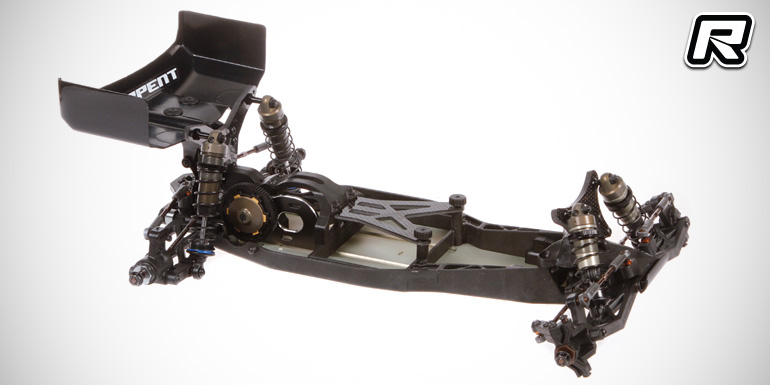

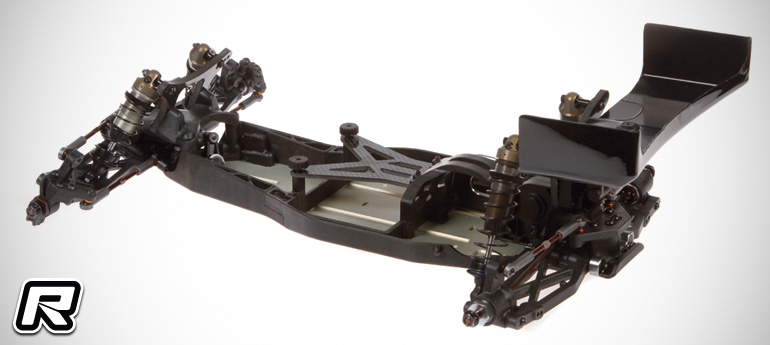

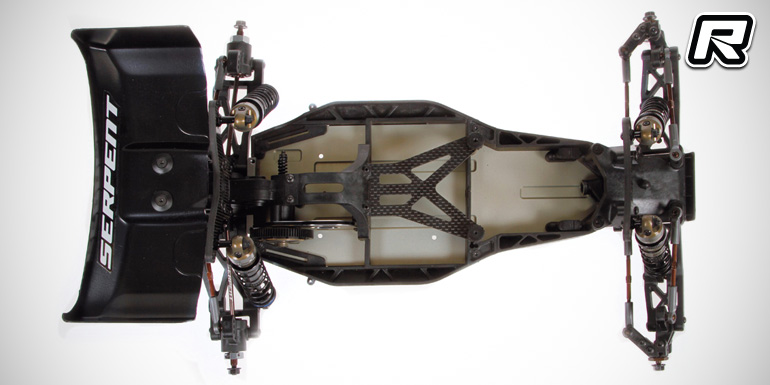

Serpent Spyder SRX2 MHT Team 2WD buggy kit

Coming from Serpent is the Spyder SRX2 MHT Team 2WD buggy kit. The buggy was designed to excel on medium to high traction surfaces such as carpet, astro turf and prepped clay and it features a 7075 T6 aluminium main chassis plate with separate aluminium front kick-up plate, it utilises carbon fibre front and rear shock towers and a 3-gear laydown transmission. Also included are a high-torque ball differential, 3-pad slipper clutch and a cab forward body shell. The shock absorbers are of a big-bore 12mm design with hard-anodised bodies and caps and the kit can be equipped with optional 3-gear stand-up, 4-gear stand-up or 4-gear laydown gearboxes with all needed mounting holes already existing in the kit chassis plate. The Team edition kit will hit stores very soon.

Features:
– High performance race geometry

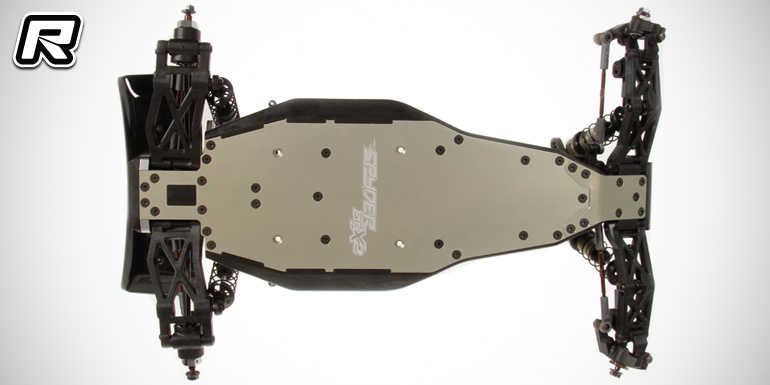

– Narrow hard-anodised aluminium 7075 T6 chassis with separate aluminium kick-up plate

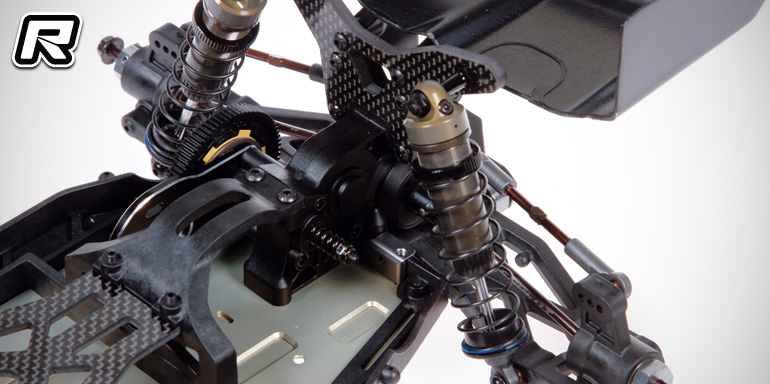

– Carbon fibre front and rear shock towers
– Laydown transmission/motor design with light 3-gear transmission

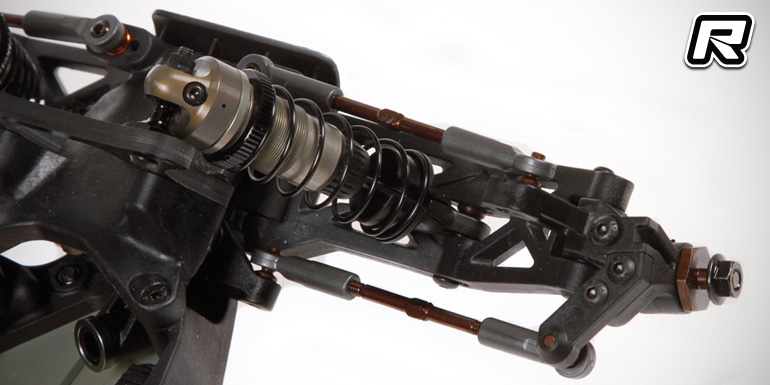

– Durable and efficient suspension front and rear
– Highly efficient steering Ackermann

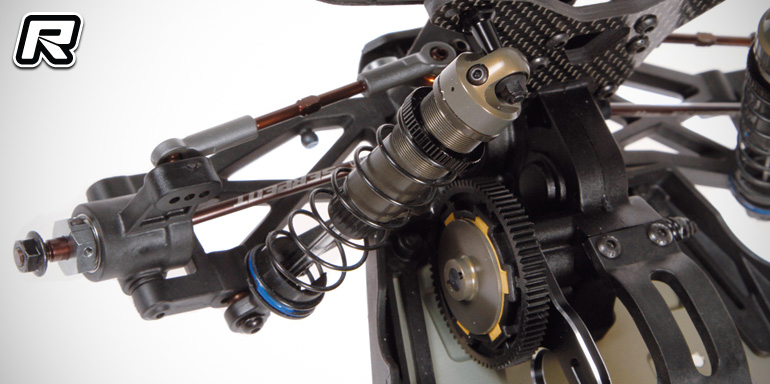

– Big bore 12mm shocks with dual system and hard anodised bodies and caps
– Smooth ball-differential (gear diff optional)
– 3-pad slipper clutch
– Composite battery holder
– Low cab forward MH body

Source: Serpent [serpent.com]
