December 6, 2017

HRC Racing Dual Star Pro multi-chemistry charger

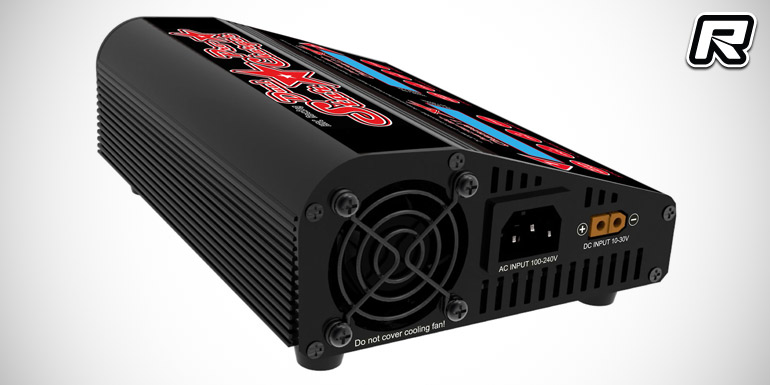

HRC Distribution have introduced the new HRC Racing Dual Star Pro multi-chemistry AC/DC charger. Offering two 200W charge outputs and an LiHV mode, the device is capable of up to 20A charge current with the internal balancers sporting a swift 1A balancing drain for fast charging. In addition the charger features two back-lit LCD screens, dual 4-button programming and an integrated 400W power supply.

Specifications:
– Input voltage: DC 11V~18V/AC 100V~240V
– USB Output: 5V/1A
– PC interface
– LiHV/LiPo/LiFe/LiIo: 2S to 6S per port
– NiCd/NiMH cells: 1 to 15 cells per port
– Pb (Lead Acid): 2V to 20V per port
– Charge current: 0.1A to 20A, adjustable
– Discharge current: 0.1A to 5A, adjustable
– Meter for internal resistance
– Current drain (balance): 1A/cell
– Charge power AC mode: 200W per port
– Charge power DC mode: 200W per port
– Includes two T-plug charging cables, 12V DC cable with crocodile connectors, two JST-XH balance boards
– Multiple Security System

Source: HRC Distribution [hrcdistribution.com]
