Hexfly HX series 1/8th & 1/10th speed controllers

Hexfly announces the release of its new line of RC brushless electronic speed controllers for 1/8th and 1/10th scale electric vehicles. The ESCs are manufactured by Hobbywing and fit many different classes and scales of RC vehicles. Hexfly currently offers four different ESC models to choose from, the HEX10, HEX8, HEX6 6S, and HEX6 8S. While the HEX10-120 is perfect for all 1/10 scale monster trucks, stadium trucks, and short course trucks, it can also be used in cars and buggies. HEX8-150 is usable for all 1/8 scale trucks, touring cars, buggies, and truggies. The HEX6 for 1/6th scale vehicles comes in two different configurations, 6S or 8S. Each brushless ESC comes with necessary mounting and wiring hardware, which allows the consumers to solder on their own choice of battery connector. Wires, shrink tubing, mounting tape, and zip ties are all included with each ESC.

HX-HEX10-120 specifications:
– Application: 1/10 vehicles
– Input Voltage: 2-4s LiPo/6-12 Cells NiMH
– Con./Peak Current: 120A/830A
– BEC Voltage: Switch Mode: 6V/7.4V, 4A
– Motor/Battery Wiring: 12AWG
– Battery Connectors: Not Included (requires soldering)
– Motor Connectors: 4.0 Bullet Connectors (Female)
– Supported Motors: Sensorless Brushless
– Dimensions: 49×39.5×34.7mm
– Weight: 105g
– Waterproof

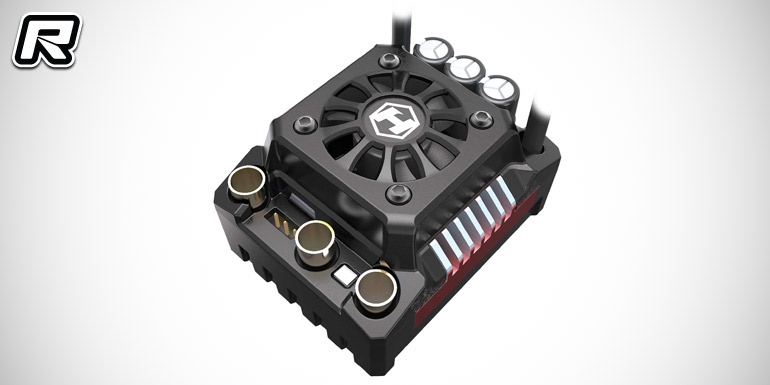

HX-HEX8-150 specifications:
– Application: 1/8 vehicles
– Input Voltag: 3-6S LiPo/9-18 Cells NiMH
– Con./Peak Current: 150A/950A
– BEC Voltage: Switch Mode: 6V/7.4V, 6A
– Motor/Battery Wiring: 10AWG
– Battery Connectors: Not Included (requires soldering)
– Motor Connectors: 6.5 Bullet Connectors (Female)
– Supported Motors: Sensorless Brushless
– Dimensions: 59.8x48x36.8mm
– Weight: 173g
– Waterproof

HX-HEX6- 160-6S specifications:
– Applications: 1/6, 1/7, 1/8 vehicles on 6S
– Input Voltage: 3-6S LiPo/9-18 Cells NiMH
– Con./Peak Current: 160A/1050A
– BEC Voltage: Switch Mode: 6V/7.4V, 6A
– Motor/Battery Wiring: 10AWG
– Battery Connectors: Not Included (requires soldering)
– Motor Connectors: 6.5 Bullet Connectors (Female)
– Supported Motors: Sensorless Brushless
– Dimensions: 70x56x46.5mm
– Weight: 240g
– Waterproof

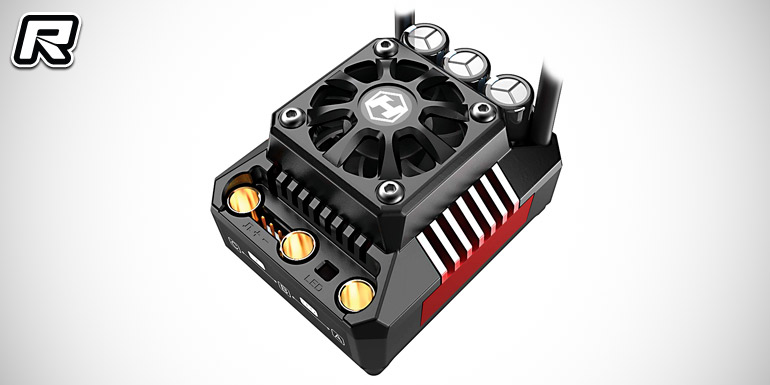

HX-HEX6- 160-8S:
– Applications: 1/6 and 1/7 vehicles on 6S/8S
– Input Voltage: 3-8S LiPo/9-24 Cells NiMH
– Con./Peak Current: 160A/1050A
– BEC Voltage: Switch Mode: 6V/7.4V, 6A
– Motor/Battery Wiring: 10AWG
– Battery Connectors: Not Included (requires soldering)
– Motor Connectors: 6.5 Bullet Connectors (Female)
– Supported Motors: Sensorless Brushless
– Dimensions: 70x56x46.5mm
– Weight: 240g

Source: Redcat Racing [redcatracing.com]
