April 19, 2018

SkyRC B6 Nano 320W DC micro charger

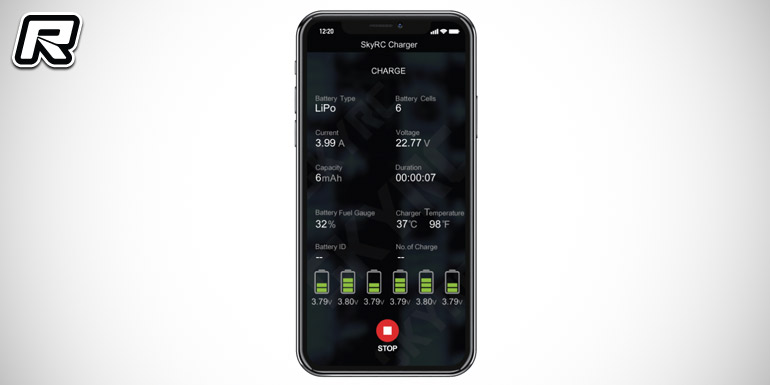

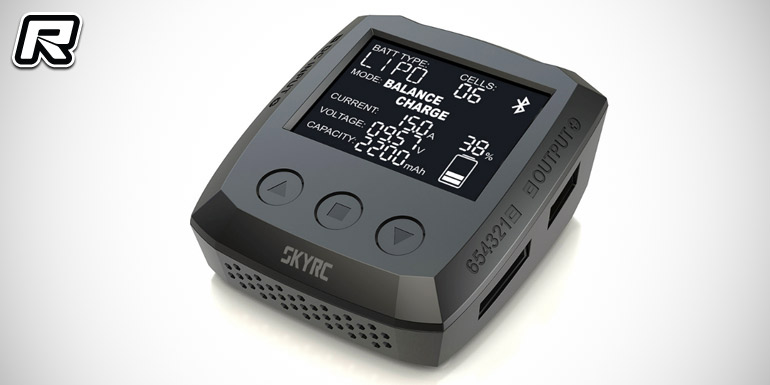

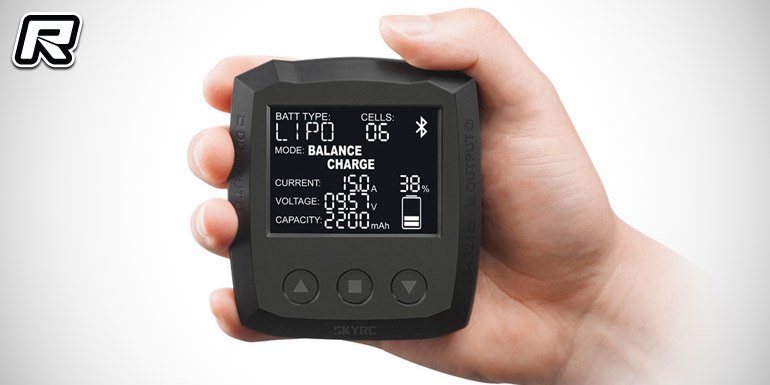

Coming soon from SkyRC is the B6 Nano 320W DC micro multi-chemistry charger. It measures a compact 76x85x37mm and weighs in at only 130g but packs a bunch of features such as a 50×37.5mm black screen display, touch buttons, up to 15A charging current, and 6S LiPo-compatibility. A LiHV mode allows to use the device with the latest generation of high-voltage LiPo batteries and thanks to Bluetooth connectivity the charger can controlled, monitored and upgraded using iOS or Android mobile device apps.

Specifications:
– Input voltage: DC9-32V
– Max charge power: 320W
– Max discharge power: 5W
– Charge current range: 0.1-15.0A
– Discharge current range: 0.1-3.0A
– LiPo/LiFe/Lilon/LiHV cells: 1-6S
– NiMH/NiCd: 1-5 cells
– Pb battery Voltage: 2-20V
– Net weight: 130g
– Dimension: 76x85x37mm

Source: SkyRC [skyrc.com]
