November 30, 2018

Roche P12 Evo 1/12th scale pan car kit

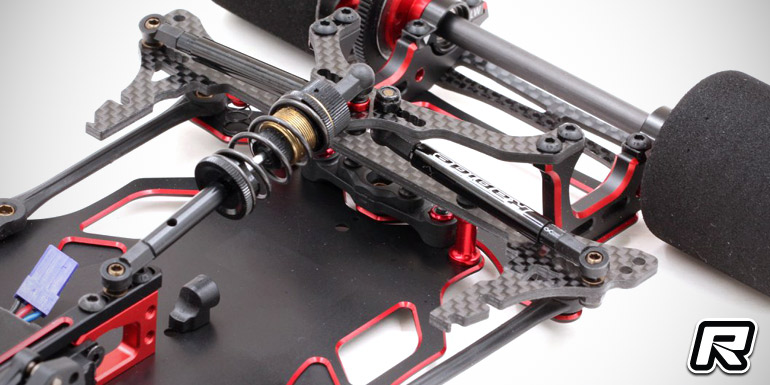

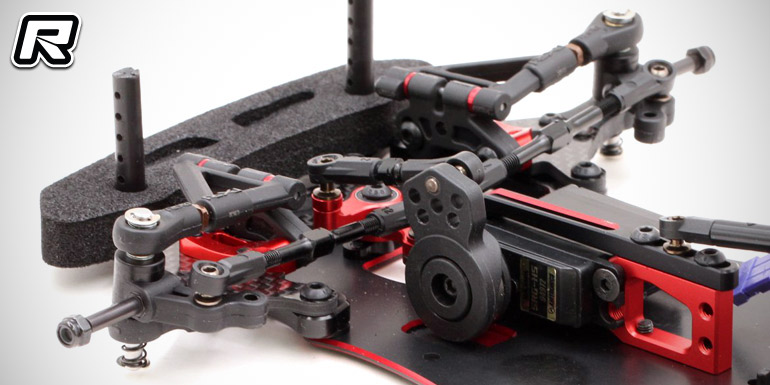

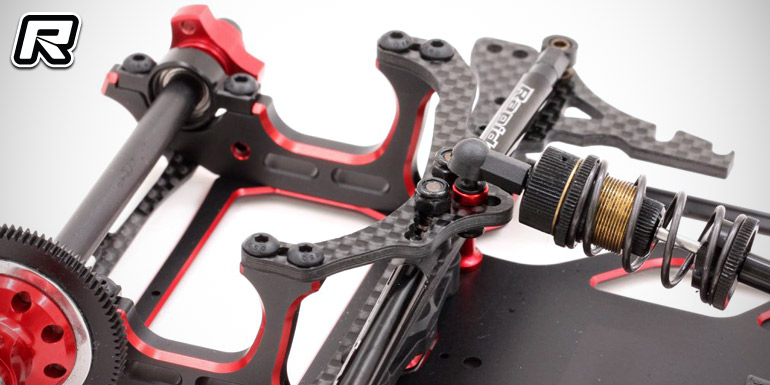

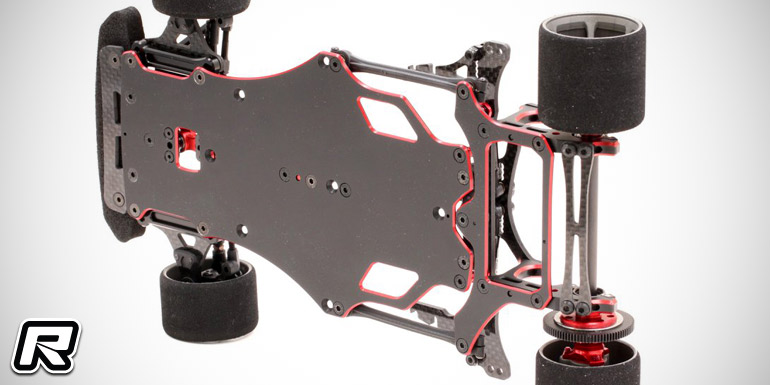

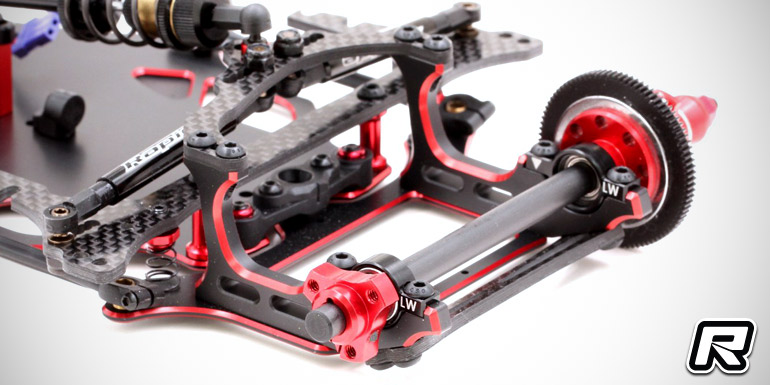

Available soon from Roche is the P12 Evo 1/12th scale pan car kit. The 2018 European Stock, Masters of Foam and BRCA Championship winning car comes with a newly designed 2.0mm 7075 aluminium main chassis and rear pod plate while the updated 7075 aluminium low centre of gravity motor mount ensures a lower overall CG. The new design graphite top and rear pod plate are compatible with the gear diff weight balancing system and the aluminium floating servo mount us mini and micro size compatible for 28-31mm and 31-33mm servos. Other new parts include a bell crank steering system with 6-step Ackermann adjustment, new design carbon fibre lower arms and a newly developed aluminium front bulkhead with long/short wheelbase adjustment The kit is rounded out by a new carbon fibre front bumper and a large foam bumper.

Features:
– New design 2.0mm 7075 aluminium main chassis and rear bottom pod
– New design 7075 aluminium low CG motor mount
– New design graphite top plate and rear pod plate are compatible the gear diff weight balancing
– New design graphite rear chassis brace
– New design centre damper position

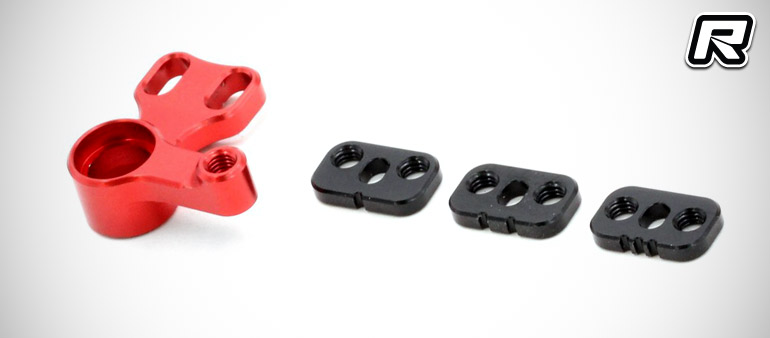

– New design 7075 aluminium adjustable floating servo mount/centre damper mount. Mini and micro size servo compatible, width adjustable 28-31mm and 31-33mm
– New design graphite front lower arm and plastic pivot
– New design 7075 aluminium front lower bulkhead. Short/long wheelbase adjustable
– New design bell crank steering system. 6-steps Ackermann adjustment
– New design graphite front bumper
– New urethane large foam bumper
– New 64 pitch (16 balls) spur gear

Source: Roche [rocherc.com]
