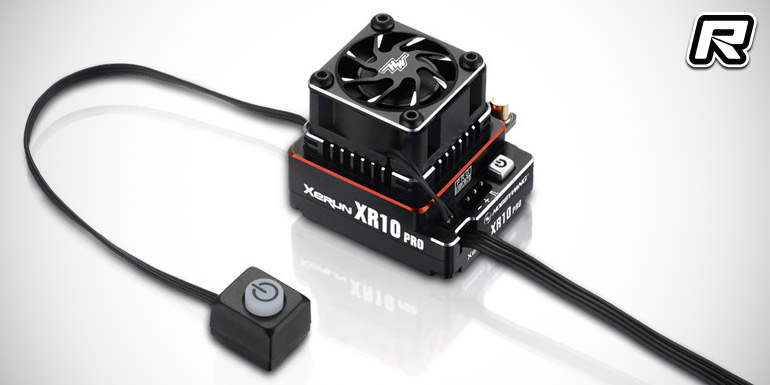

Hobbywing XR10 Pro G2 competition ESC

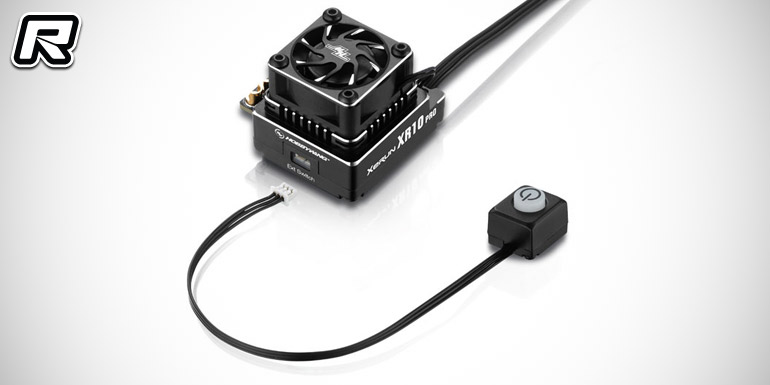

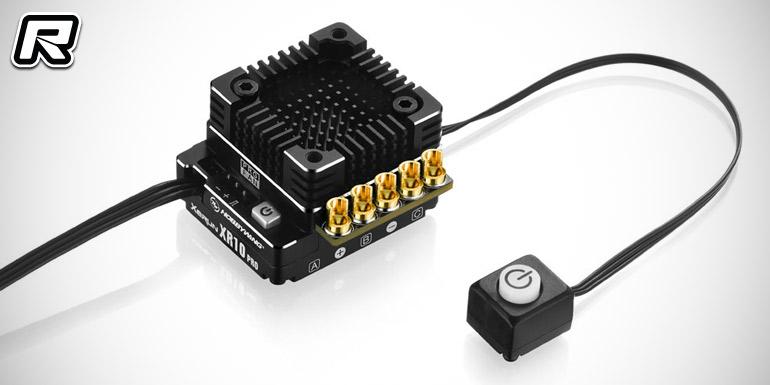

Hobbywing have announced the release of their new XeRun XR10 Pro G2 brushless competition speed controller for 1/10th scale classes. The updated variant of the ultra-popular XR10 Pro features high-performance 32-bit M4 microprocessing for super-fast and precise control. A built-in reverse battery polarity protection protects both the controller and battery when things are getting a bit hectic in the pits and a range of new accessories such as non-polarised capacitor banks and over-sized fan mounts complement the G2 ESC. The latter are machined aluminium heatsink design frames and allow the use of 30mm fan units in high ambient temperature conditions. New for the G2 is also the ability to use an external switch in case the internal one is hard to reach and in addition to the greatly improved hardware the speedo also received some new software features such as a greater PWM frequency range for throttle and brake, ensuring optimised control when needed. Also new are finer adjustable turbo increase and decrease rates as well as a 101 percent to 150 percent brake range, a feature that comes in handy when running high-turn stock motors with aggressive gear ratios. New for the G2 is also the ability to adjust motor rotation direction and the built-in BEC system offers adjustable 5V to 7.4V and 10A output. Last but not least comes a softening function that will improve vehicle control in high-power modified classes. Like the previous controller the G2 is programmable and upgradable using Hobbywing’s WiFi Express module and an iOS or Android mobile device with a more traditional programming box being also available. The controller is available with black/silver, orange or red case details and it is available now.

Specifications:
– Classes: 1/10th scale
– Continuous current: 160A
– Voltage input: 2S LiPo
– BEC voltage. 5V-7.4V
– Dimensions: 37.5×30.9×32.5mm
– Weight: 95g
– Motor limit: 4.5T on-road, 5.5T buggy

Source: Hobbywing [hobbywing.com]
