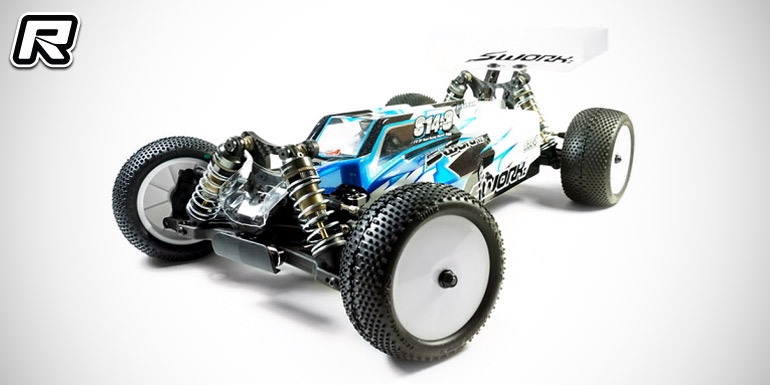

SWorkz S14-3 Dirt 1/10th 4WD electric buggy kit

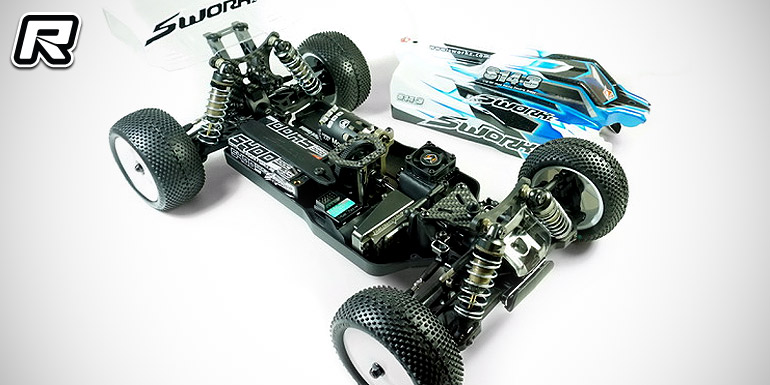

SWorkz have introduced their new S14-3 Dirt 1/10th scale 4WD electric buggy kit developed especially for dirt tracks. The kit includes a centre gear differential for improved bump and lower traction handling with one of the unique features of the new buggy being the 5mm axle universal cross driveshafts that are specially designed and made from SWorkz’s 1/8th buggy steel material. For dirt off-road racing, the designers kept the original S14-3 C-hub steering system but moved the motor and battery positions further back for improved traction. With this new centre layout, the S14-3D has an improved overall balance. The front and rear suspension arms are made of strong composite nylon materials to cope with the rigours of off-road racing and the 7075 aluminium chassis with centre flex system provides more rear end grip. For dirt racing, the S14-3D also comes standard with a Pro-composite hard material side guard set. Also helping with overall traction are the new front and rear upper carbon fibre decks. The kit is rounded out by a refined shock system for optimised bump handling.

Key features:

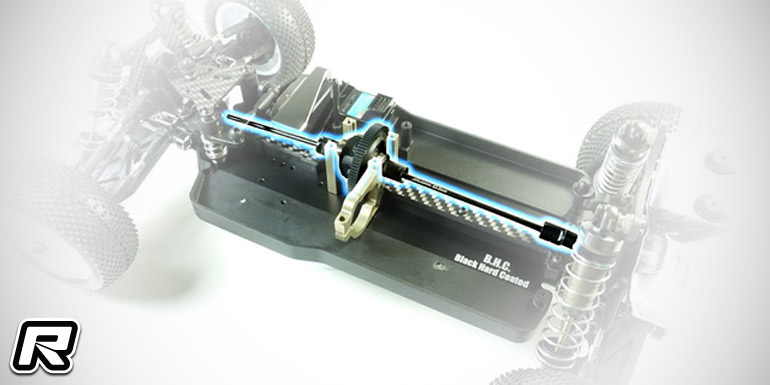

– 7075 aluminium B.H.C Black Hard Coated chassis with a new centre flex system

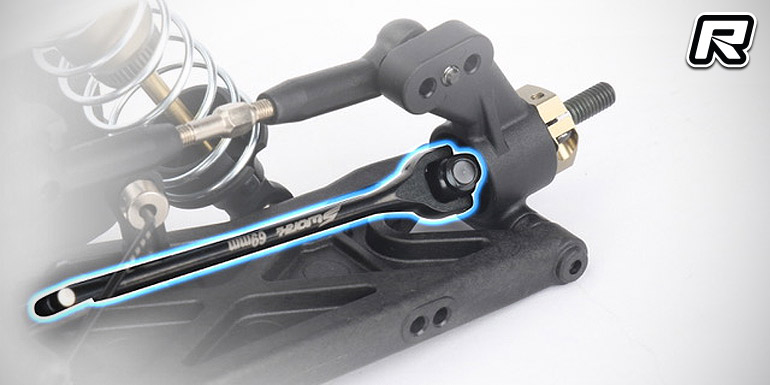

– Unique 5mm axle universal cross driveshafts
– New centre layout with gear differential
– New Pro-composite carbon fibre shock towers with new geometry shock positions
– New design shock bodies with 3mm Teflon hard-coated shafts. Including 2-hole 1.6mm and 1.7mm shock piston in black POM material
– Front and rear arms made from strong composite nylon materials

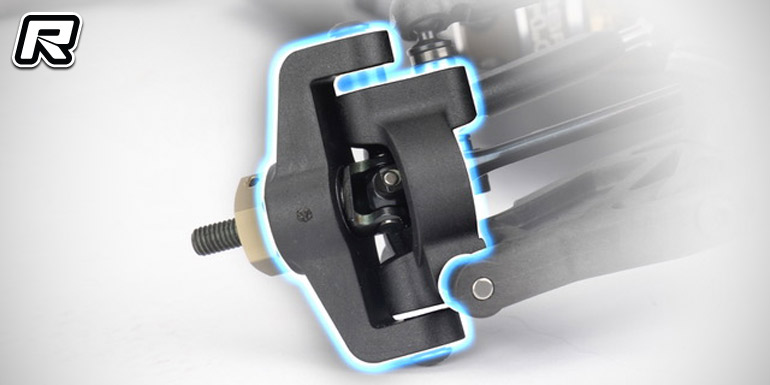

– Kit comes standard with both, 9 and 11 degree front C-hubs

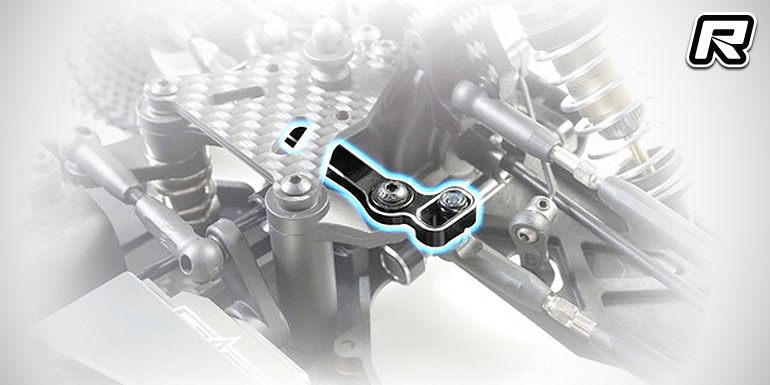

– New adjustable steering plate with new bellcrank
– Full aluminium arm holders with adjustable toe-in block
– Standard with Pro-composite hard material side guard

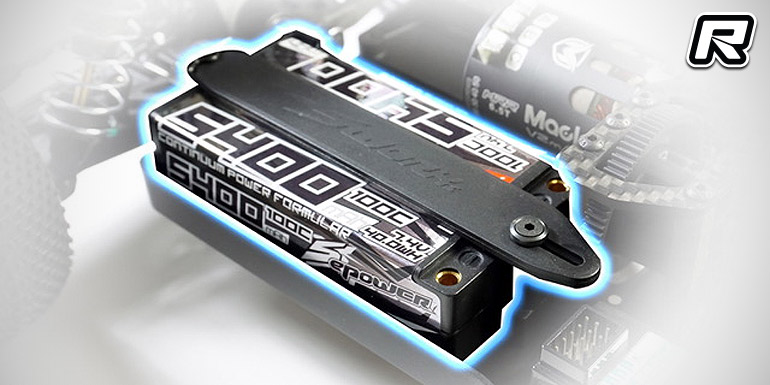

– 10mm moving back for battery position.
– Aluminium steering servo mount

Source: MW RC Cars [mwrccars.at]
