Team Associated B6.2 & B6.2D Team Kit 2WD buggies

Team Associated have unveiled their new B6.2 and B6.2D Team Kit 2WD buggies. The B6 platform introduced the use of two separate chassis configurations and the new B6.2 continues this theme. The B6.2 will be the buggy of choice for high-grip carpet or turf track surfaces with its 3-gear Laydown transmission assembly and anti-roll bars for optimal mass balance. The B6.2D includes both 4-gear Layback and Laydown transmission assemblies to fine-tune mass balance to track conditions; add to that the addition of +1 Ackermann plates and gull wing suspension arms to tune the steering for razor-sharp feel and control. Both cars share many great features, such as an easy-access differential, outer rear hinge pins captured with bolt head and locknut for increased durability, new symmetric rear arms that can be flipped to allow an in- between rear shock mounting position, and a new slipper assembly. The setups and tuning parts remain interchangeable between the two configurations.

B6.2 features:
– Lightweight 7075-T6 hard anodized and +3mm increased length
– New symmetric 75mm rear arms with improved geometry and stiffness can be flipped to allow an in-between rear shock mounting position
– Longer rear arm (75mm) improves stability and jump landing
– Outer rear hinge pin captured with bolt head and lock nut for increased durability

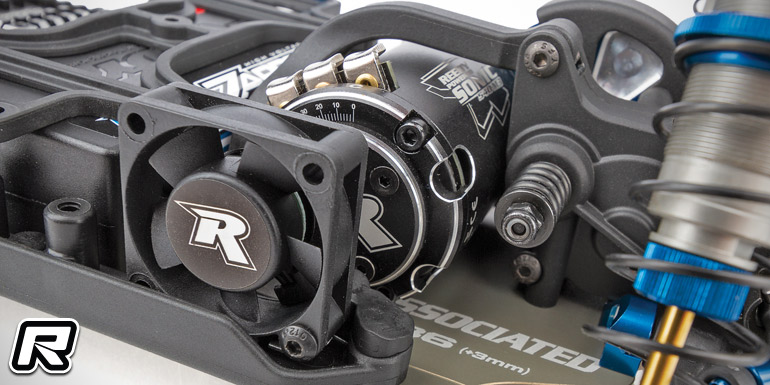

– Updated left side rail with motor fan mount (fan not included)

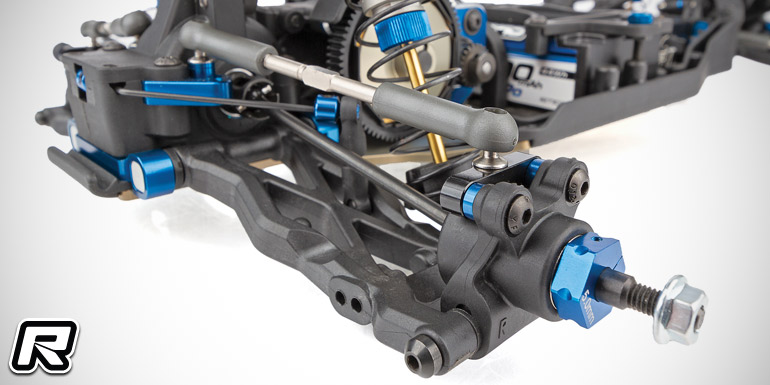

– New rear hub assembly with modular vertical ball stud camber link mount and axle height adjustment

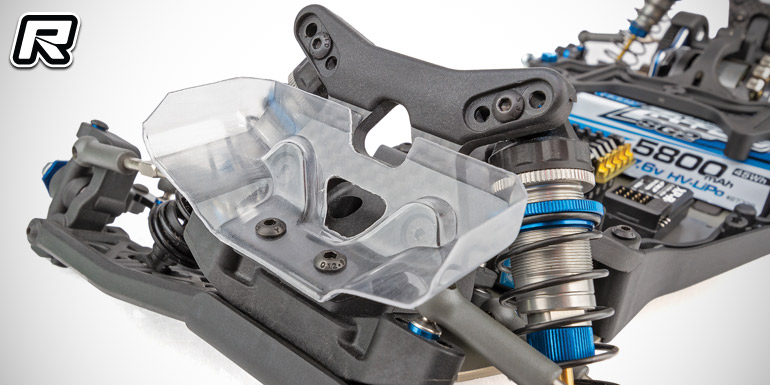

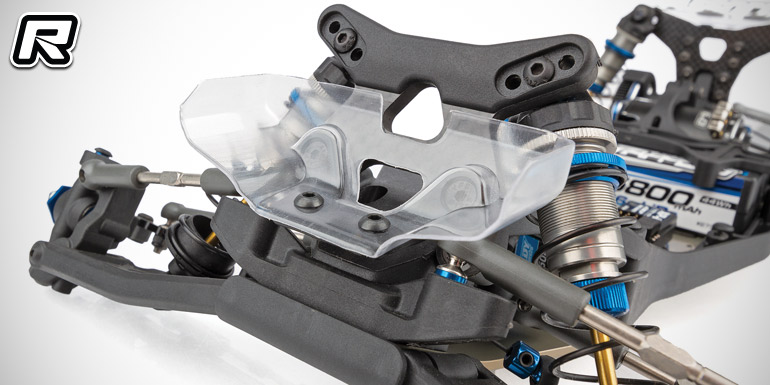

– New front wing mount and front wing included

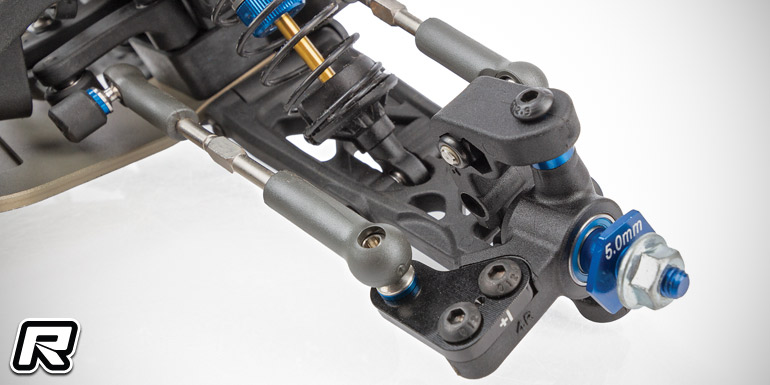

– Bolt-on +1 steering block arms for improved steering response
– 69mm CVA bones for reduced bone plunge and minimized friction at drive pin

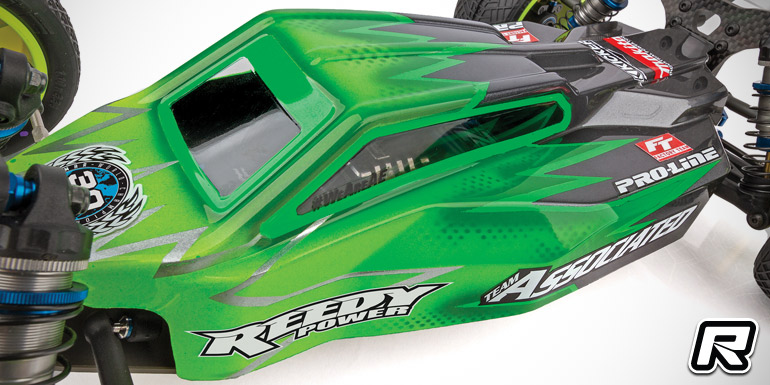

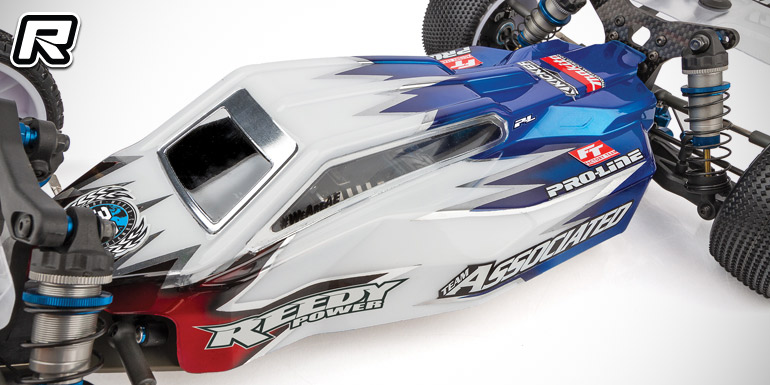

– New body design with lower center of mass
– Clear body and wing included
– 24g and 36g steel chassis weights included for improved balance and lower overall center of mass
– 5mm aluminum clamping wheel hexes
– Fluid filled gear differential

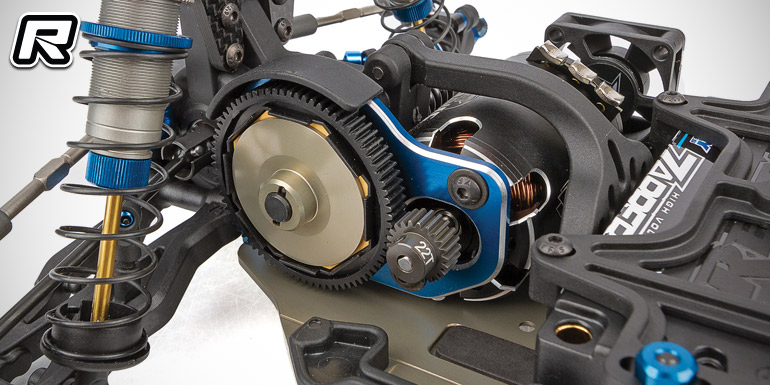

– 3-gear Laydown Stealth transmission for lower and forward CG

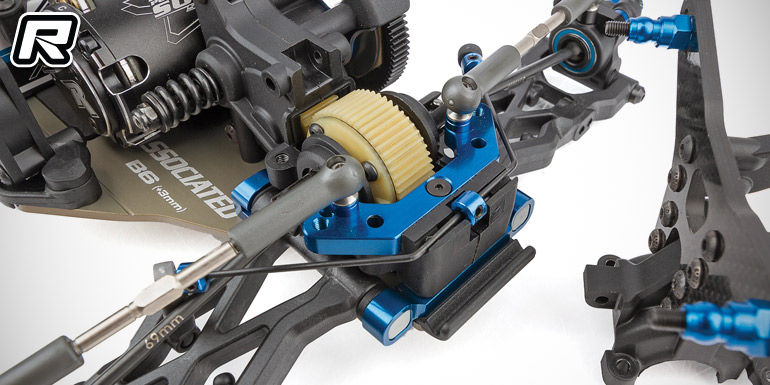

– Differential height adjustment with 0, 1, 2, and 3mm inserts included
– 7075-T6 aluminum arm mounts with optimized roll center positions and inserts for tuning anti-squat and toe adjustments
– Heavy-duty V2 routed graphite front shock tower with tower guard
– Heavy-duty V2 routed graphite rear tower, standard
– V2 12mm Big Bore threaded aluminum shocks with X-rings

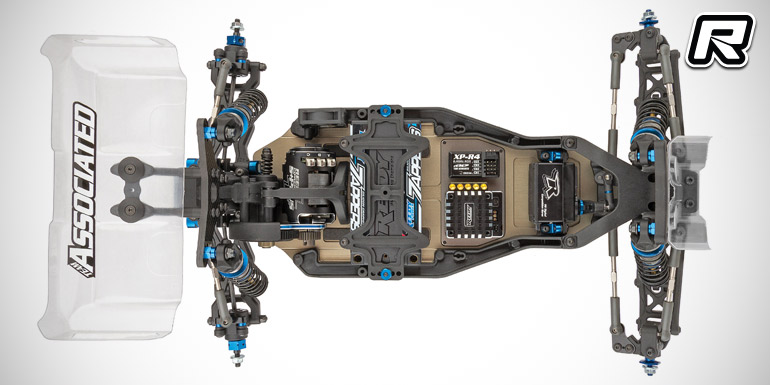

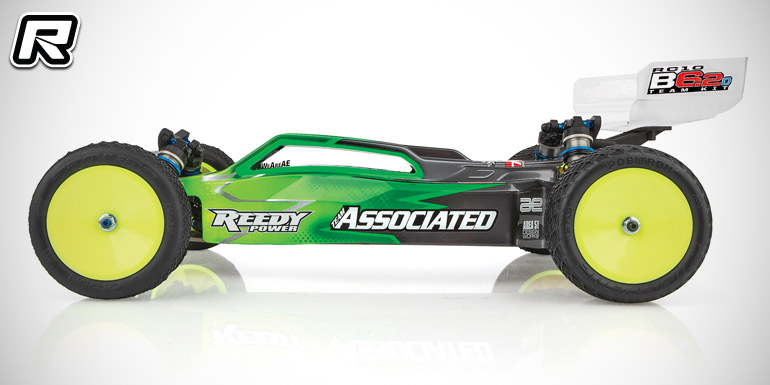

B6.2D features:
– New symmetric 73mm rear arms with improved geometry and stiffness can be flipped to allow an in-between rear shock mounting position

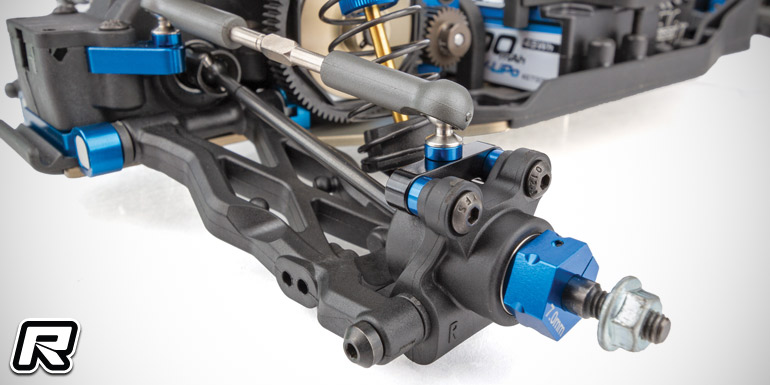

– New rear hub assembly with modular vertical ball stud camber link mount and axle height adjustment
– Bolt-on +1 steering block arms for improved steering response
– New body design with lower center of mass
– Clear body and wing included
– New front wing mount and front wing included
– Outer rear hinge pins captured with bolt head and lock nut for increased durability
– Updated left side rail with motor fan mount (fan not included)
– 67mm CVA bones for reduced bone plunge and minimized friction at drive pin

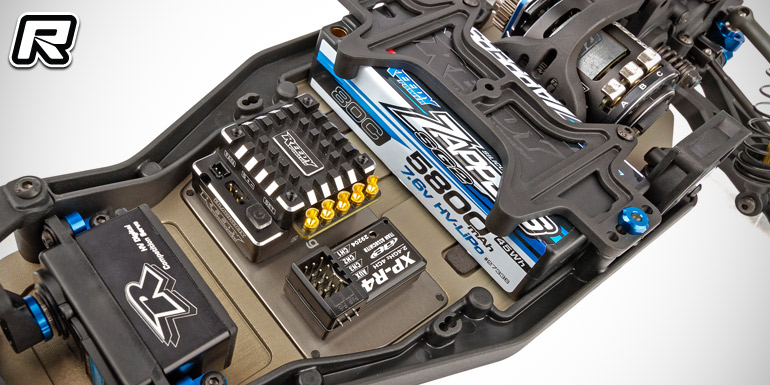

– 13g aluminum chassis weight included for improved mass balance and easy electronics removal
– 7mm aluminum clamping wheel hexes – Ball differential included

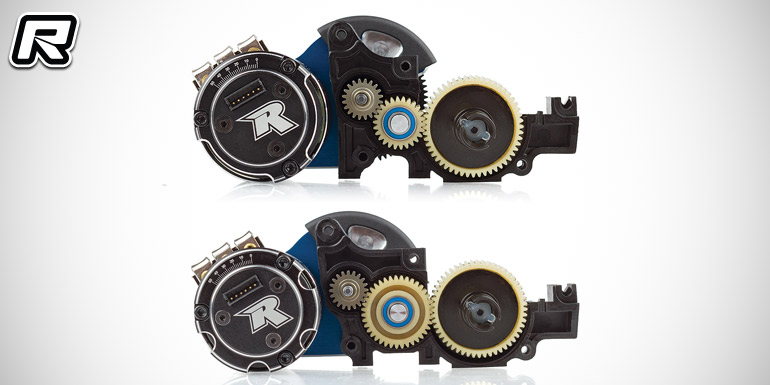

– Both Layback and Laydown StealthTM transmission assemblies included to fine tune mass balance to track conditions

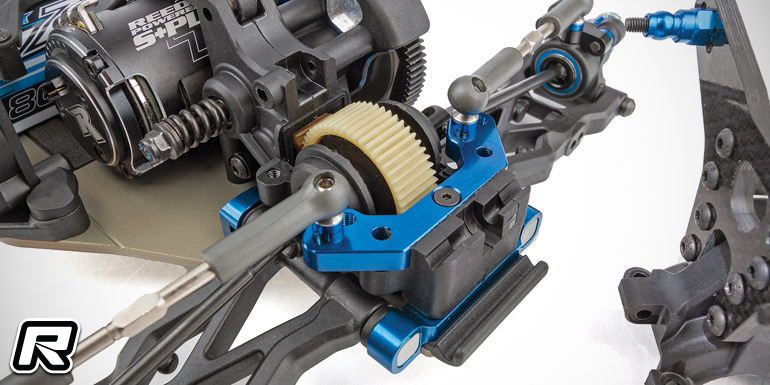

– Differential height adjustment with 0, 1, 2, and 3mm inserts included
– 7075-T6 aluminum arm mounts with optimized roll center positions and inserts for tuning anti-squat and toe adjustments
– Heavy-duty V2 routed graphite front shock tower with tower guard
– Heavy-duty V2 routed graphite rear tower, standard
– V2 12mm Big Bore threaded aluminum shock with X-rings
– Machined shock pistons for more precise fit and smoother operation
– V2 springs for a more reactive and nimble feel
– Aluminum rear ballstud mount with three link position options

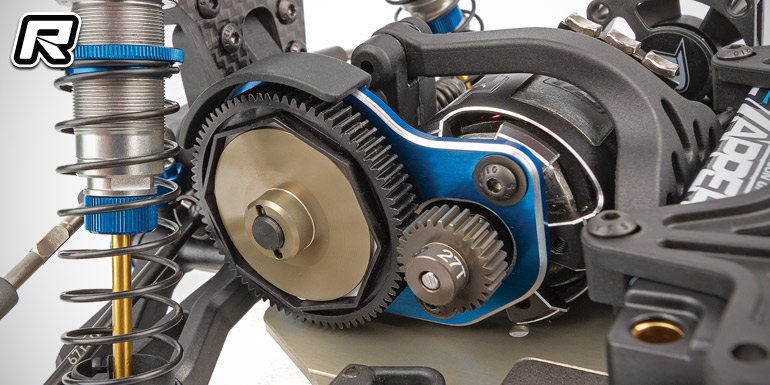

– Lightweight aluminum one-piece top shaft and gear
– Factory Team upgraded ball bearing kit included (now oiled instead of greased for less drag)

Source: Team Associated [teamassociated.com]
