December 11, 2020

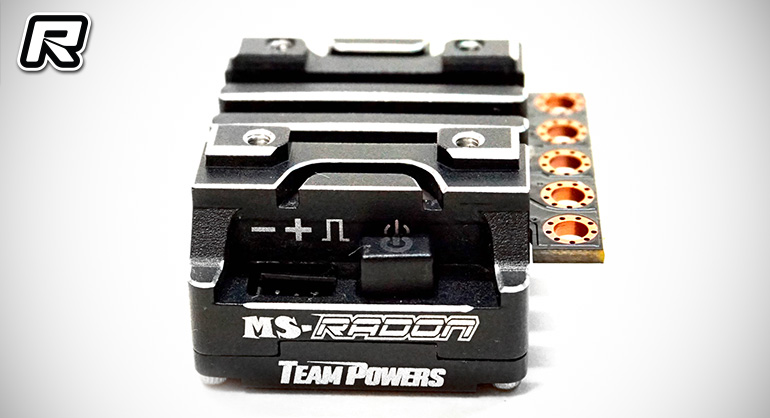

Team Powers Mini-spec Radon ESC

From Team Powers comes their new smaller Mini-spec Radon speed control. Approximately 30% smaller than the standard Radon Series Speed control it is compatible with Radon series speed control firmware. Supporting Ch3/Ch4 Aux Input signal to control different item function values, this can be set directly from the LCD card. Comes supplied with 14AWG high density copper soft wire.

Specifications:
– Controls: Forward/Brake/Reverse
– Input Voltage: 2S-3S lipo
– BEC: 6V/7.4V selection/max ~5A
– Motor Limit: 6.5T or over
– Max current: ~100A per phase
– Size: ~25x32x16mm (without fan installed)
– Weight: ~20g (not include wiring and fan)

Source: Team Powers [team-powers.com]
