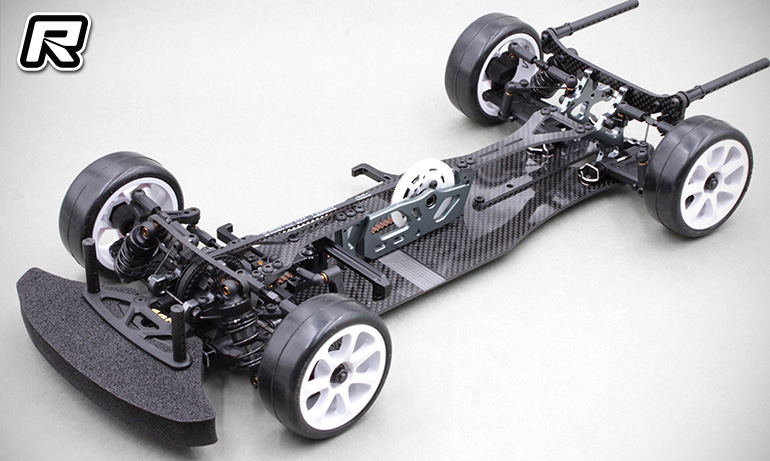

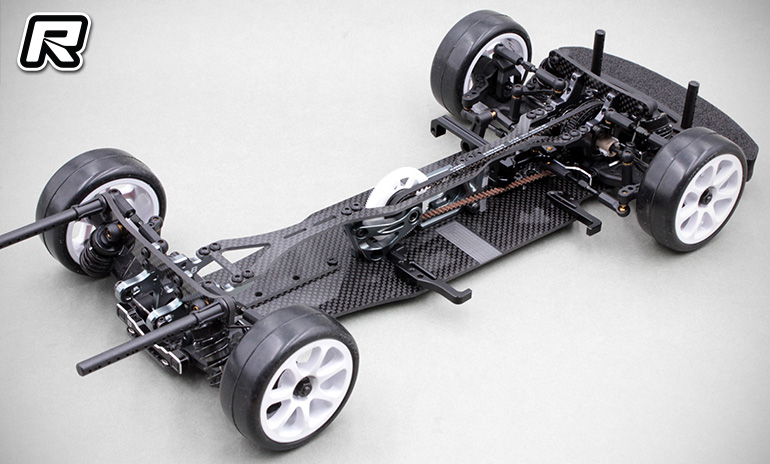

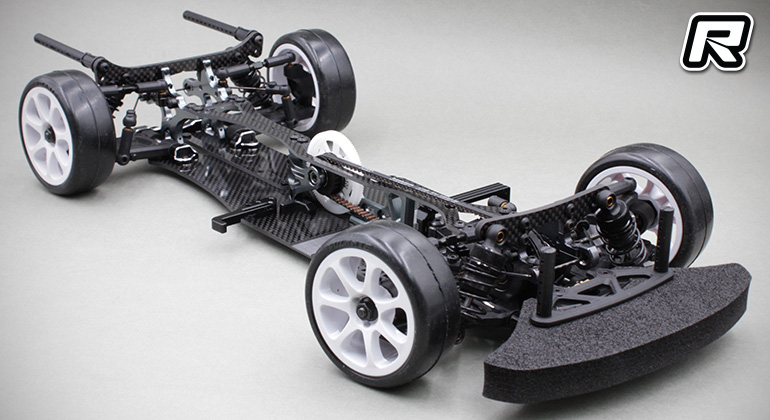

Destiny RX-10F 2.0 FWD 1/10th scale chassis

Destiny have introduced their new RX-10F 2.0 FWD 1/10th scale chassis. Utilising a new mid motor platform design, the motor mount and centre layshaft are combined in a single bulkhead. Up front there is a new clamp design single bell-crank steering system, with 4 different Ackermann positions, that features two large ball bearing for improved reliability and precision. Integrated into the bumper is the ability to mount up to two pieces of 40g weights to easily help balance out the chassis for different conditions. The new 2.25mm slim main chassis, 2.0mm multi-flex design upper deck and 3.0mm front and rear lower shock towers are all made from high grade USA graphite as are the all new graphite front and rear chassis braces. Other changes include a new single piece floating servo mount. updated high quality hard coated short dampers with POM pistons and 20mm damper springs, new front and rear 7075 aluminium upper bulkhead and linkage mounts, new aluminium rear bulkheads, new aluminium battery brackets and completing the updates, front spring steel double CVD are included as standard for smoother cornering.

Destiny RX-10F 2.0 NEW Features

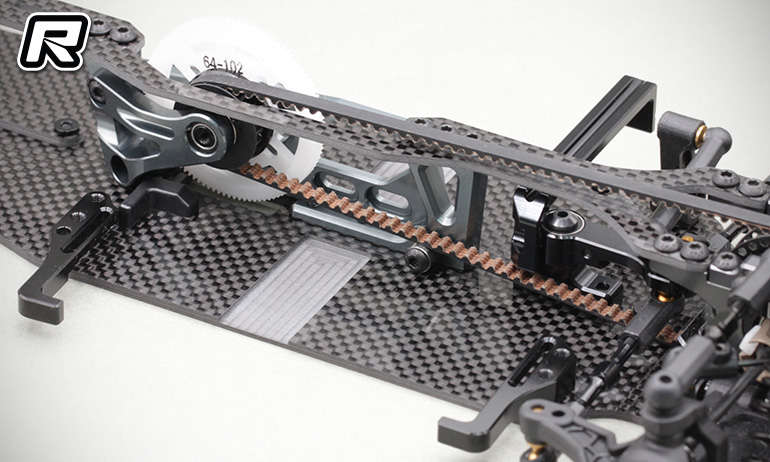

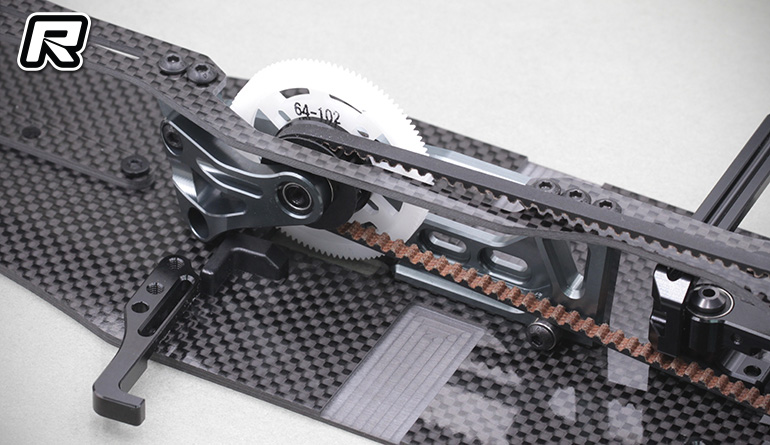

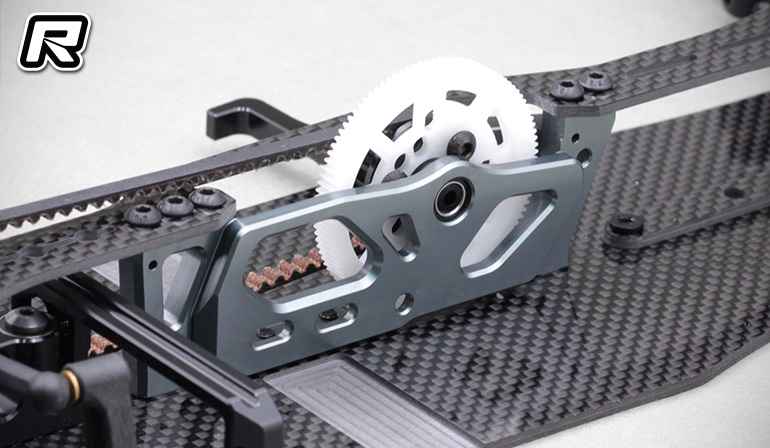

– New middle motor platform design motor mount and solid layshaft bulkhead.

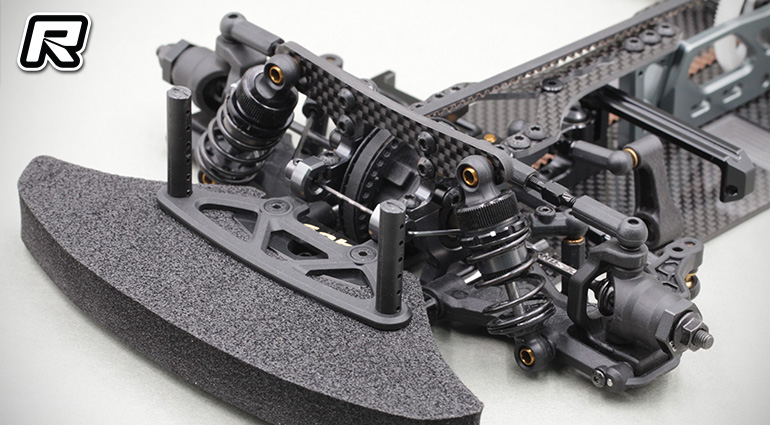

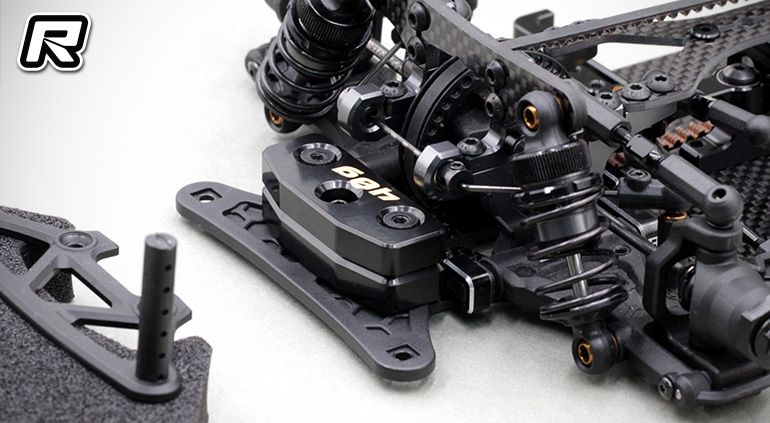

– New two pieces of 40g chassis balancing weight and new front foam bumper.

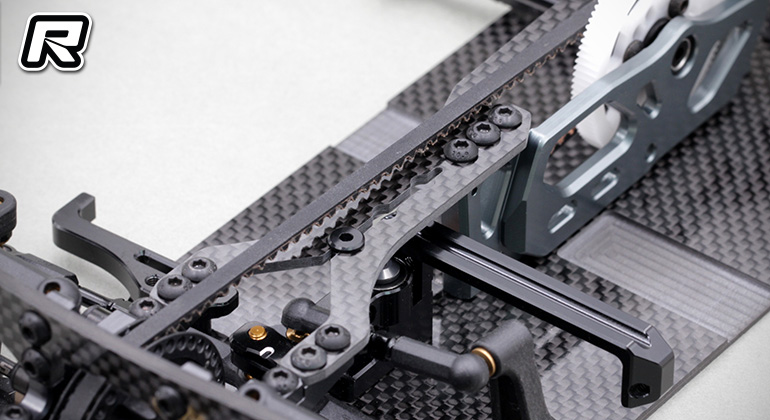

– New graphite front and rear chassis braces.
– New design single piece 7075 aluminium floating servo mount.

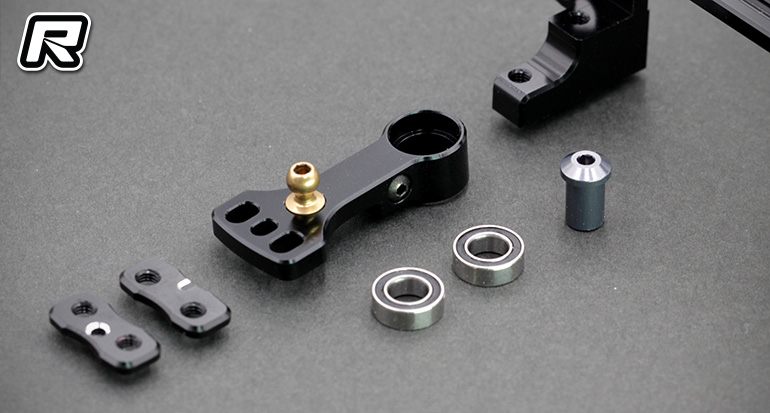

– New clamp design single bell-crank steering and install with two pieces of 5x9x3mm large ball bearing as more reliable. 4 different Ackermann angle selectable.
– New 2.25mm USA high grade graphite materials for narrow design main chassis, 2.0mm multi-flex design upper deck and 3.0mm front and rear lower shock towers.

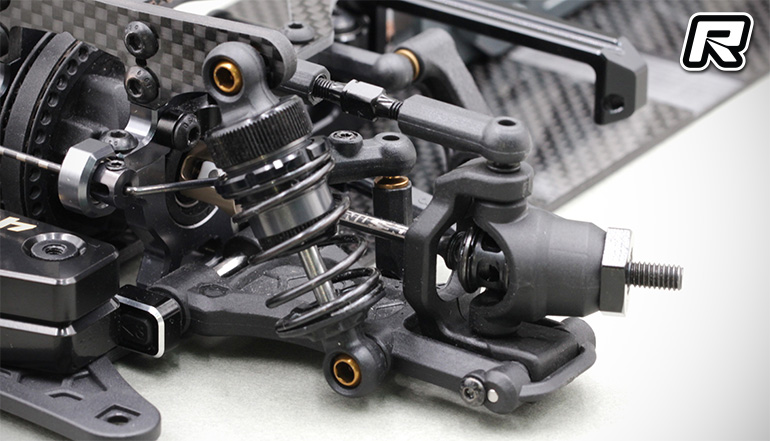

– New high quality hard coated short dampers with POM pistons and 20mm damper springs.

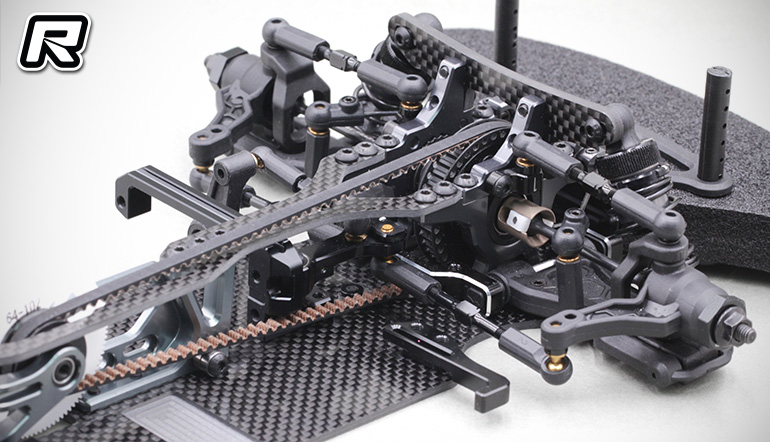

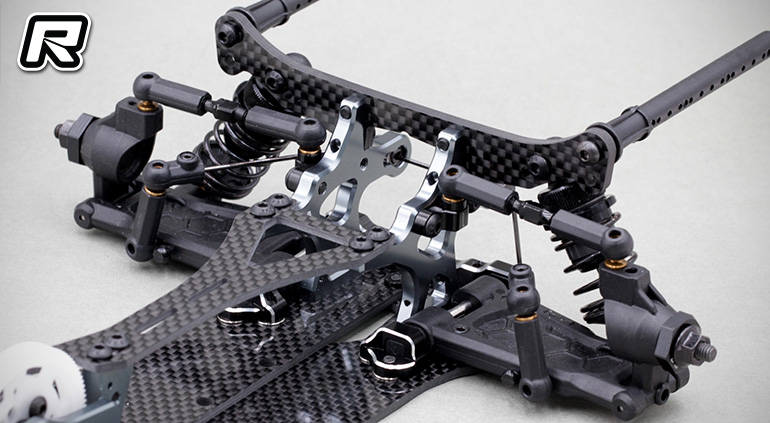

– New design front and rear 7075 aluminium upper bulkhead and linkage mount. It makes fine adjustment on roll centre.
– New 7075 aluminium rear bulkheads.
– New 7075 aluminium battery brackets.
– Front spring steel double CVD included as makes smoother in corner.

Destiny RX-10F 2.0 Features
– 7075 aluminium front and rear suspension mounts. Three different size of suspension mounts to make wider range adjustment on track width from 40.7-49.5mm.
– Plastic eccentric bushing for suspension. Fine adjustment on toe-in and toe-out angle in 0.3 degree per step.
– New design high grade composite front and rear lower suspension arms, steering knuckles, c-hubs and rear hubs plastic parts.
– 7075 aluminium front lower bulkheads.
– Transmission ratio 38T/20T in ratio 1.9.
– 2/4/6 deg caster insert is selectable to assembly to c-hub. Large open on c-hub for easy install or remove front CVD.
– In-line design on steering knuckle. Re-position ball bearings and CVD joint centre. Maximum decrease the noise and wheel vibration. Maximum increase steering efficient and cornering speed.
– 7075 aluminium wheel adaptors. Lightweight and reliable on drivetrain.
– Full set low friction coating aluminium damper balls and ball studs.
– High precision 4 gears differential with 7075 aluminium weight reduced gear drive cups.
– 7075 aluminium steering and upper link turnbuckles. Black colour anodised.
– Bearing supporting front and rear anti-roll bar system.
– 64P 102T high quality spur gear.
– Full set high grade ball bearings.

Source: Destiny [destinyjapan.com]
