Power HD W50-360° & T70-12V servos

Coming from Power HD is their professional winch servo W50-360° and 12V high voltage crawler servo T70-12V. The W50-360 degree winch servo, has a maximum output torque of 50KG/cm, working on the VP-VS4-10 chassis and other modified winch models. This full aluminium case servo is equipped with steel towing rope, metal spool and hook, etc. and can be easily retractable and controlled through a multi-channel receiver. The T70-12V high voltage steering servo has a maximum output torque of 70KG/cm, separate wiring for signal and power supply. You can directly connect to the balance connector of 3S LiPo batteries for power supply, which offers sufficient current for the servo to work at its best performance. This T70-12V servo is ideal for 1/5th, 1/8th, 1/10th crawler and monster.

W50-360° Specs
Torque(6.0V): 35.0 kg-cm ( 486.1 oz/in)
Torque(7.4V): 45.0 kg-cm ( 625.0 oz/in)
Torque(8.4V): 50.0 kg-cm ( 694.4 oz/in)
Speed: 1.3 sec/360° (6.0V)│1.0 sec/360° (7.4V)│
Speed: 0.9 sec/360° (8.4V)
Operating Voltage: 6.0 ~ 8.4V DC Volts
Weight: 80 g (2.82 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Coreless Motor
Gear Type: Steel
Operating Temperature: -20℃~60℃
Working frequency: 1520μs / 333hz
Size: 40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)

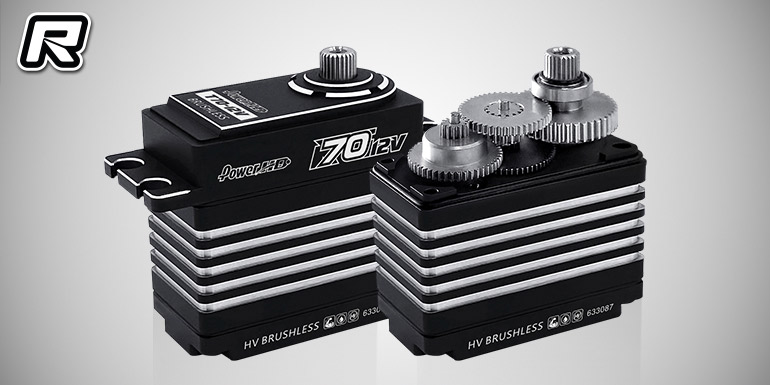

T70-12V Specs
Torque(8.4V): 50.0 kg-cm / (694.4 oz/in)
Torque(11V): 60.0 kg-cm / (833.2 oz/in)
Torque(12V): 75.0 kg-cm / (1041.6 oz/in)
Speed: 0.18 sec (8.4V) │ 0.12 sec (11V)
Speed: 0.10 sec (12V)
Operating Voltage: 8.4 ~ 12 DC Volts
Weight: 83 g (2.93 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Brushless Motor
Gear Type: Steel
Operating Temperature: -20℃~60℃
Working frequence: 1520μs / 333hz
Size: 40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)

Source: Power HD [chd.hk]
