December 12, 2022

PowerStar PM-1805A/M/X touring car servos

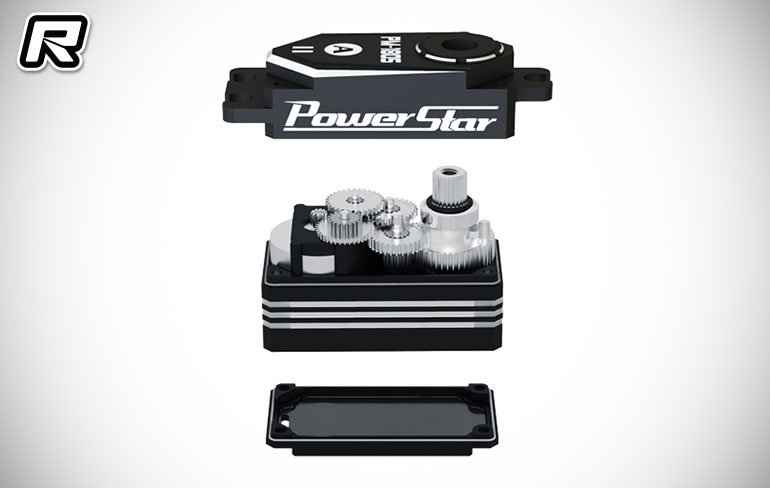

Following the release of its PM-1805W digital servo last year. PowerStar has added three new options of the waterproof low profile servo that are specific to different models of touring cars.  Each option, covering Awesomatix A800, Mugen MTC 2 & Xray X4, features a CNC machined housing case with heat sink for the fit of each of the 1:10 electric touring car offerings.   Protected by a IP65 waterproof design inside the high performance servo is a brushless motor that offers up to 18kg of torque at 8.4V.  Weighing 58g, the servo gears are made from high precision stainless steel teeth.

Model Options
PM-1805A for Awesomatix A800

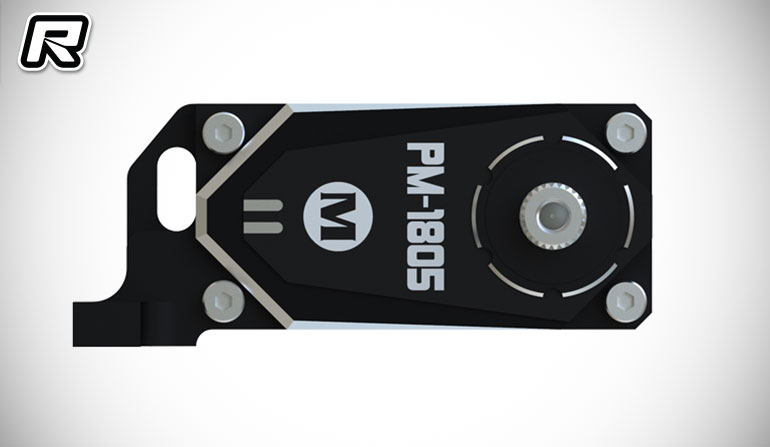

PM-1805M for Mugen MTC 2

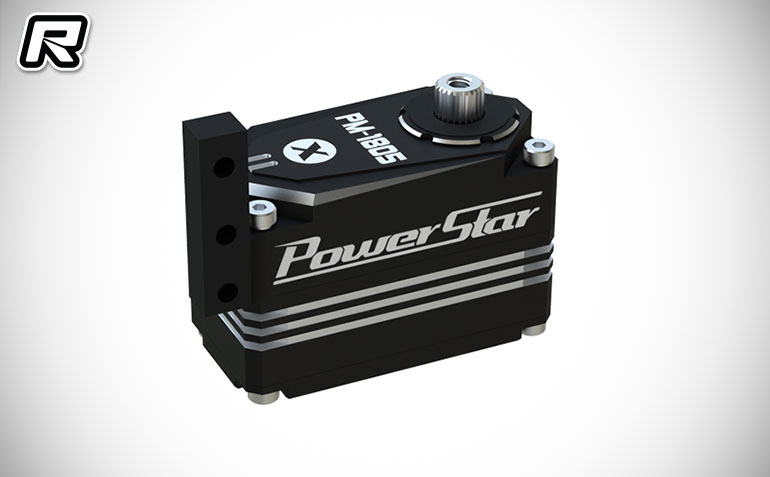

PM-1805X for Xray X4

Specifications:
Torque(6V): 15.0 kg-cm /208 oz-in
Torque(7.4V): 17.0 kg-cm /236 oz-in
Torque(8.4V): 18.0 kg-cm /250 oz-in
Speed: 0.065sec (6.0V) │0.06 sec(7.4V)│0.05 sec(8.4V)
Operating Voltage:6.0 ~ 8.4V
Weight: 58g ( no including accessory)
Bearing Type:Metal Bearing
Case: All Aluminum Shell
Motor Type:Brushless
Gear Type:Stainless Steel
Waterproof:IP65
Operating Temperature:-20℃~60℃
Working Frequency:1520μs / 333hz

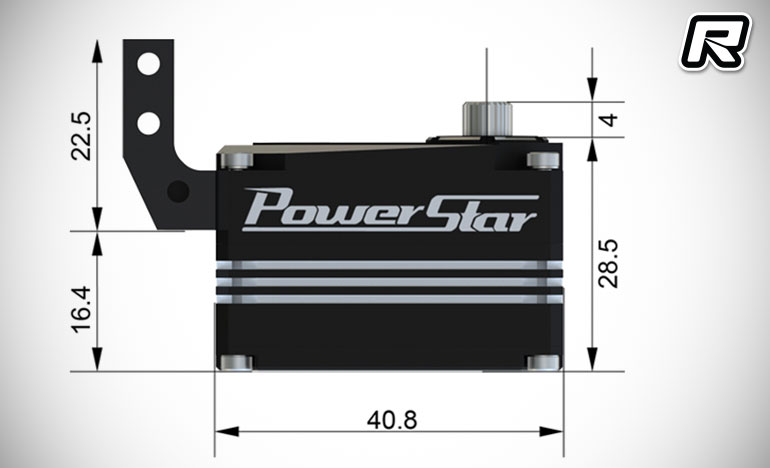

Size:40.8 x 20.2 x 27.6 mm
Wire gauge:#22 AWG
Wire Length:70mm

Source: PowerStar [powerstar-racing.com]
