December 16, 2022

Schumacher CAT L1R

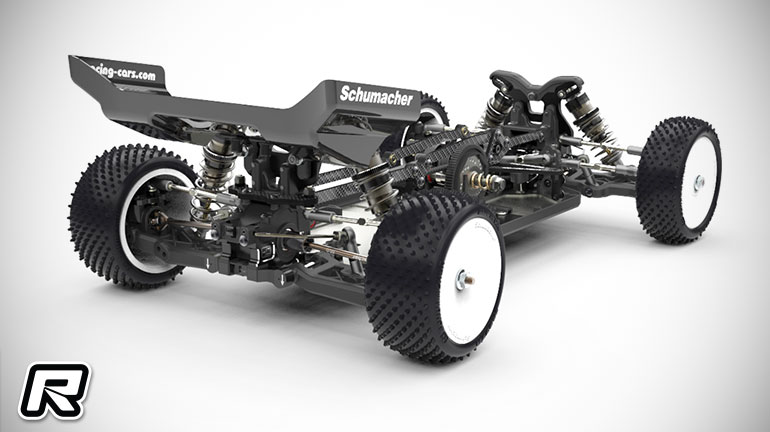

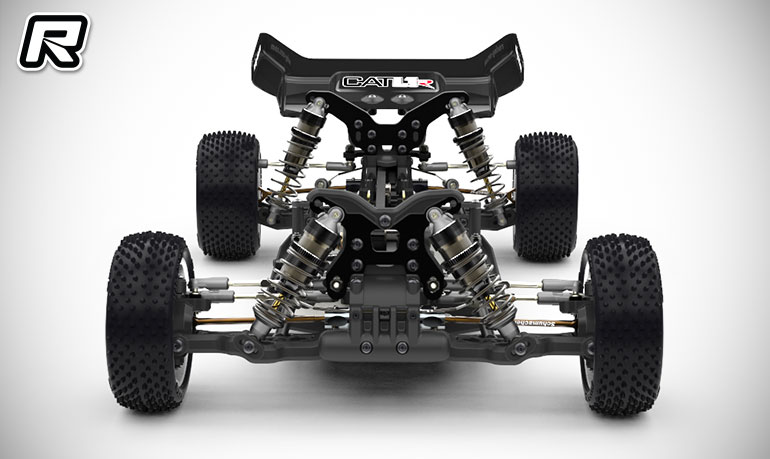

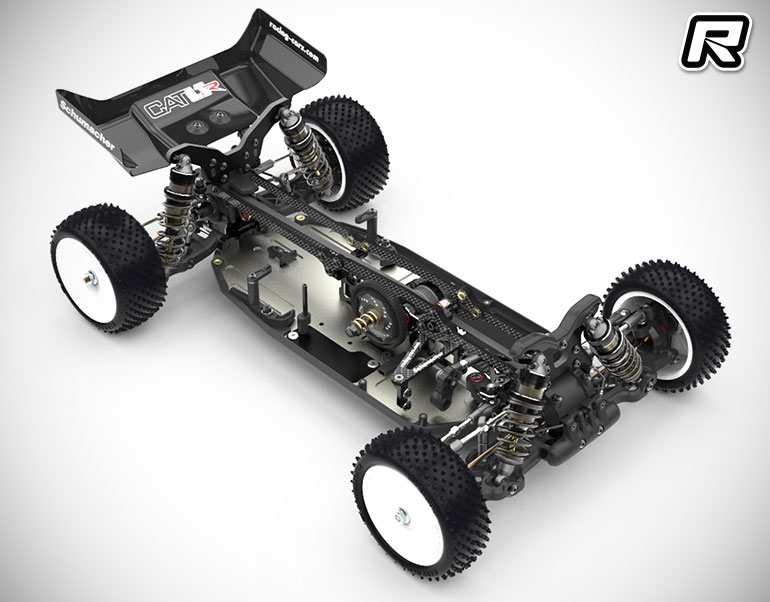

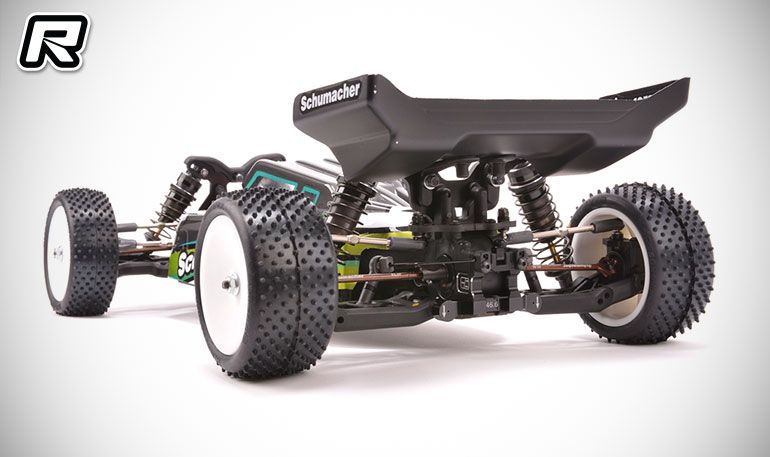

Iconic British brand Schumacher has released a new 1:10 4WD Competition Off Road buggy, the CAT L1R. The new kit brings all the latest developments from the Schumacher international racing team, to make another sensational 4WD buggy.  The L1R features improved suspension geometry, lighter weight, better durability, and a new JConcepts bodyshell.  The L1 series of buggies have already won the European EOS championship, British BRCA national championship, and the USA ROAR carpet nationals.  In prototype form, the CAT L1R has recently achieved some great results including the 2022 British National Championship title, the German National title 2022 along with title success at the Florida Carpet Championship and US Carpet Off Road Championship.

New – Front hub carriers with screw on steering plates, allows adjustability to suite all track conditions.

New – Layshaft and slipper plates with M4 layshaft Nut. Lightweight, twin pad slipper clutch with Ultra Fine adjustment spring. The new drive interface for the plates and gears allows more true/concentric running and improves the efficiency

New – Rear suspension geometry for more stability and improved rear traction. This new geometry keeps the car flatter in the turn while maintaining its grip through the corner.

New – Wider suspension mounts.

New – Rear hub carrier with larger outer hub bearings and multi positional camber settings. 10 camber link positions on one plate with shims to adjust the vertical height

New – Longer rear U/J steel driveshafts.

New – Rear camber strap.

New – Hard anodised -1.5mm width, 12mm wheel hex.

New – Suspension pivots inserts for more accuracy and durability. Steel top hat bushes for longer lasting pivots and a greater span for the bearing area of the effective hinge pin length.

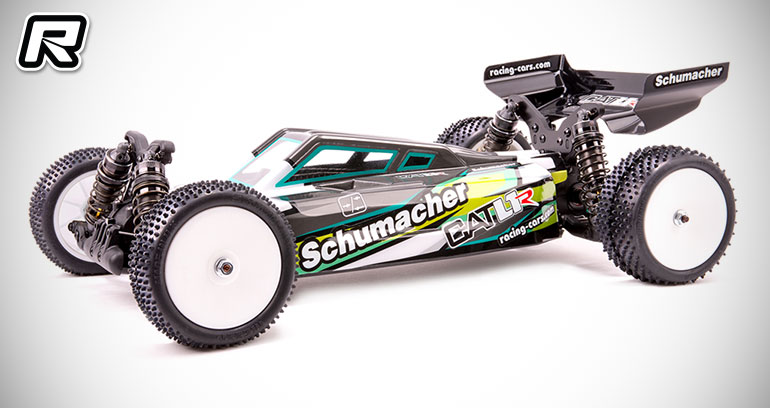

New – JConcepts bodyshell design. Popular well known style which offers a great balance of steering and stability.

New – Shorter front U/J driveshafts. More forward drive and reactiveness.

New – Longer front diff outputs.

New – Stronger front upper transmission housings.

New – Updated front wishbones.

New – Steering ball cup and 5.5mm ballstuds.

New – Front inner 3.5mm hingepin with raised position. For more forward drive and agility.

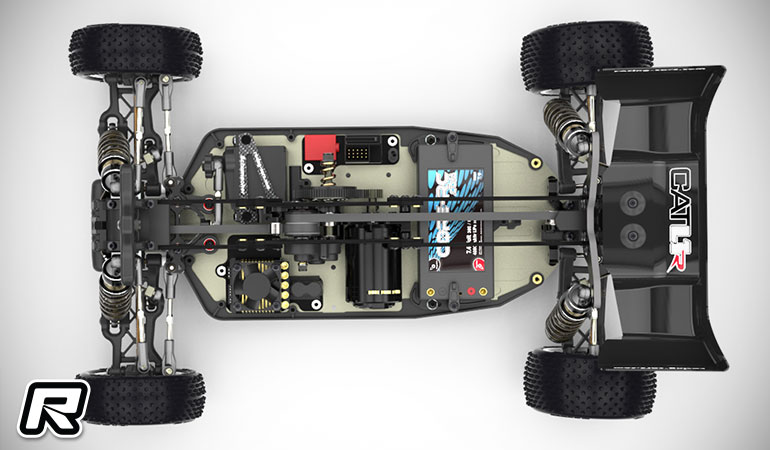

New – Low CofG pinned and centre mounted motor mount. That allows full height shorty lipos to fit in the new forward mounting position. The Lipo position is 9mm further forwards than the previous model.

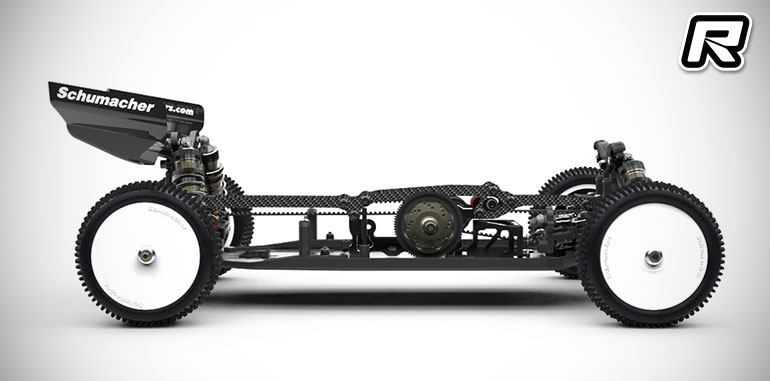

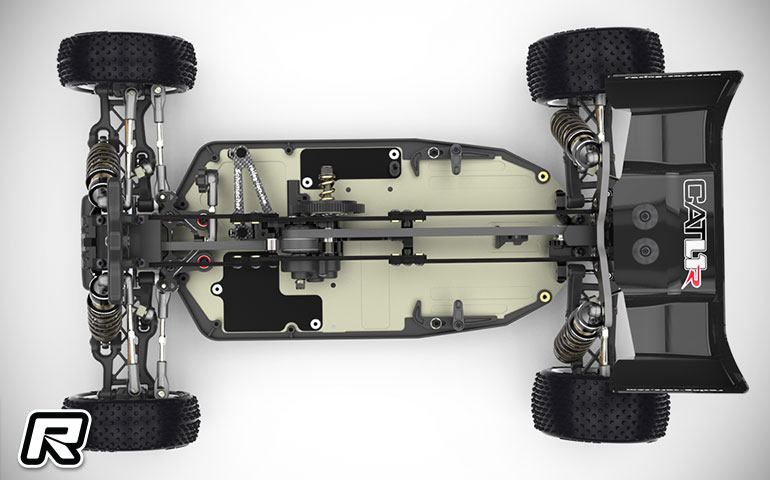

New – Hard anodised 2mm 7075-T6 alloy chassis. Pocketed for easy radio access with S2 removable trays. Sleak new shape to the rear of the light weight and flexible chassis which allows the car to transfer weight to the rear through corners without the chassis catching the track.

New – Moulded composite side pods. Allowing the flex to remain with these soft high quality moulding

New – Easy access LiPo mounting with further forward positioning.

New – 3 piece top decks.

New – Longer rear shock shaft.

New – Rear 1.8mm Anti-roll bar to match the new geometry, included.

New – Gear diff pulley housing with thicker planetary gear shim for better durability. Improve efficiency of the diff in the run.

New – Moulded shock pistons and bushes.

New – ‘S2’ shock brackets. To suite the new front and rear geometry’s

Source: Schumacher [racing-cars.com]
