Team Associated RC10SC6.4 Team Kit

Another new 2023 kit release from Team Associated is their latest 1:10 2WD Shortcourse Track, the RC10SC6.4 Team Kit.  It shares key components with the RC10T6.4, RC10B6.4, and RC10B74.2 Team Kits, making it easier than ever to run multiple classes at the same time. Suspension and jumping goes through the large- volume 13mm big bore shocks with new truck springs.  The new chassis design is a short course truck version of the RC10B6.4 buggy design and gets a new ballstud mount and top plate system with an angled steering for improved consistency.  On top of that, racers can tune the steering height, axle trail, and caster inserts for tuning the front end feel.  The rear end grip is improved with the optional C and D mounts and 92.5mm CVA bones included in the kit.  Suspension linkage rides on the new 3.5mm diameter rod ends and turnbuckles.

New features for RC10SC6.4

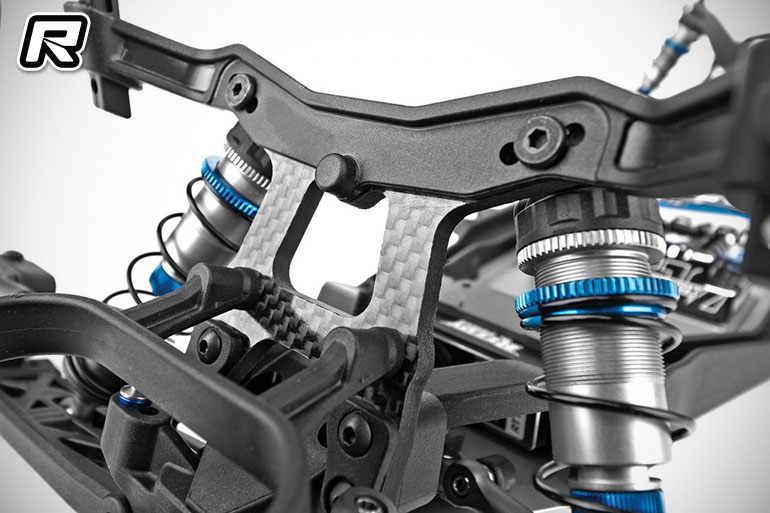

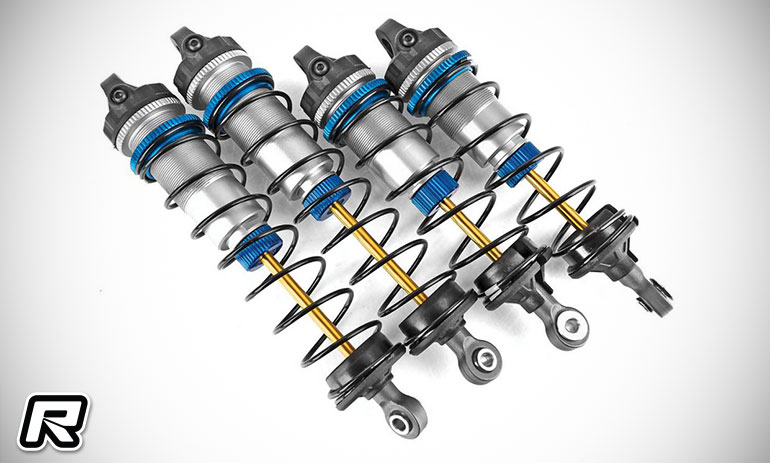

– New 13mm big bore threaded aluminium shocks and springs with machined shock pistons for improved bump and jump handling
– 13mm machined shock pistons, 2×1.6mm front and 2×1.8mm rear
– New front ballstud mount and top plate with angled steering system for improved steering consistency
– New 3.5mm heavy-duty ball cups and turnbuckles for maximum durability
– Updated rear suspension with wider C and D mounts from the RC10B6.4 series
– New longer 92.5mm CVA driveshafts for more rear grip
– 7.0mm blue aluminium rear clamping hexes with laser etching
– New chassis side rails with the RC10B6.4 fan mount system

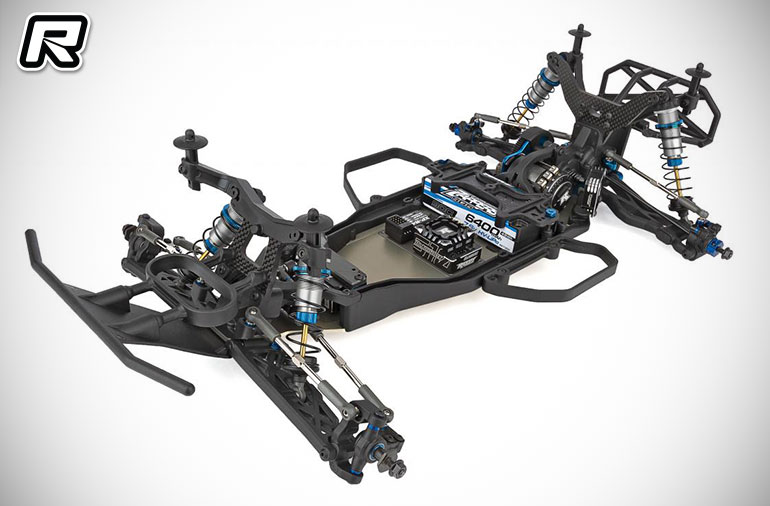

– New short course truck length aluminium chassis with 22.5° kick-up to complement updated front-end geometry and with new shape to reduce chassis scrub with the track surface
– 20°, 22.5°, and 25° molded bulkheads included for a complete range of caster and kickup options
– B6.4 adjustable height steering bellcrank and rack system for optimised bumpsteer at all ride heights and caster angles

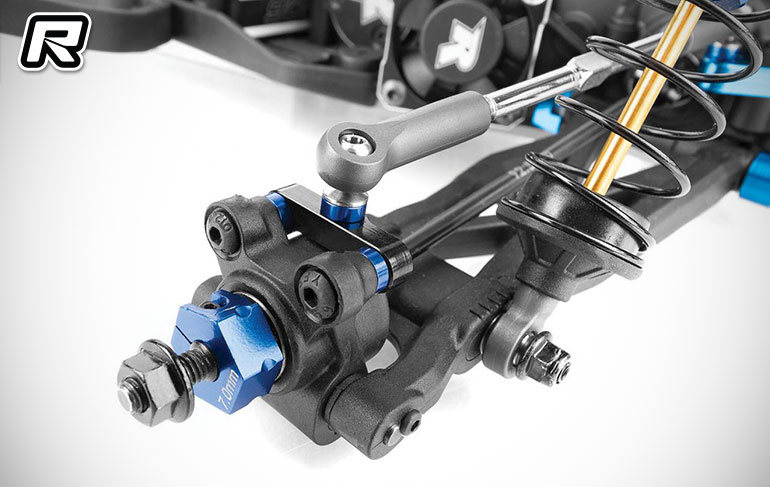

– B6.4 -1mm kingpin offset steering and caster block set for smoother and more predictable steering through the entire wheel throw

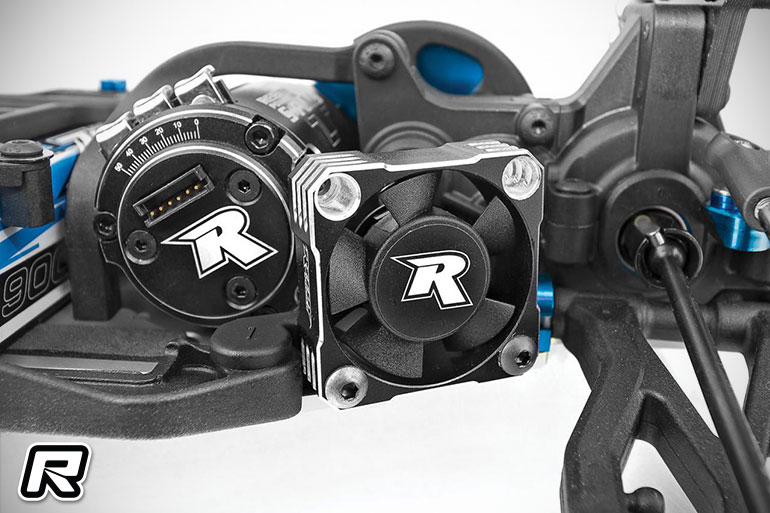

– Aluminium RC10B6.4 ESC mounting tray shifted forward in the chassis and with a wider footprint to fit electronics, resulting in a weight bias moved further forward
– Factory Team RC10B6.4 11g aluminium ESC tray

Source: Associated [associatedelectrics.com]
