Smart Starter GT Version

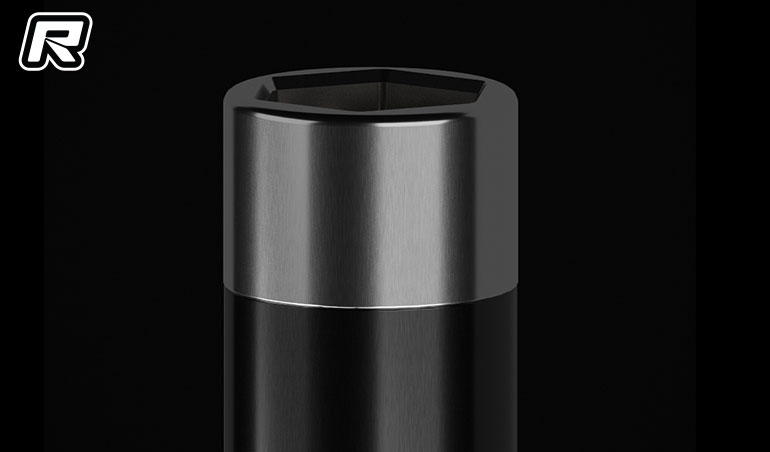

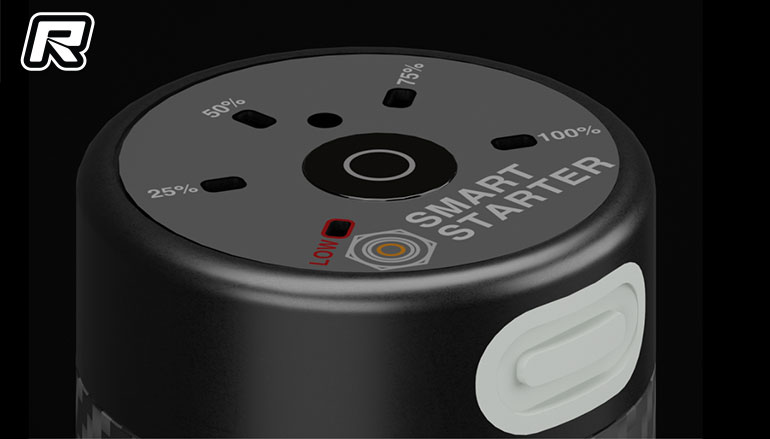

Smart Workshop has released a new version of their Smart Starter intend for 1:8 GT use.  The extended front tips are capable of accommodating GT models with a higher body shell height.  Like the original glow plug starter, it is a high efficiency high frequency synchronous step down DC/DC regulator capable of delivering up to 6A output current. It integrates main switch and synchronous switch with very low RDS (on) to minimise the conduction loss, Internal Soft-start Limits the Inrush Current.  It uses a replaceable 3.7V 1800mAh Lithium Iron Rechargeable Battery (Size 18500) with JST connector with build in protection board to prevent over charge and discharge.  One touch button to show five levels of the battery capacity. Red and Green indictor to show the charging progress.  Changeable Inner hexagon contactor use direct plug-in design without locking, user can insert or remove fast and smoothly during operating. In order to reduce the phenomenon of flashover and oxidation, Inner spring power contactor come with gold plated and both contactors make by 100% copper to minimise internal resistance.

Source: Smart Workshop [smart-workshop.net]
