AGFRC 11.5KG Smart Winch Servo

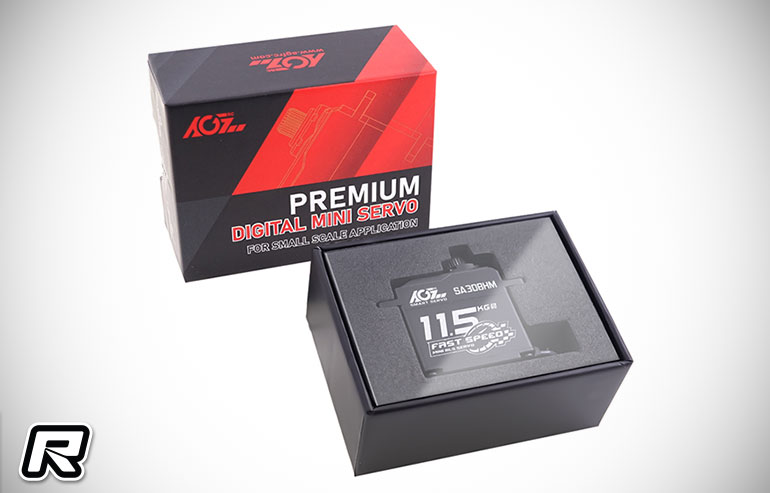

New from AGFRC is their 11.5KG Smart Winch Servo specially designed for 1:12 Pan cars.  Always keen on innovation, and not just a producer of servos, but high performance servos for each specific fields after long time testing, the SA30BHM 11.5KG 0.060s 8.4V HV smart winch digital programmable brushless servo is now ready.  The SA30BHM weight only 32g with fully CNC Aluminium case making it very strong and durable.  In terms of speed, the SA30BHM is 0.060s fast, with smoothly operation from double ball bearings.  Coming with 25T spline titanium gears they provide high strength and are durable to wear.  The SA30BHM also supports the Futaba SR and Sanwa SR, and it can be done by the AGFRC program software.

Specs of SA30BHM
Working voltage: 4.8-8.4V
Operation Speed: 0.100sec/ 60° @ 4.8V
Operation Speed: 0.082sec/60° @ 6.0V
Operation Speed: 0.068sec/60° @ 7.4V
Operation Speed: 0.060sec/60° @ 8.4V
Stall Torque: 8.0 kg-cm (111 oz-in) @ 4.8V
Stall Torque: 9.0 kg-cm (125 oz-in) @ 6.0V
Stall Torque: 10.50 kg-cm (145 oz-in) @ 7.4V
Stall Torque: 11.50 kg-cm (159 oz-in) @ 8.4V
Servo dimension: 29*14*29mm
Wire: TYU 180mm / 26AWG

Source: AGFRC [agfrc.com]
