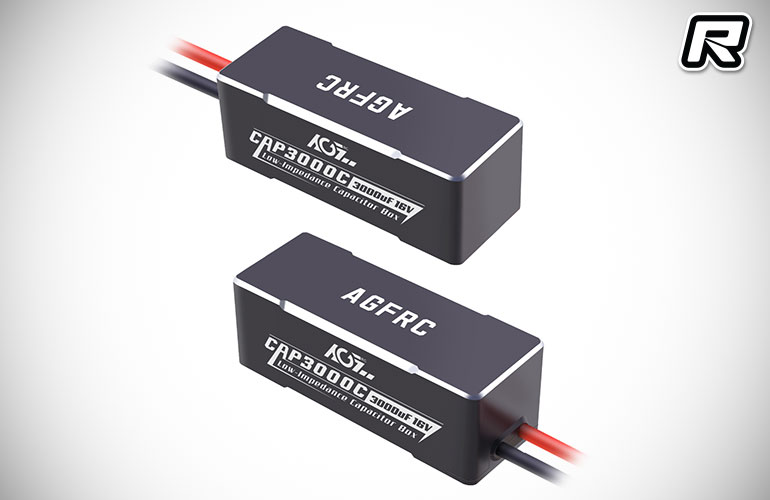

AGFRC Polarised Capacitor Box

AGFRC has released a new polarised capacitor box with fully CNC aluminium case designed for better safety and neat & easy installation. 16.0V HV capable so it can be used with high-voltage batteries, the 0.003Ω low internal resistance give it good filtering effect.  With 3000uF high capacity, it is a strong durability capacitor box suitable for 1:8, 1:10, 1:12 such as monster truck, crawler, offroad and onroad.  Due to its polarised feature, users should be cautious that the proper cord connection for positive and negative terminal.  The power voltage of the ESC should be lower than the max voltage of the capacitor pack.

Features
High Performance Super Power Capacitor Box
Fast Cooling Aluminium Protection Case
Low impedance & Low temperature
High-Frequency
3000uF High Capacity
Compatible With 16V High Voltage
Easy To Mount On Your Chassis

Specification
Model Name: CAP3000C

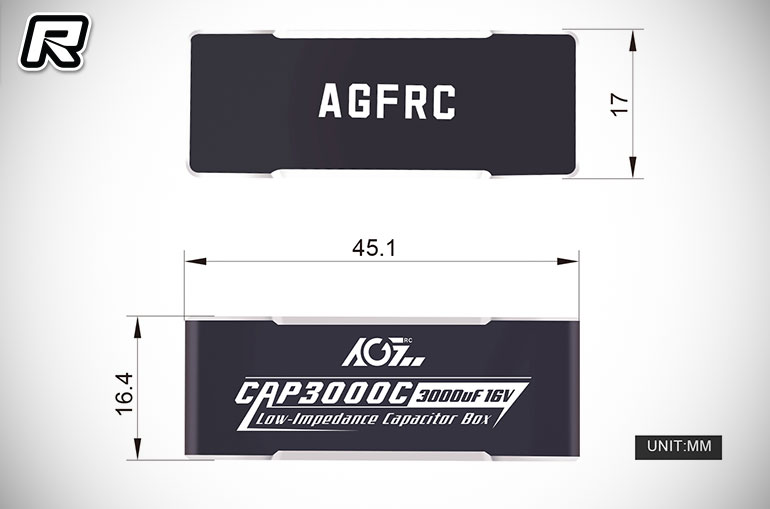

Dimension: 45*17*16.4mm

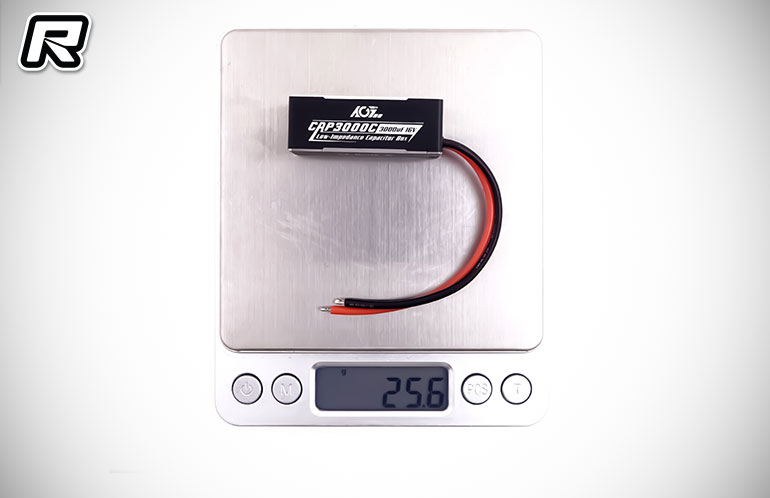

Weight: 26g
Capacity: 3000uF
Max Voltage: DC 16V
Resistance: 0.003Ω
Working Temp: -30~ 60℃/ -22 ~140℉

Source: AGFRC [agfrc.com]
