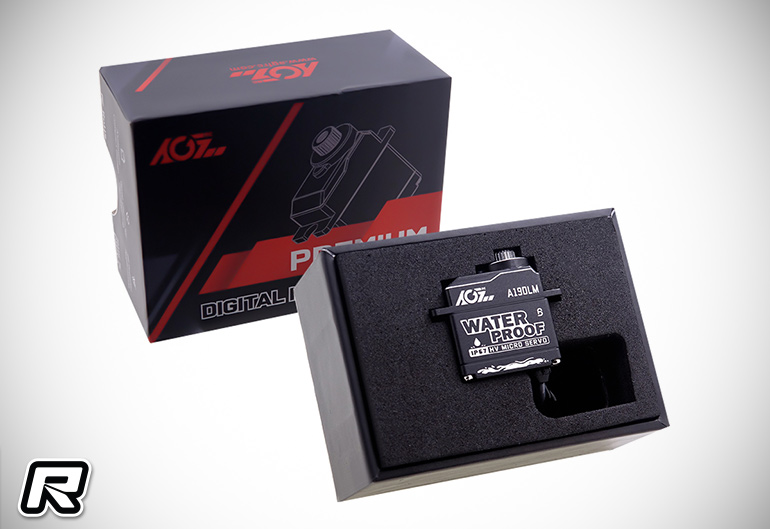

AGFRC Waterproof Alu Case Micro Digital Servo

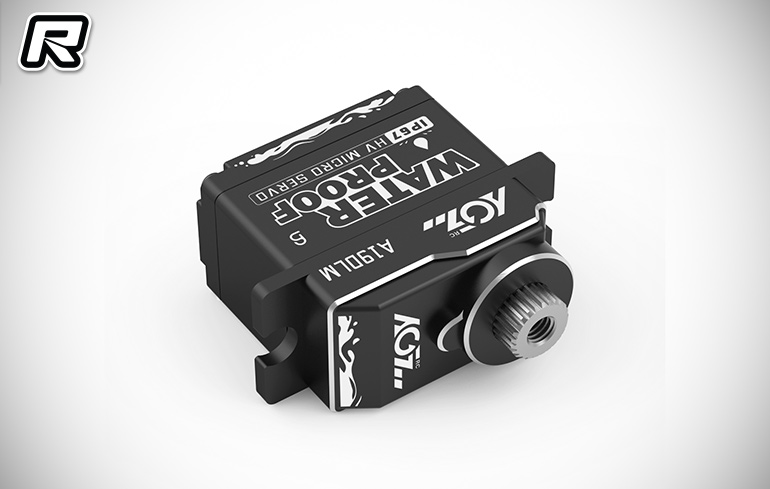

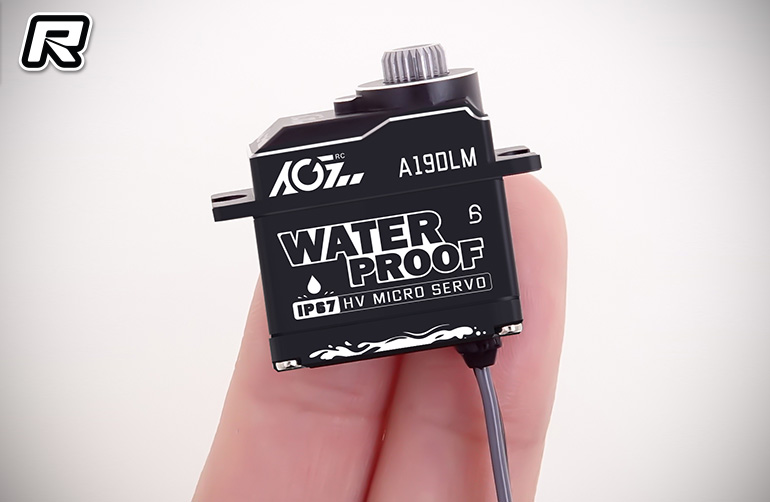

Servo manufacturer AGFRC has released a new full aluminium waterproof standard metal 25T spline sub micro servo, the A19DLM.  After repeated testing and modifications, this tiny servo gets upgraded materials and workmanship to created a high end digital micro servo.  With robust metal structure and gear set, this servo can deliver 4KG.CM (55.6oz-in) super high torque and 0.088sec/60°speed at 8.4V even in this compact size.  Easy to install in limit space for lock dig shift usage in different scale model such as 1:18 , 1:10, 1:8 etc.  Programmable feature also allow for different users to find the suitable data for their applications.  The A19DLM servo is the perfect upgrade for your Traxxas TRX-4 or TRX-6 Crawler, Axial SCX10 III, Capra, or 1:18 TRX4M and Absima 1:10 or 1:8 EP Crawlers.

Features
Excellent Heat Dissipation With Aluminum Case
Equipped with the Industry Standard 25-tooth Spline
Optimised for Shift Dig Steering Usage
4.8-8.4V Wide Voltage Application
Waterproof Design Case

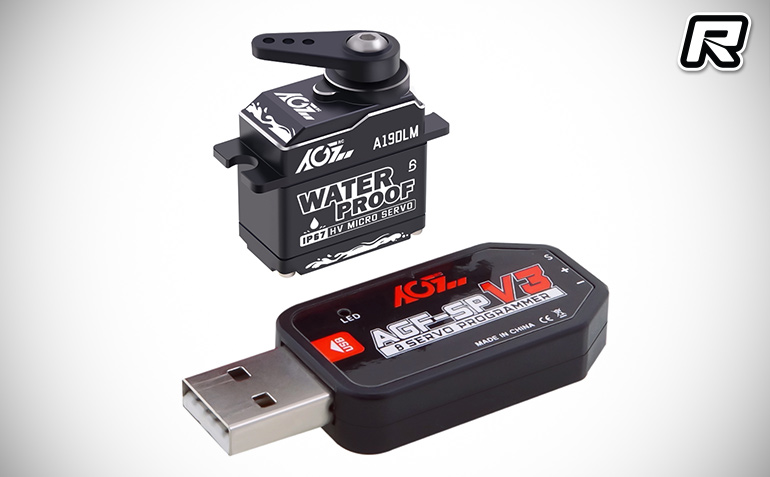

Parameter Programmable
Wide Application for different Scale Models

Specification
Model Name: A19DLM
Operating Voltage: 4.8-8.4V
Operating speed:
0.130sec/ 60° @ 4.8V
0.110sec/60° @ 6.0V
0.095sec/60° @ 7.4V
0.088sec/60° @ 8.4V
Stall Torque:
2.2 kg-cm (30 oz-in) @ 4.8V
3.0 kg-cm (41 oz-in) @ 6.0V
3.5 kg-cm (48 oz-in) @ 7.4V
4.0 kg-cm (55 oz-in) @ 8.4V
Gear: Titanium
Motor: DC
Size: 22.9*12.8*22mm
Weight: 19g
Waterproof Type: Waterproof IP67

Source: AGFRC [agfrc.com]
